This article is a work in progress.
Prey
Builds
Prey v0.95
Timestamp: 447CFC05 (Wed May 31 02:14:29 2006)
g_version: Prey 1.0.95-release win-x86 May 30 2006 20:58:10
Console: Prey 0.2.95 May 30 2006 21:14:05
Prey v0.99
Timestamp: 44851779 (Tue Jun 06 05:49:45 2006)
g_version: Prey 0.2.99 win-x86 Jun 6 2006 00:49:30
Console: Prey 0.2.99 Jun 6 2006 00:49:30
Prey v1.0
Timestamp: 448A5C3A (Sat Jun 10 05:44:26 2006)
g_version: Prey 1.0.103-release win-x86 Jun 10 00:41:22
Console: Prey 1.0.103 Jun 10 2006 00:44:11
Prey v1.1
Timestamp: 44E22501 (Tue Aug 15 19:48:17 2006)
g_version: Prey 1.1.111-release win-x86 Aug 15 2006 14:45:11
Console: Prey 1.1.111 Aug 15 2006 14:48:02
Prey v1.2
Timestamp: 450F158D (Mon Sep 18 21:54:21 2006)
g_version: Prey 1.0.116-release win-x86 Sep 18 2006 16:51:12
Console: Prey 1.2.116 Sep 18 2006 16:54:05
Prey v1.3
Timestamp: 45A6AA1A (Thu Jan 11 21:20:26 2007)
g_version: Prey 1.0.116-release win-x86 Sep 18 2006 16:51:12
Console: Prey 1.3.117 Jan 11 2007 15:20:10
Prey v1.4
Timestamp: 47437C7A (Wed Nov 21 00:31:54 2007)
g_version: Prey 1.0.117-release win-x86 Sep 20 2007 10:59:54
Console: Prey 1.4.119 Nov 20 2007 18:31:35
TO DO
- Check release(s) on Xbox 360.
- Prey: Evil for Zeebo. Digital only.

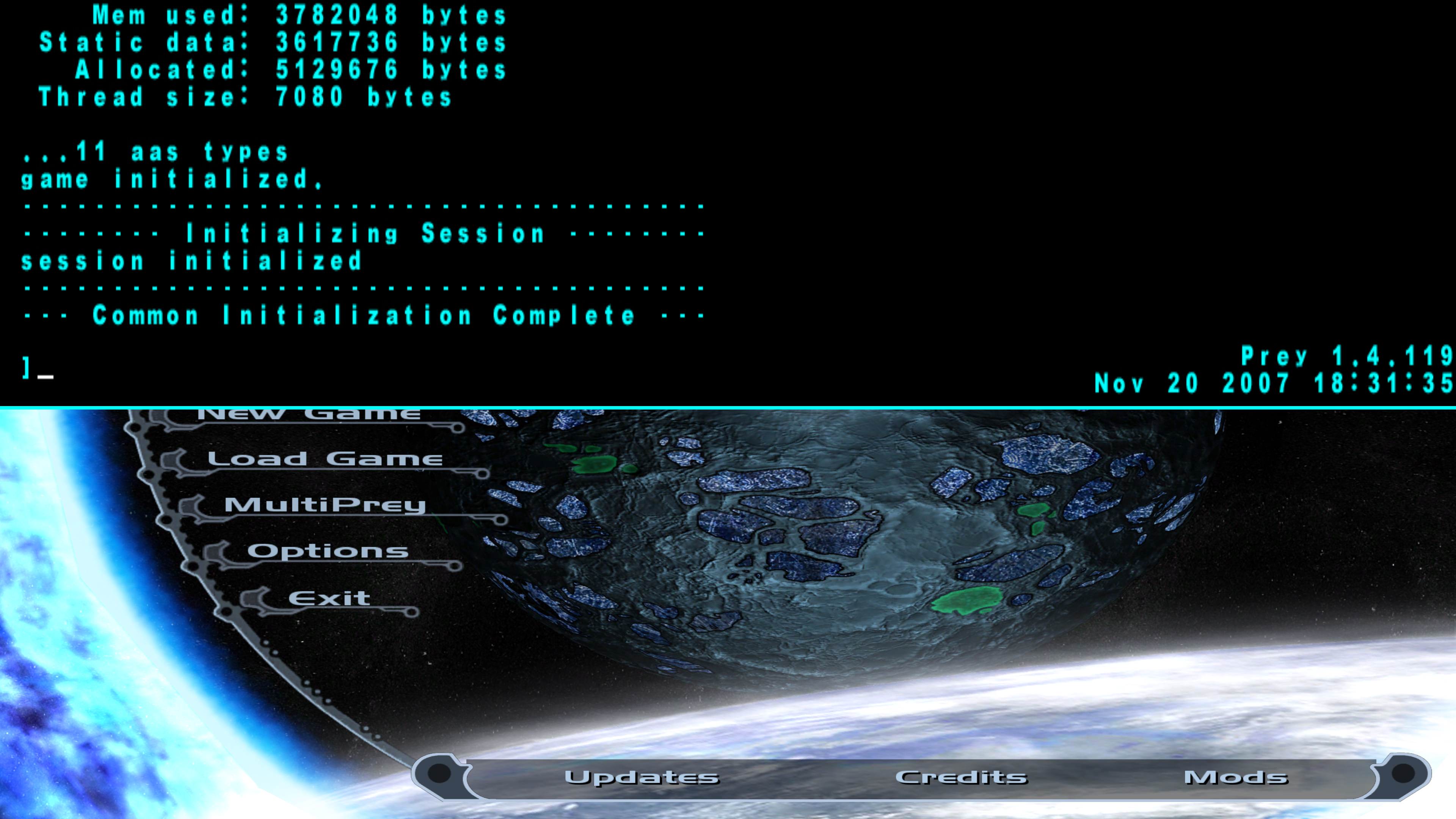

Console
For a full list of debug commands see the full console command list below.

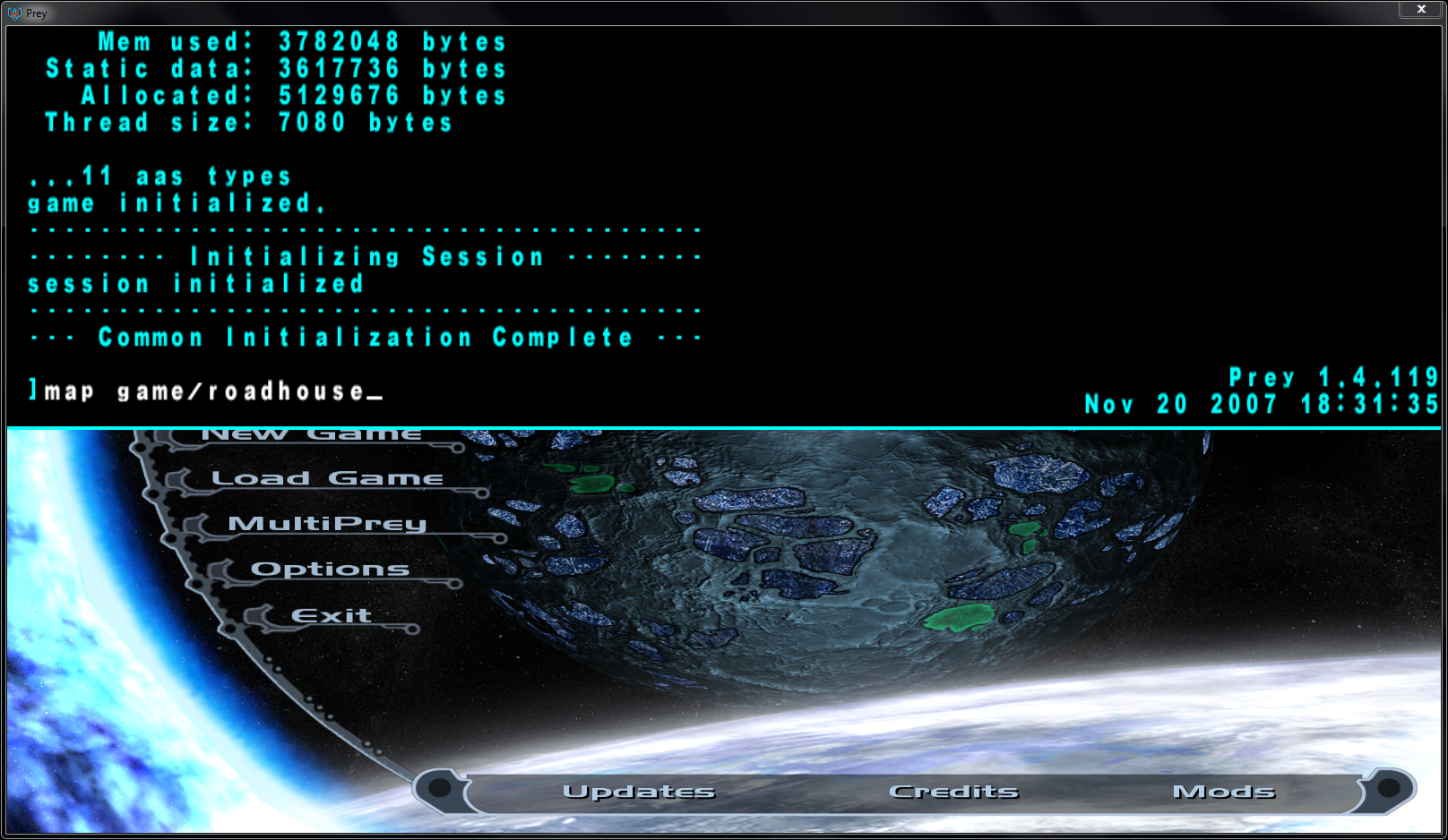

Fig. 1
Enabling the console
- preyconfig.cfg
seta com_allowConsole "1"
By default the console is accessed by pressing ALT+CTRL+TILDE, this will change it to just the tilde key.
No clip
- console command
noclip 1
0/1 = on/off
- preyconfig.cfg
bind "F3" "noclip"
No clip can also be by bound to a key in preyconfig.cfg.

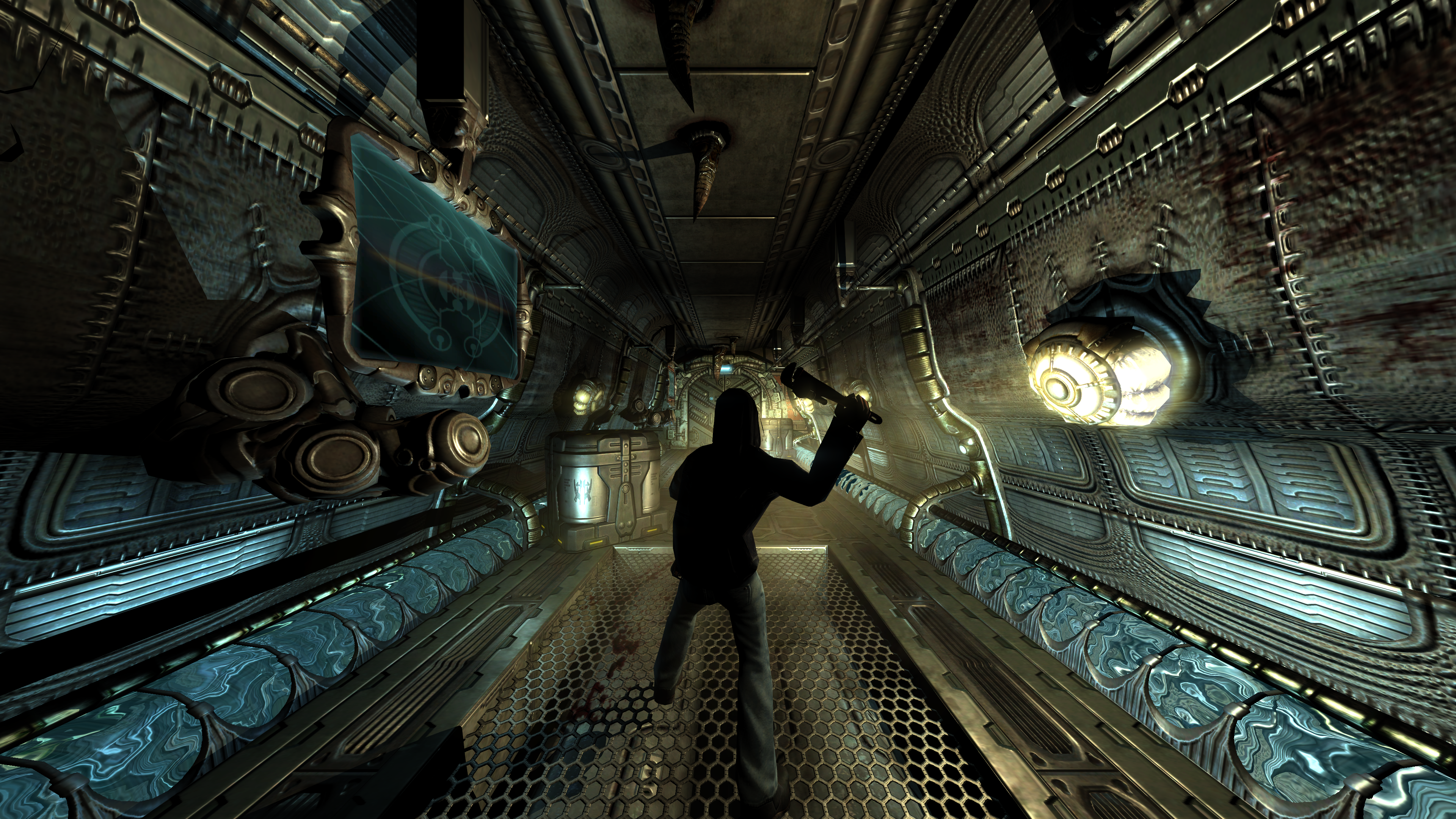

Third person view
- console command
pm_thirdperson 1
0/1 = on/off
- preyconfig.cfg
bind "F1" "pm_thirdperson 0" bind "F2" "pm_thirdperson 1"
Third person view can also be by bound to keys in preyconfig.cfg.
| console command | comment | ||
| pm_thirdPersonRange | camera distance from player in 3rd person | ||
| pm_thirdPersonHeight | height of camera from normal view height in 3rd person | ||
| pm_thirdPersonAngle | direction of camera from player in 3rd person in degrees (0 = behind player, 180 = in front | ||
| pm_thirdPersonClip | clip third person view into world space. | ||
| pm_thirdPersonDeath | enables third person view when player dies | ||
| pm_thirdPersonDeathMP | enables third person view when player dies in mp |
Additional configuration options for third person view.

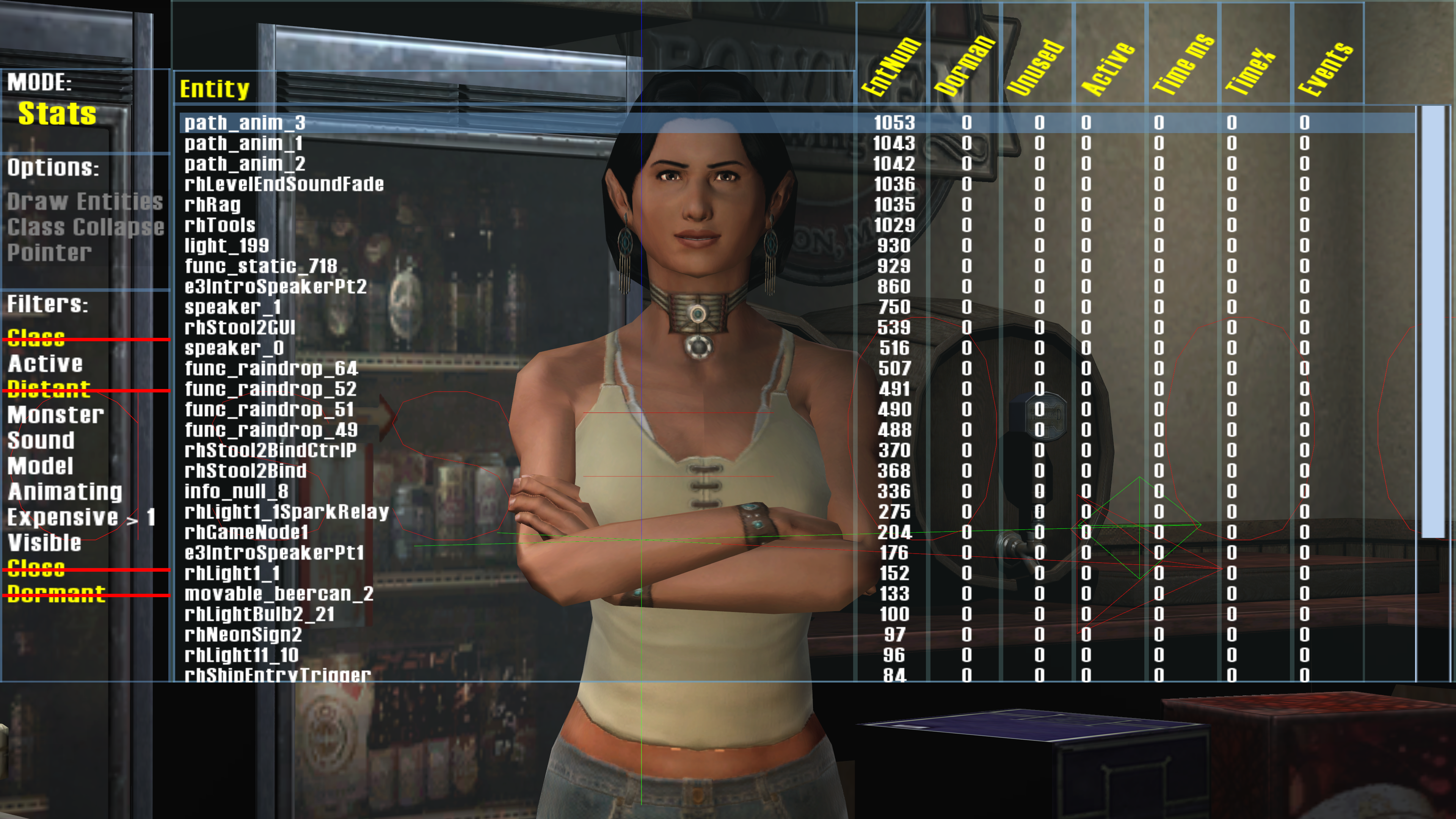

Debug
Debugger

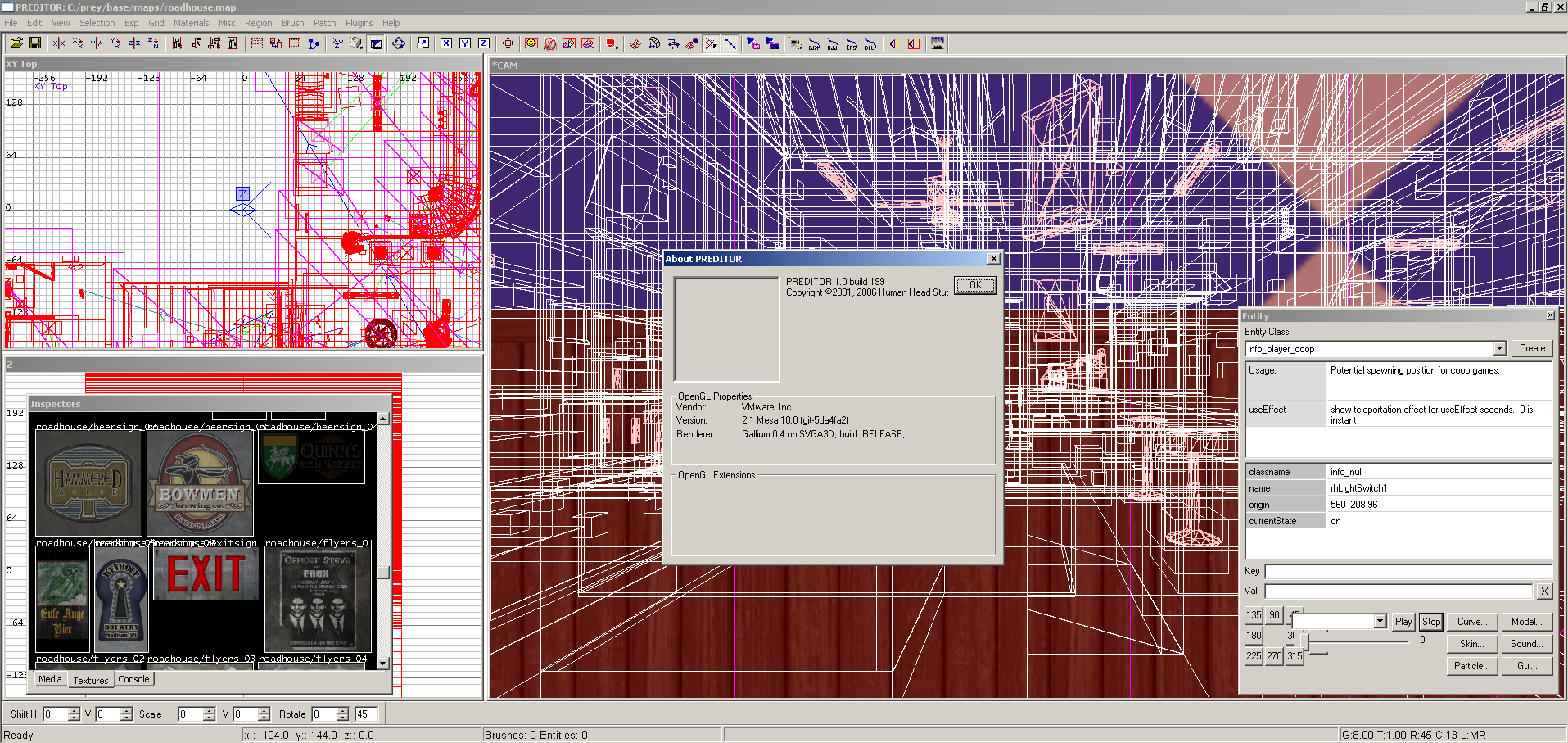

Editors
Launch editors in windowed mode.

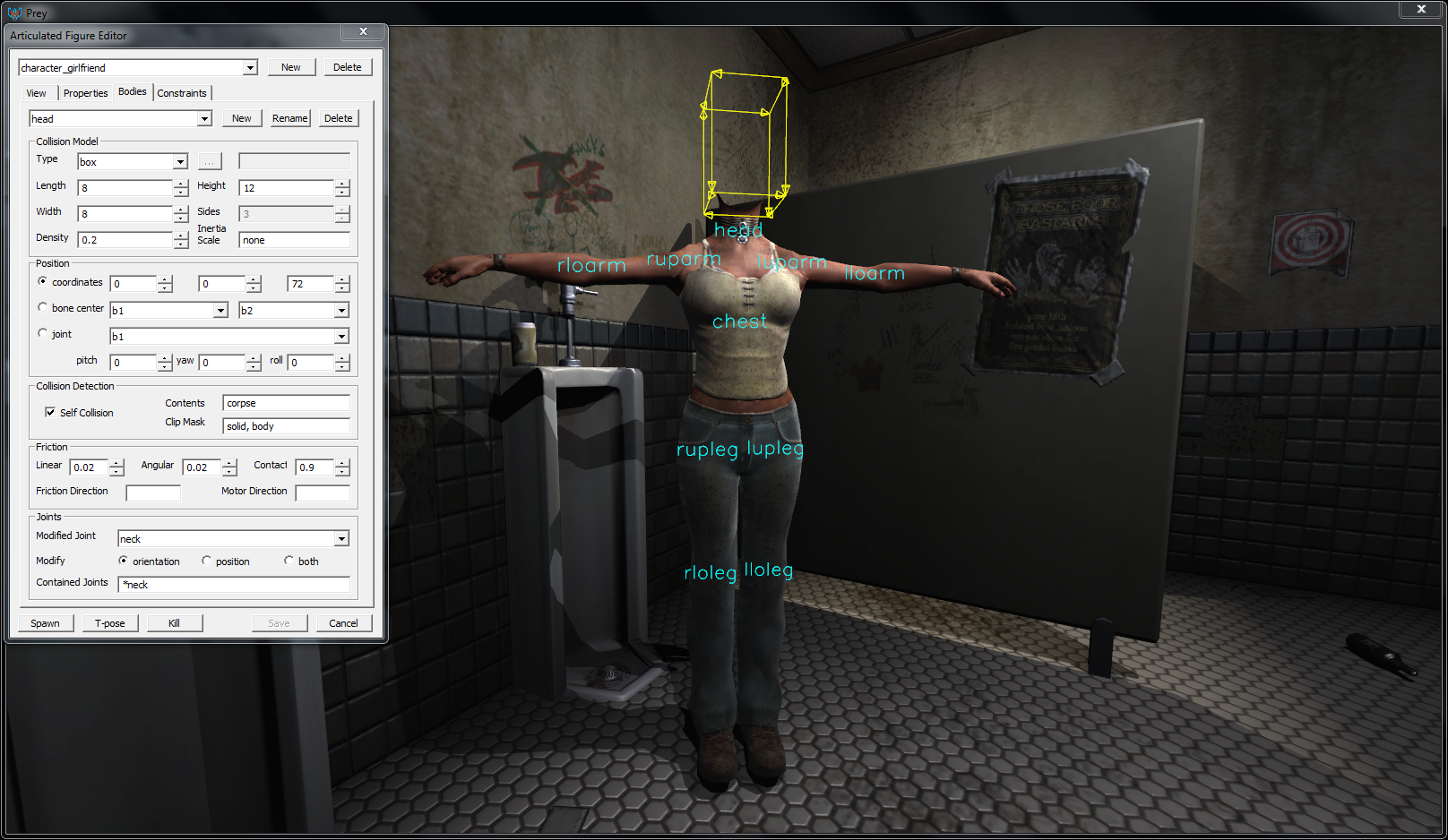

Articulated Figure Editor

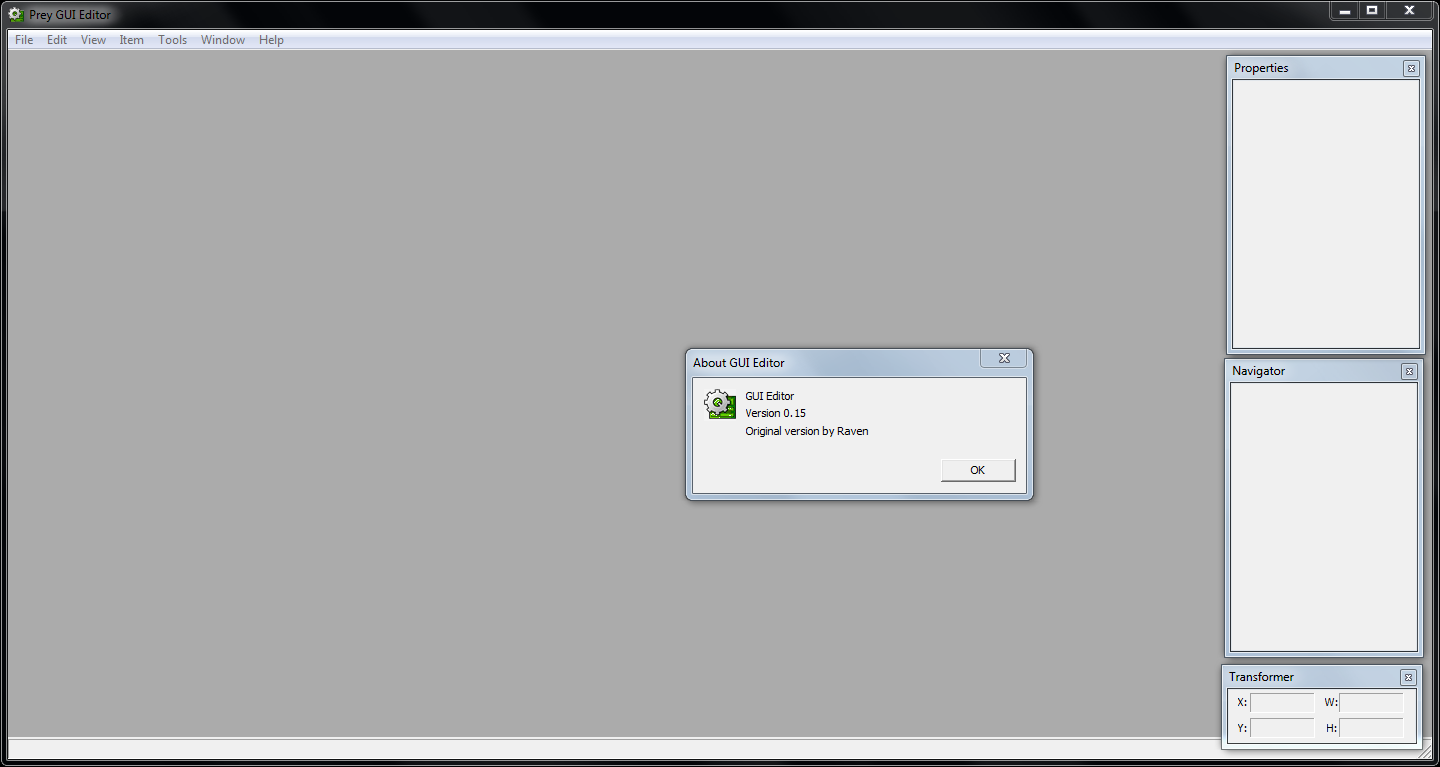

GUI Editor
Level Editor

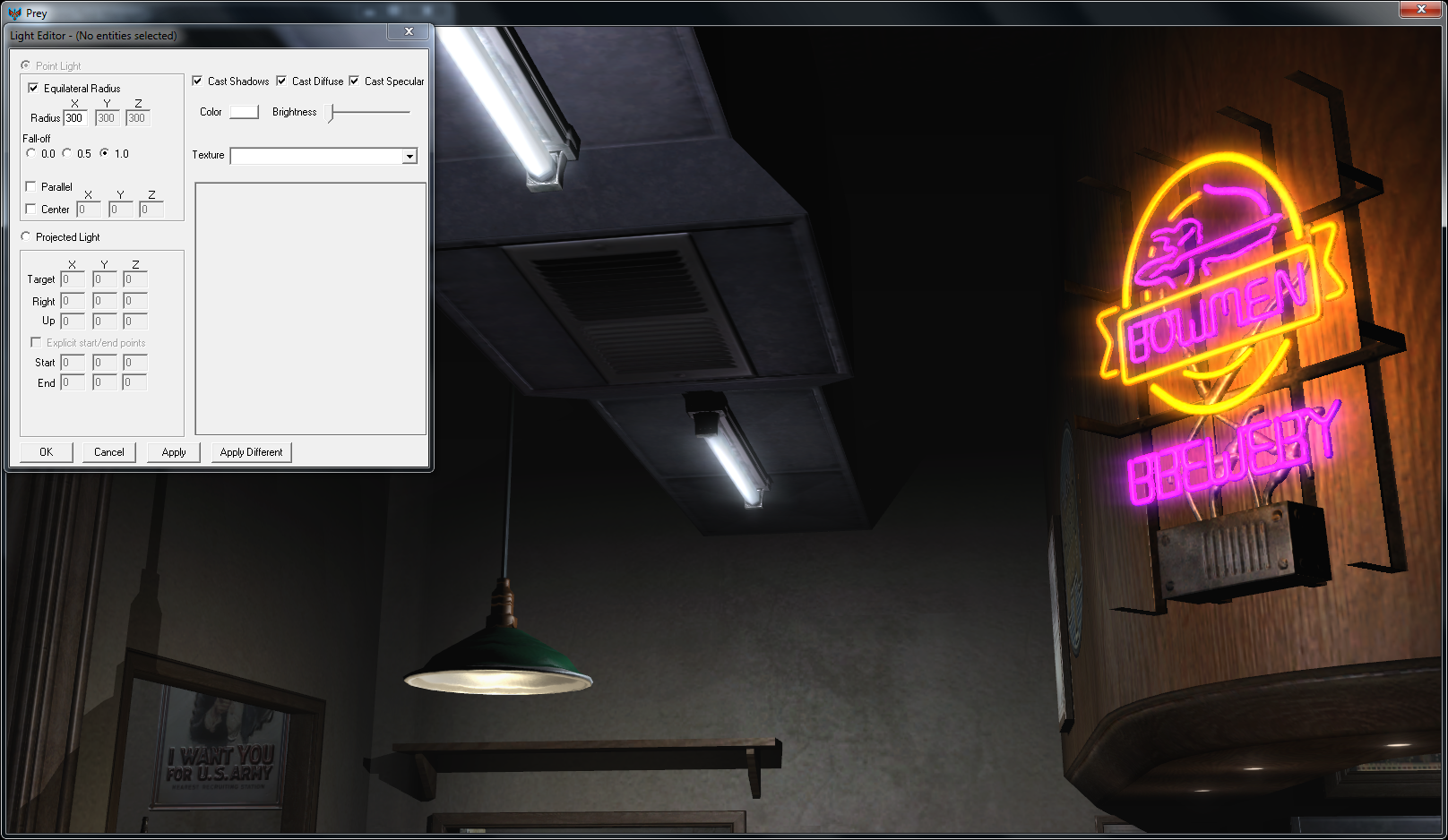

Light Editor

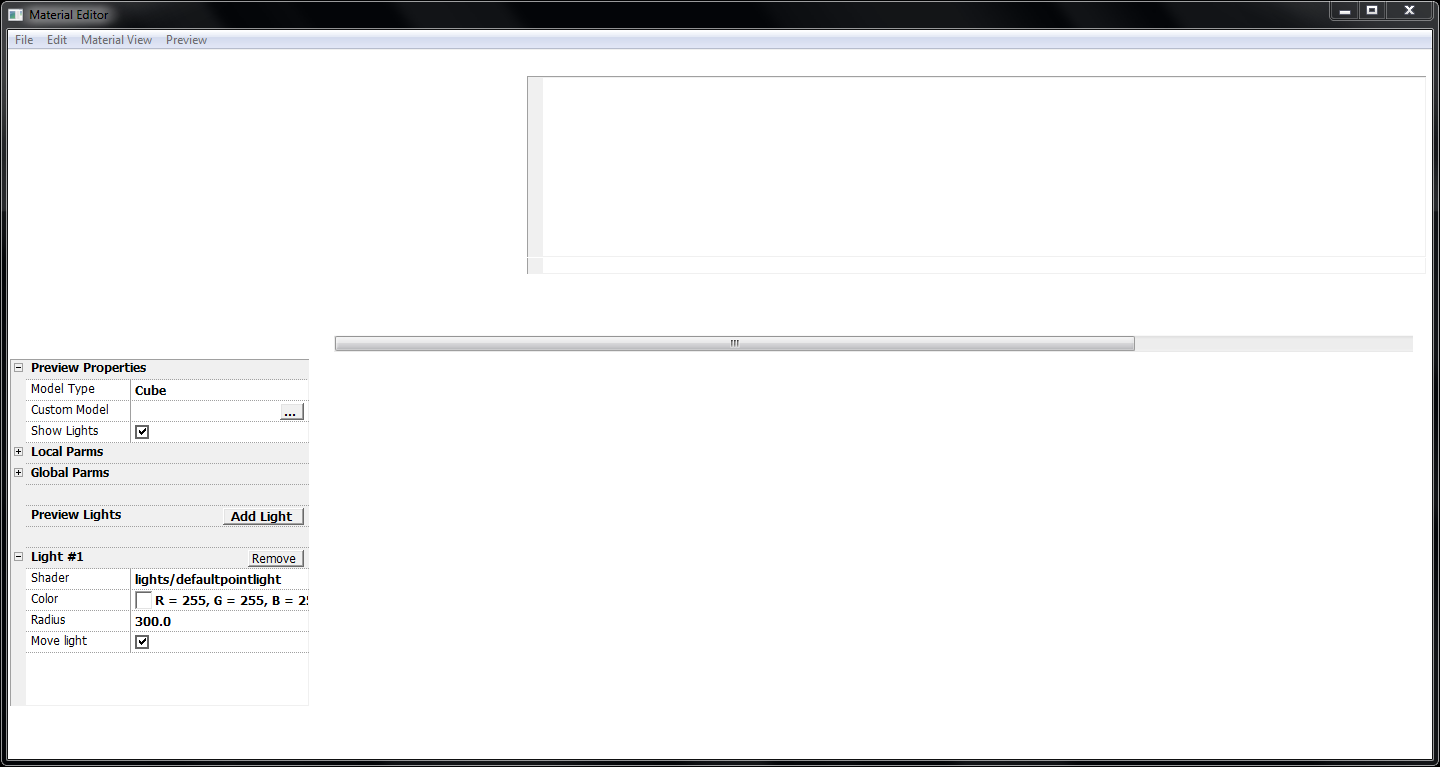

Material Editor

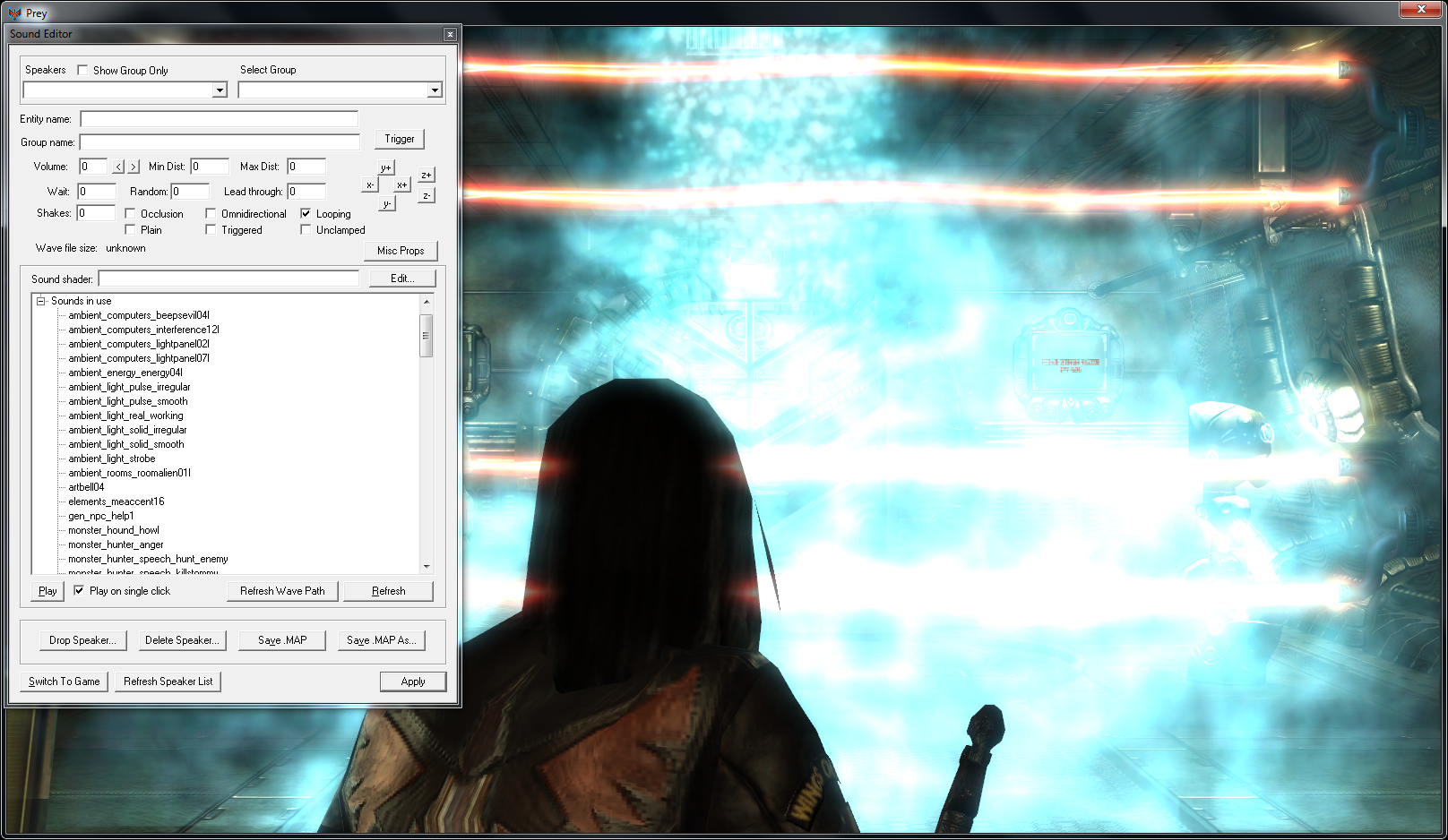

Sound Editor
Particle Editor
Script Editor

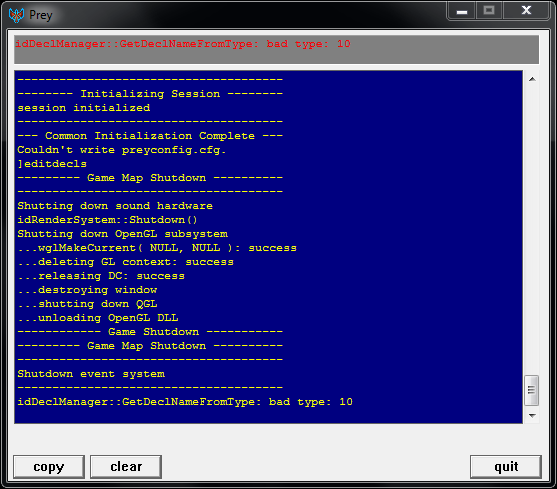

Declaration Editor
PDA Editor
Gameplay
TO DO
- Player commands (spawns/cheats)
Levels
Loading
- console command
map
Usage: map game/mapname
Loads a map.
- console command
devmap
Usage: devmap game/mapname
Loads a map in developer mode.
- console command
testmap
Usage: testmap game/mapname
Tests a map.
List
Singleplayer
| mapname | earliest | ||
| biolabsa | 0.2.99 | ||
| biolabsb | 0.2.99 | ||
| deathwalk1 | 0.2.95 | ||
| deathwalk2 | 0.2.99 | ||
| deathwalk3 | 0.2.99 | ||
| feedingtowera | 0.2.95 | ||
| feedingtowerb | 0.2.95 | ||
| feedingtowerc | 0.2.95 | ||
| feedingtowerd | 0.2.99 | ||
| girlfriendx | 0.2.99 | ||
| harvestera | 0.2.99 | ||
| harvesterb | 0.2.99 | ||
| keeperfortress | 0.2.99 | ||
| lotaa | 0.2.95 | ||
| lotab | 0.2.99 | ||
| lotad | 0.2.99 | ||
| roadhouse | 0.2.95 | ||
| salvage | 0.2.99 | ||
| salvageboss | 0.2.99 | ||
| shuttlea | 0.2.99 | ||
| shuttleb | 0.2.99 | ||
| spherebrain | 0.2.99 | ||
| spindlea | 0.2.99 | ||
| spindleb | 0.2.99 | ||
| superportal | 0.2.99 |
Multiplayer
| mapname | earliest | ||
| dmescher | 0.2.95 | ||
| dmescher2 | 0.2.99 | ||
| dmgravitylab_6 | 1.0.103 | ||
| dmplanes_4 | 1.0.103 | ||
| dmroadhouse | 0.2.99 | ||
| dmsalvagewalk | 0.2.95 | ||
| dmshuttle1 | 0.2.99 | ||
| dmshuttle2 | 0.2.99 | ||
| dmsphere | 0.2.99 | ||
| dmtopillogical_4 | 1.0.103 | ||
| dmtunnelrat_8 | 1.0.103 | ||
| dmwallwalk2 | 0.2.99 |
Tests
Several tests and test maps are listed in def/maps.def.
- maps.def
} mapDef mlong/forcefield { "snd_loadmusic" "mapload_roadhouse" "disableWeapons" "all" } mapDef paul/test_cinematic { "snd_loadmusic" "mapload_roadhouse" "disableWeapons" "all" } mapDef mlong/toroadhouse { "playerHealth" "50" } mapDef mlong/toroadhouseb { "playerHealth" "100" "storePlayerHealth" "1" } mapDef paul/simple { "name" "Simple Test" "devname" "simple" "deathwalkmap" "None" "singleplayer" "1" "size0" "55718518" "size1" "69681808" "size2" "69681808" "size3" "154372907" // "disableWeapons" "all" "snd_loadmusic" "mapload_default" } mapDef training/testertraining { "name" "Prey Training" "deathwalkmap" "maps/game/deathwalk1" "singleplayer" "1" "playerHealth" "50" }

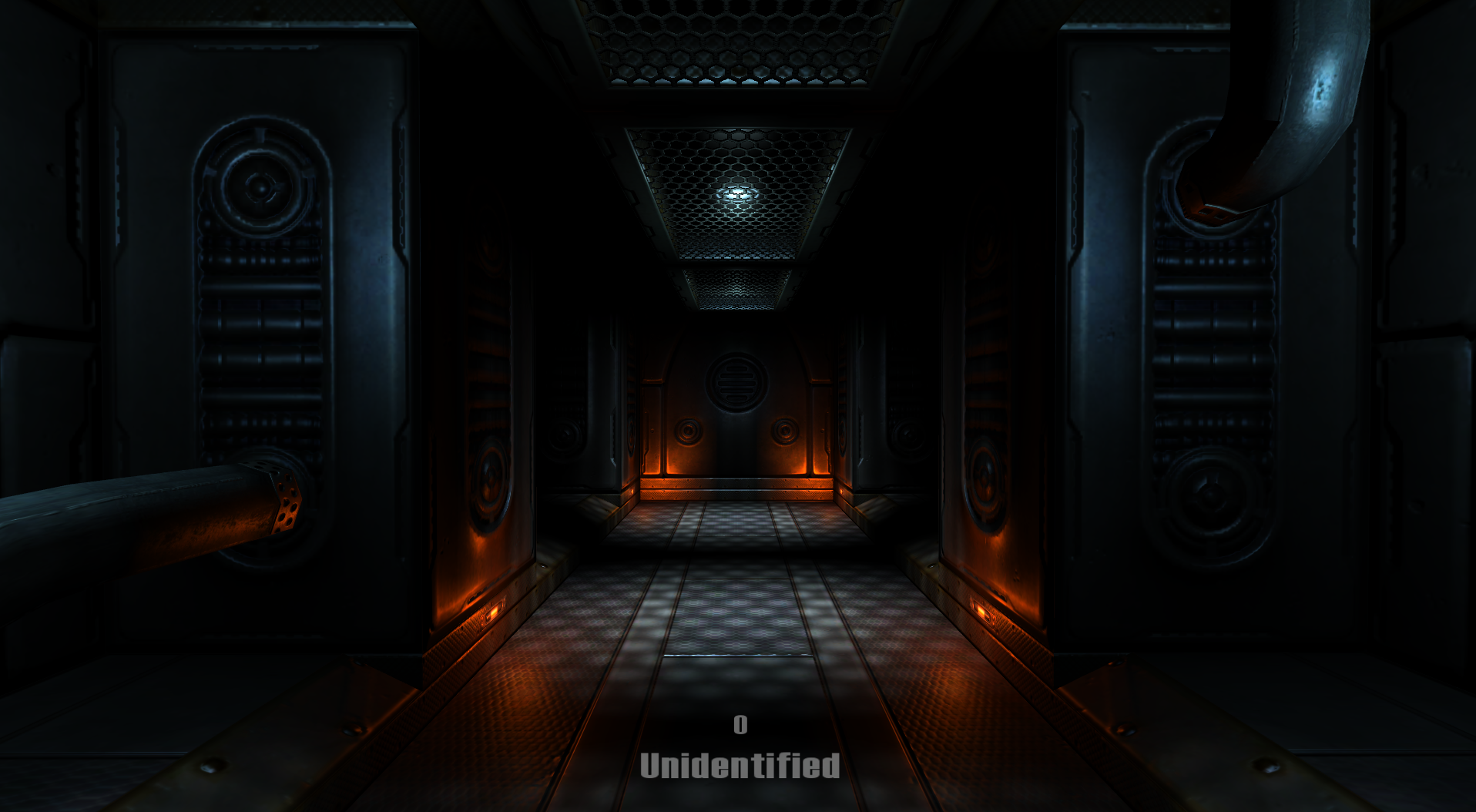

Unidentified

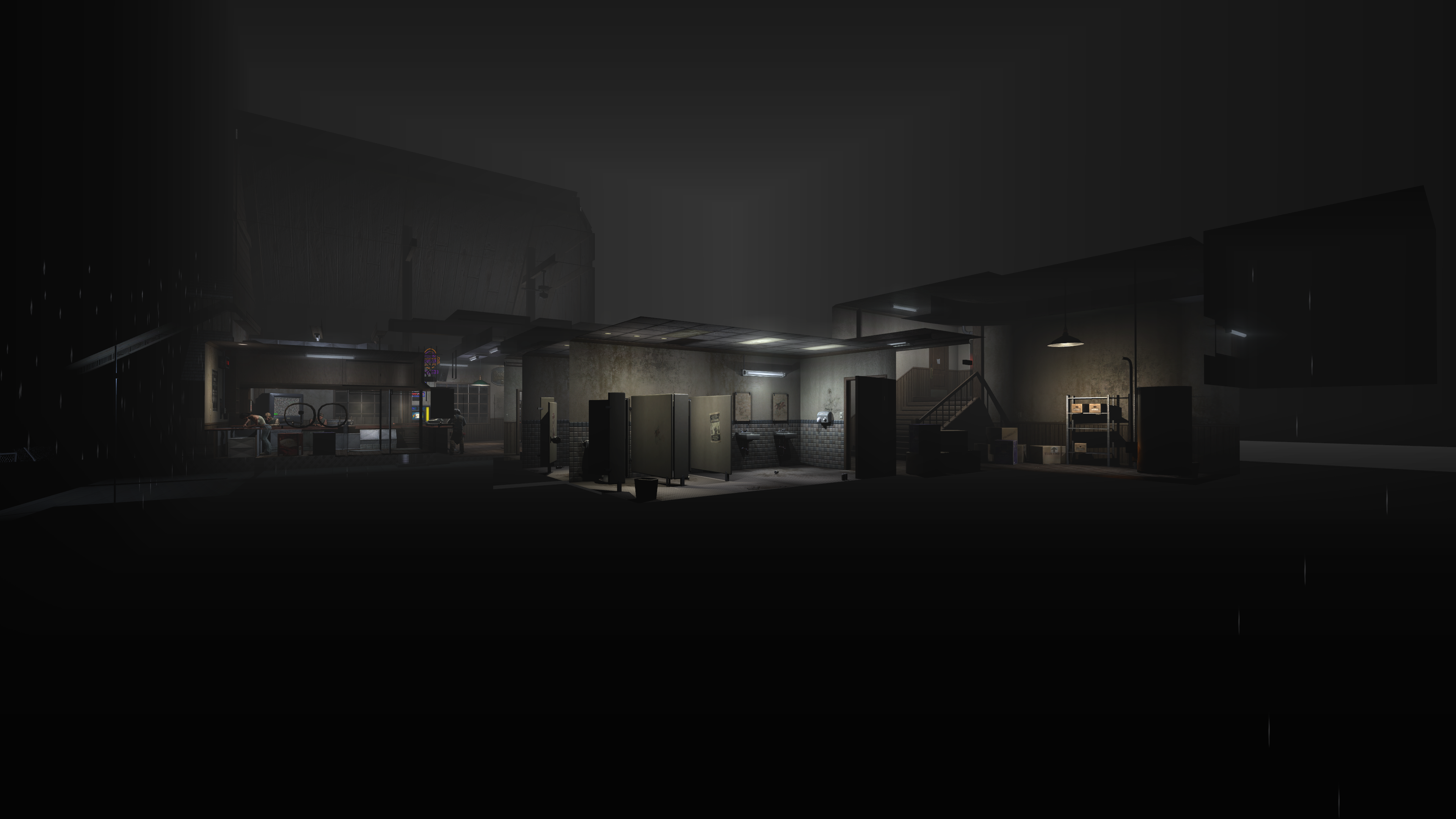

A small unused sector is out of bounds on several maps. To view the sector on the first level, roadhouse, use:
- console command
setviewpos 8976.25 -511.43 68.25 359.8
Media
Concept Art
Fig. 17: 2007-01-07
Fig. 18: 2005-05-22
Fig. 19: 2007-01-13
Fig. 20: 2007-01-20
Fig. 21: 2005-05-22
Fig. 22: 2005-05-22
Fig. 23: 2005-05-22
Fig. 24: 2007-01-20
Fig. 25: 2007-01-20
Fig. 26: 2006-04-24
Fig. 27: 2006-04-24
Fig. 28: 2007-01-20
Fig. 29: 2005-05-22
Fig. 30: 2007-01-20
Fig. 31: 2007-01-20

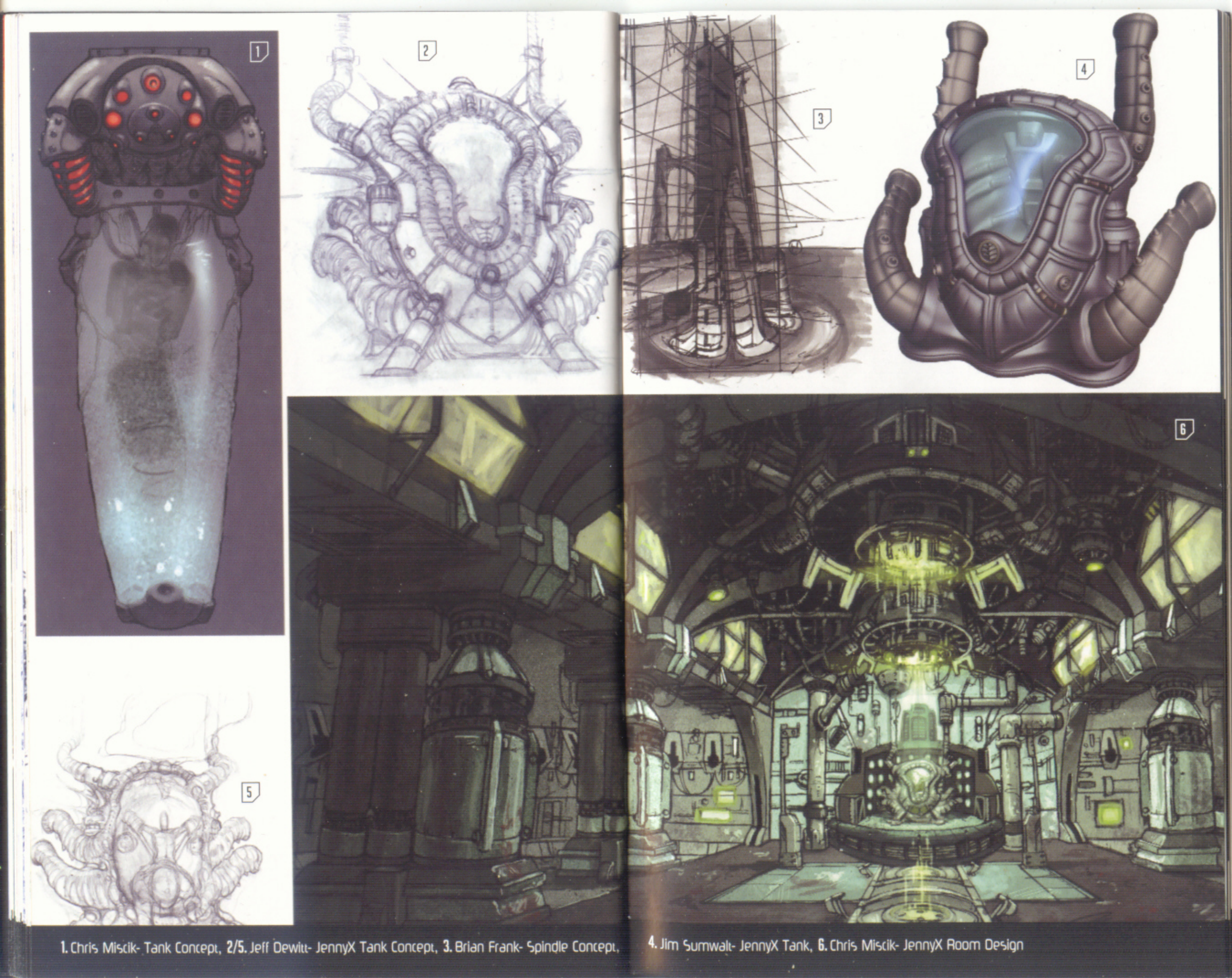

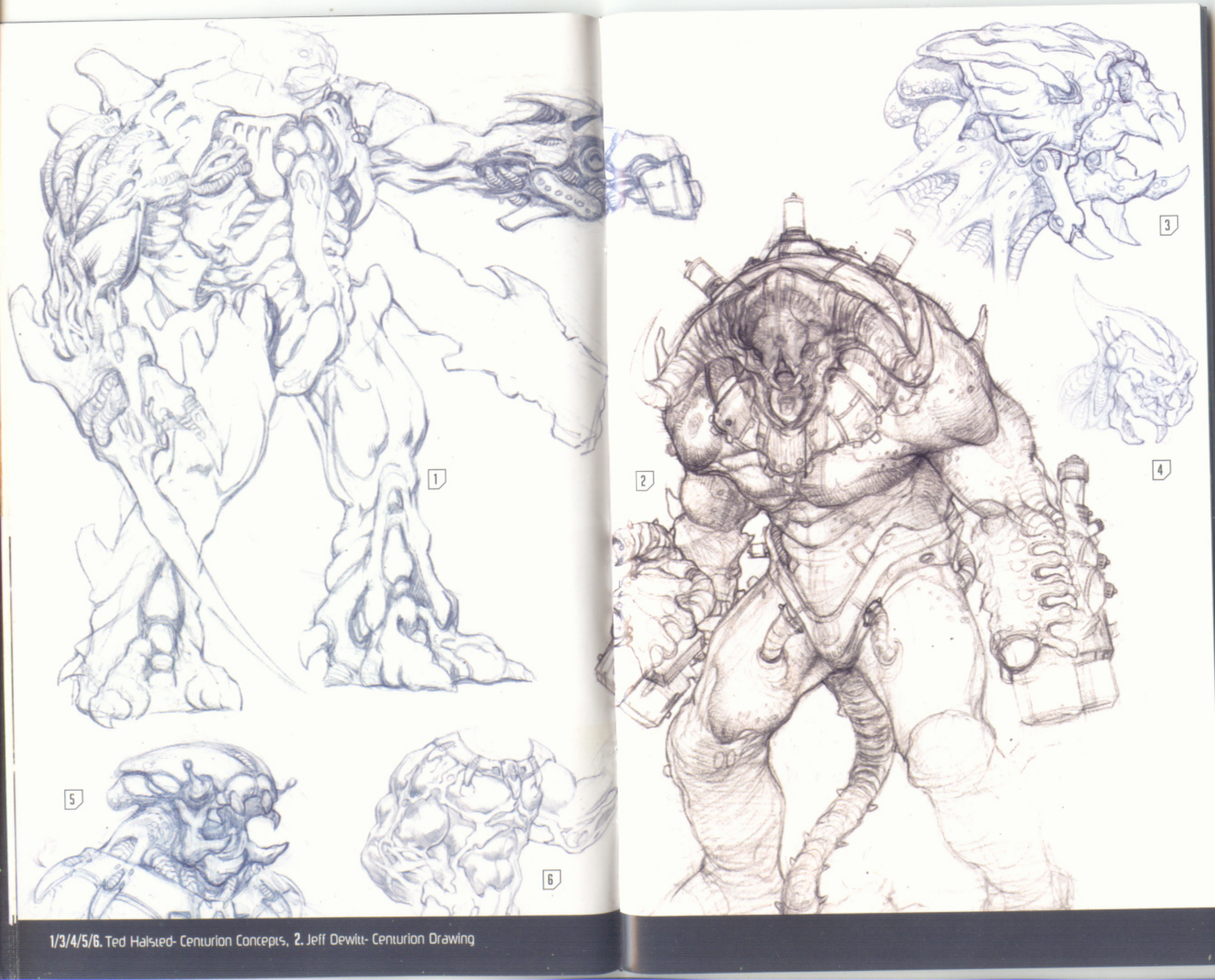

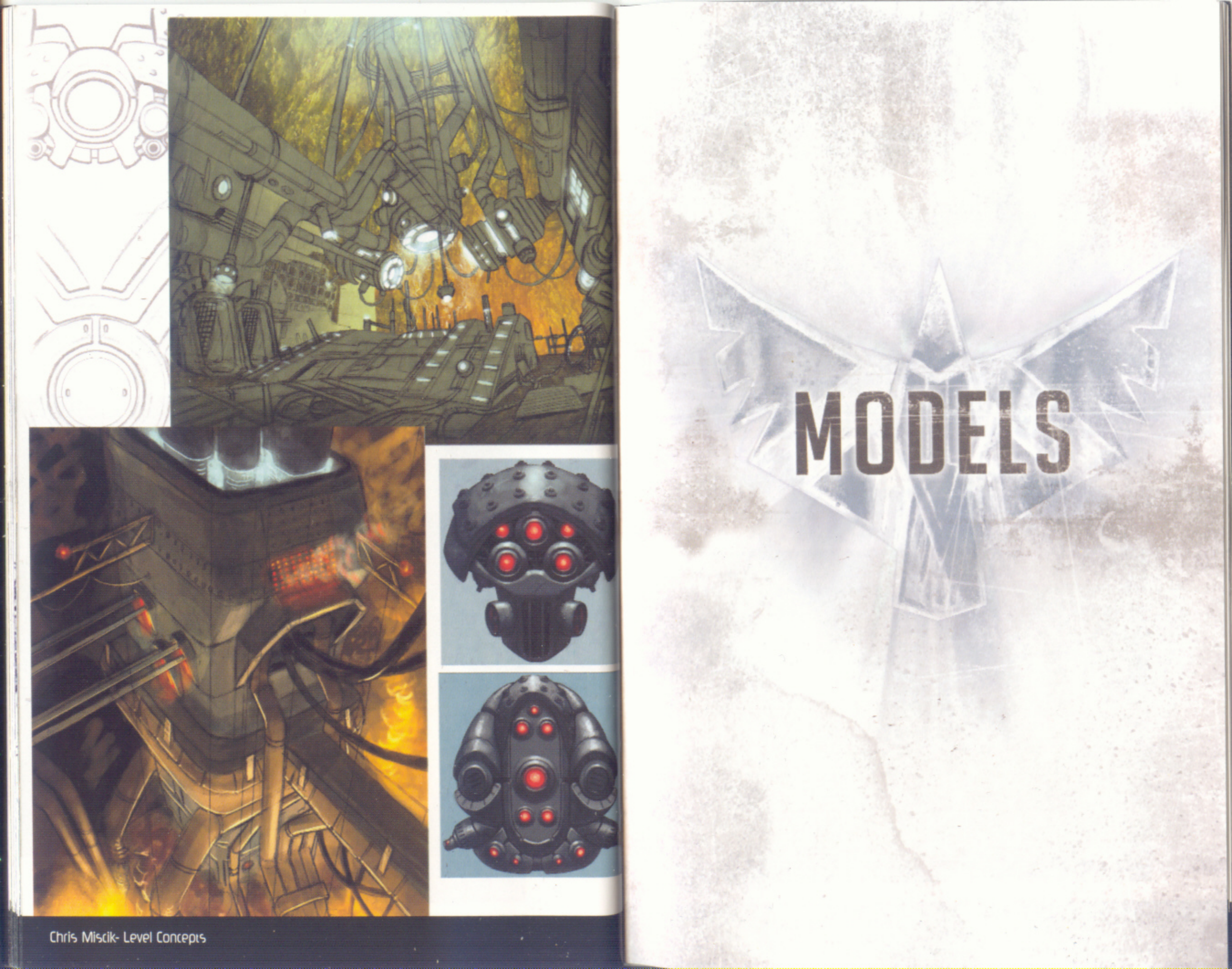

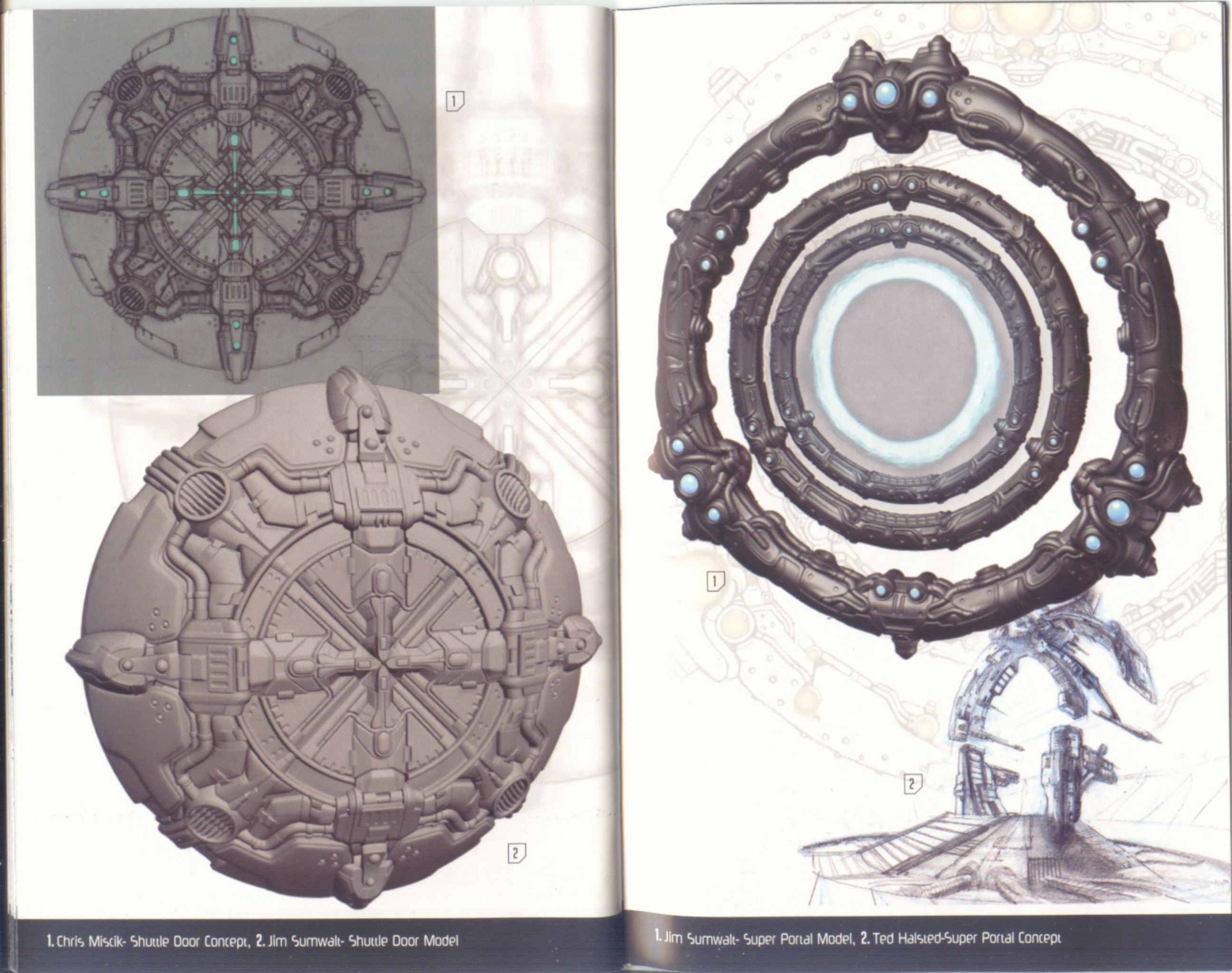

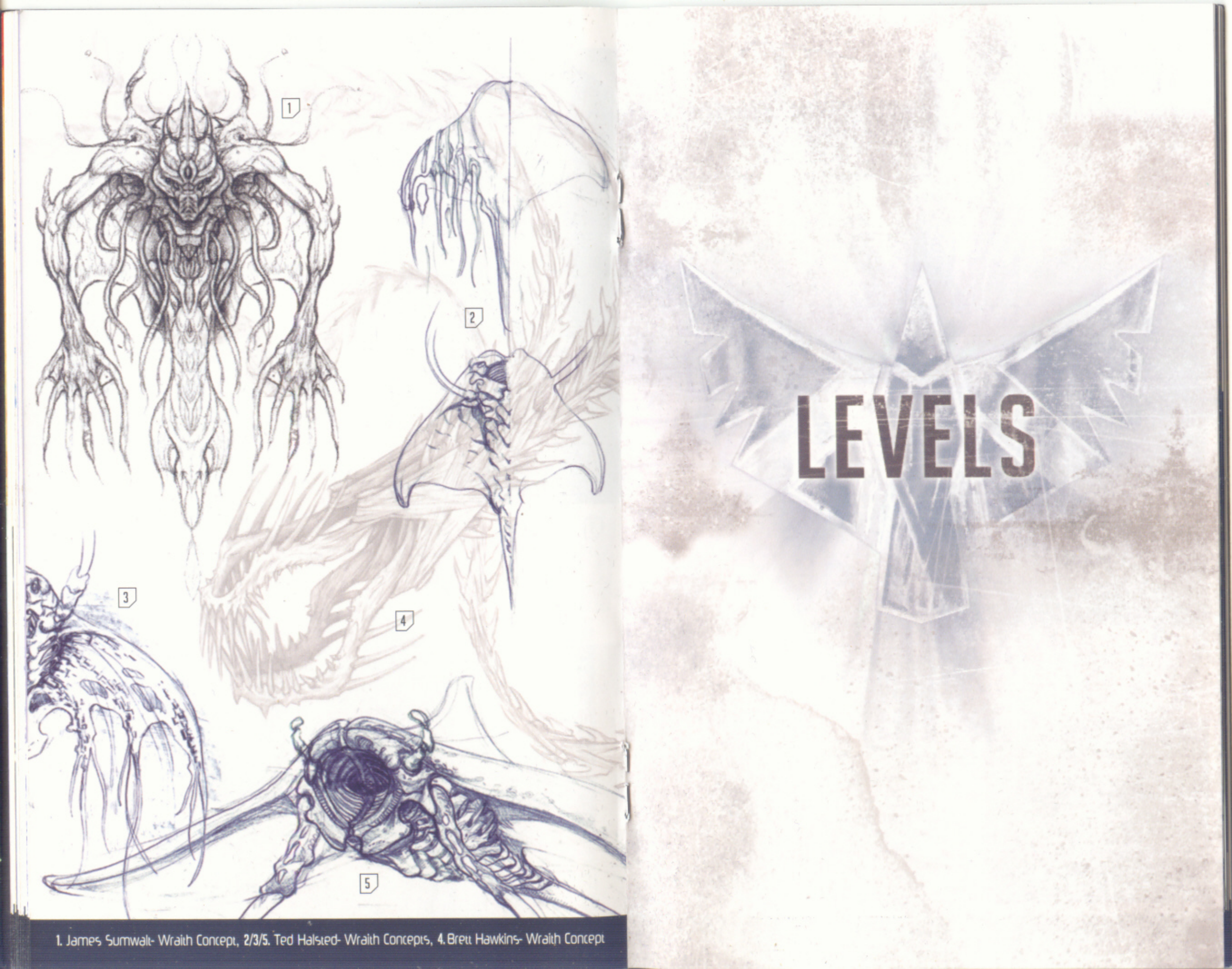

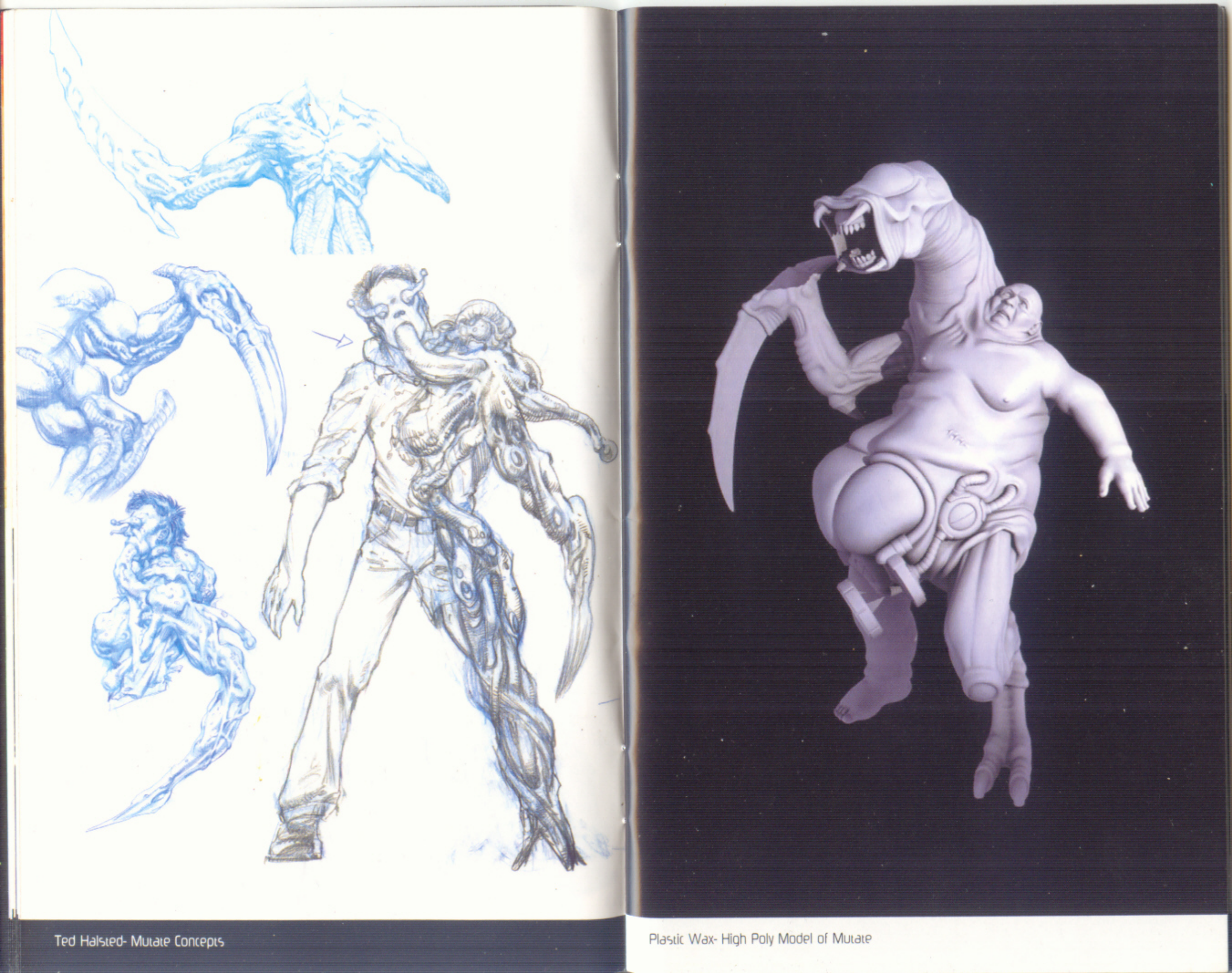

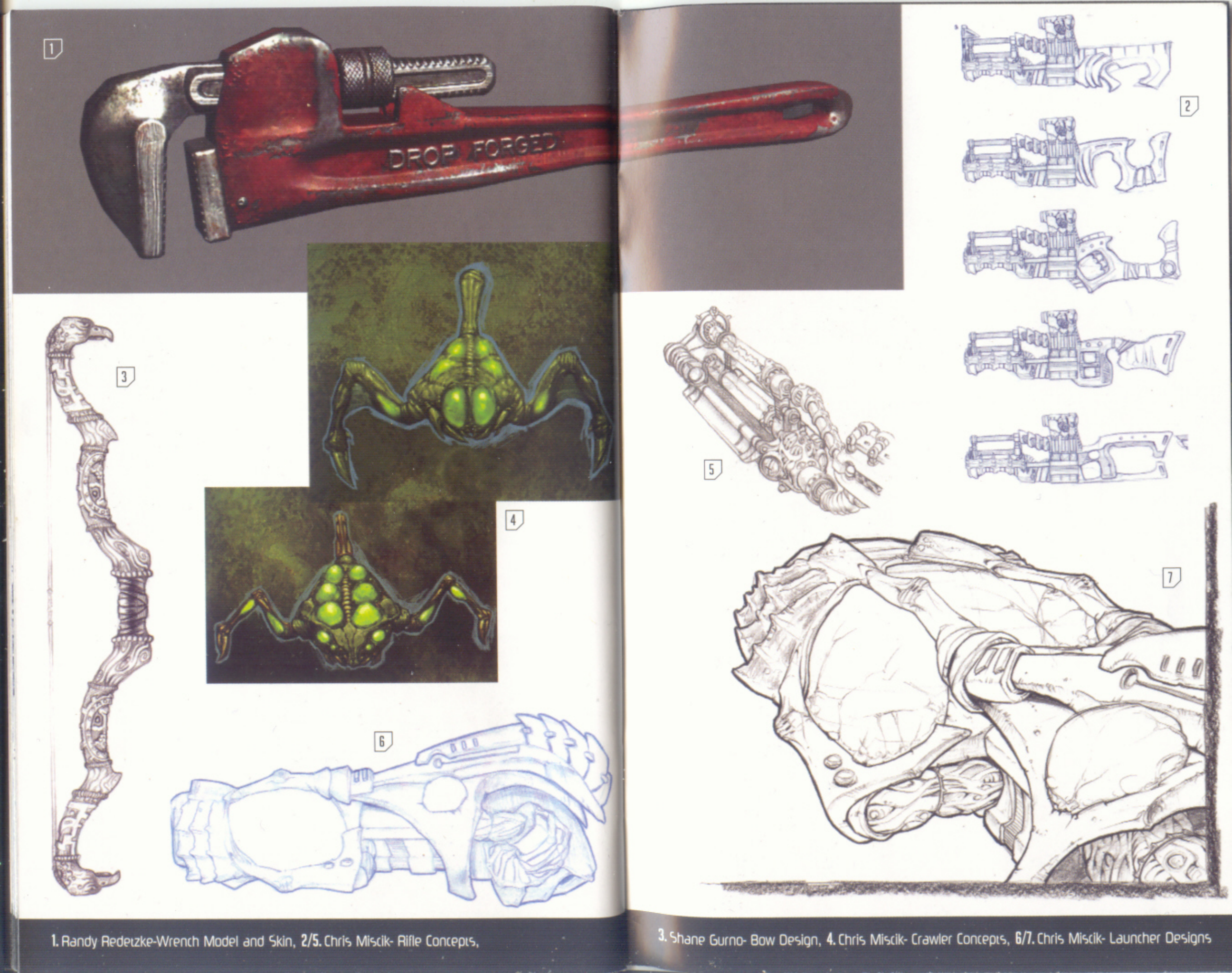

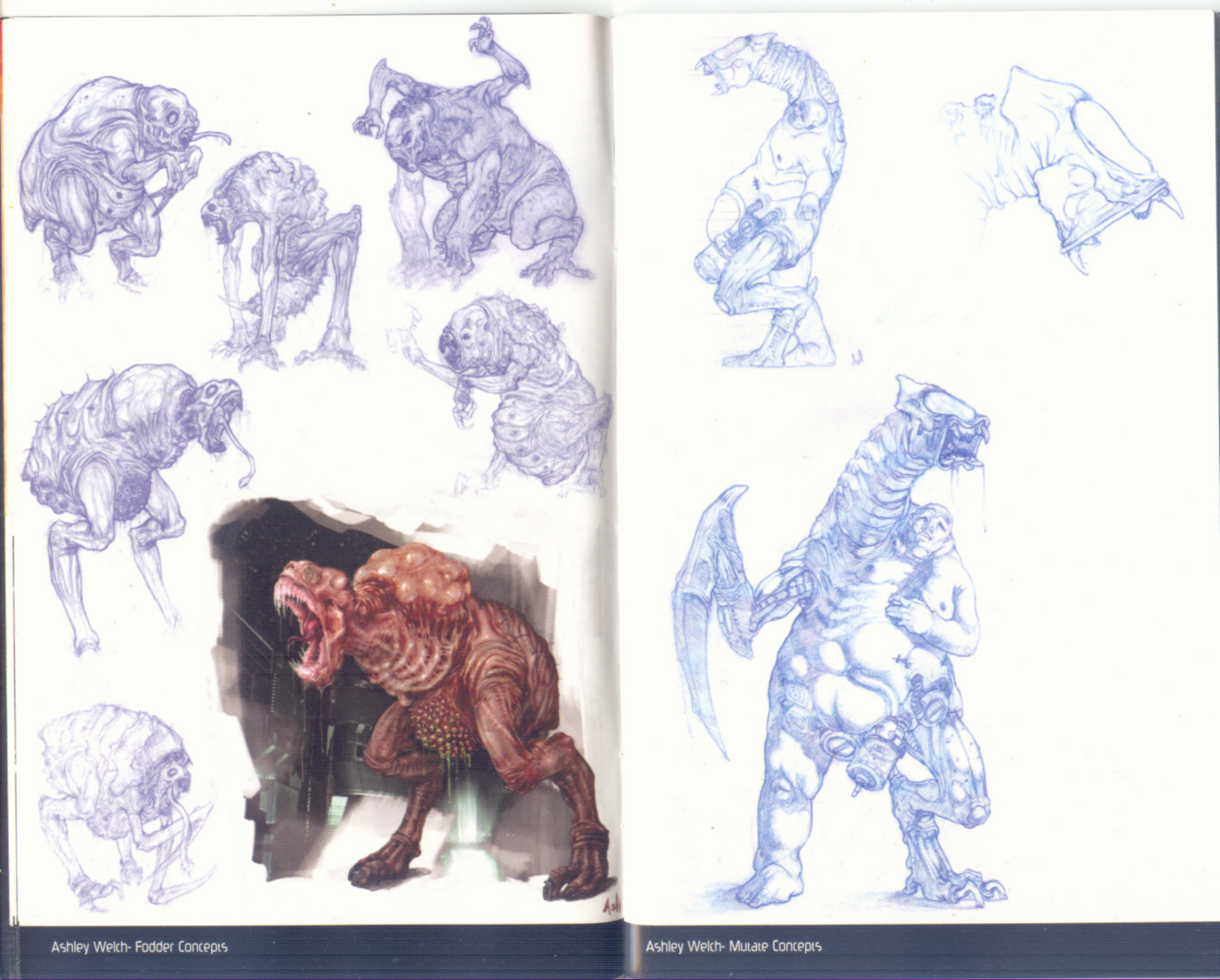

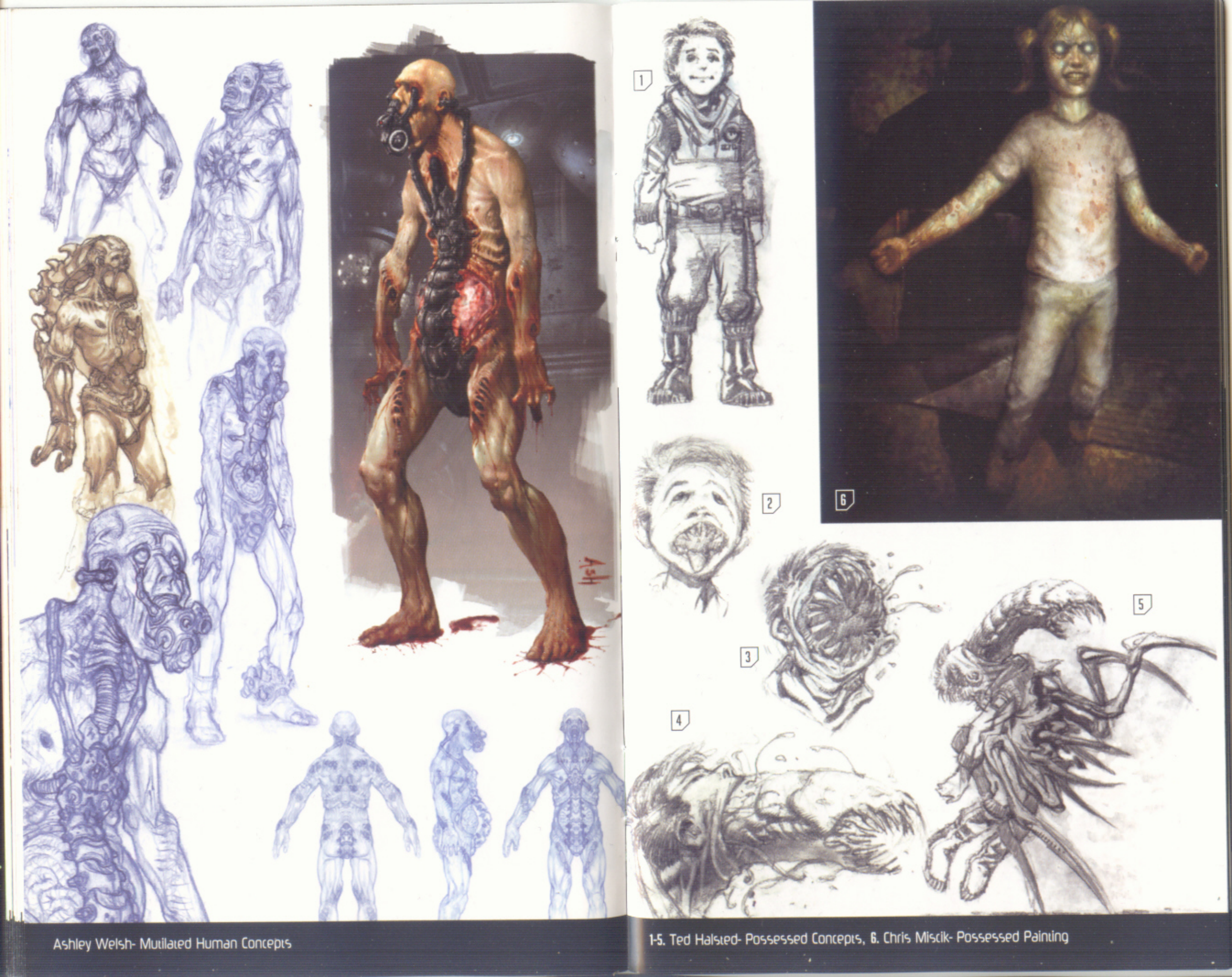

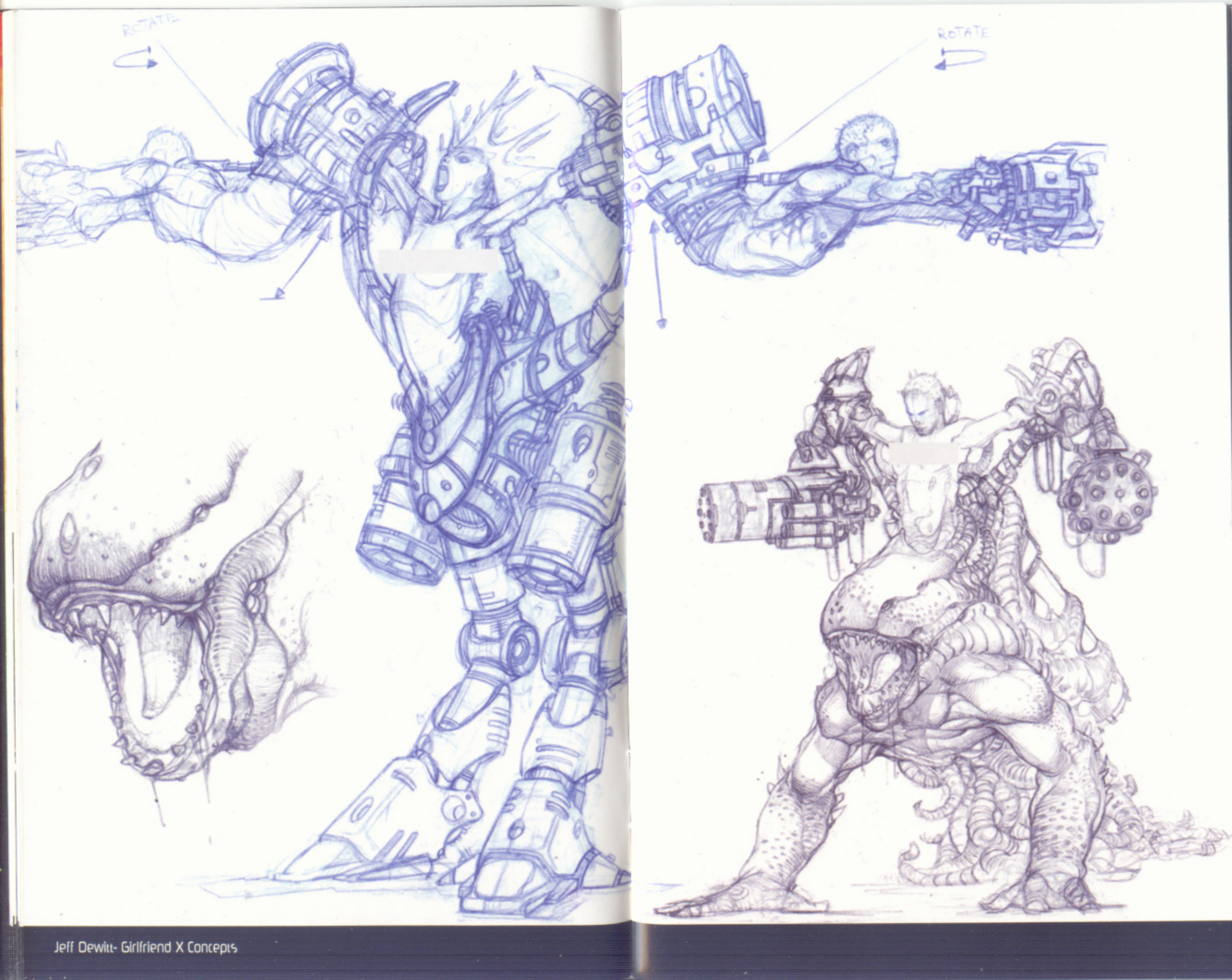

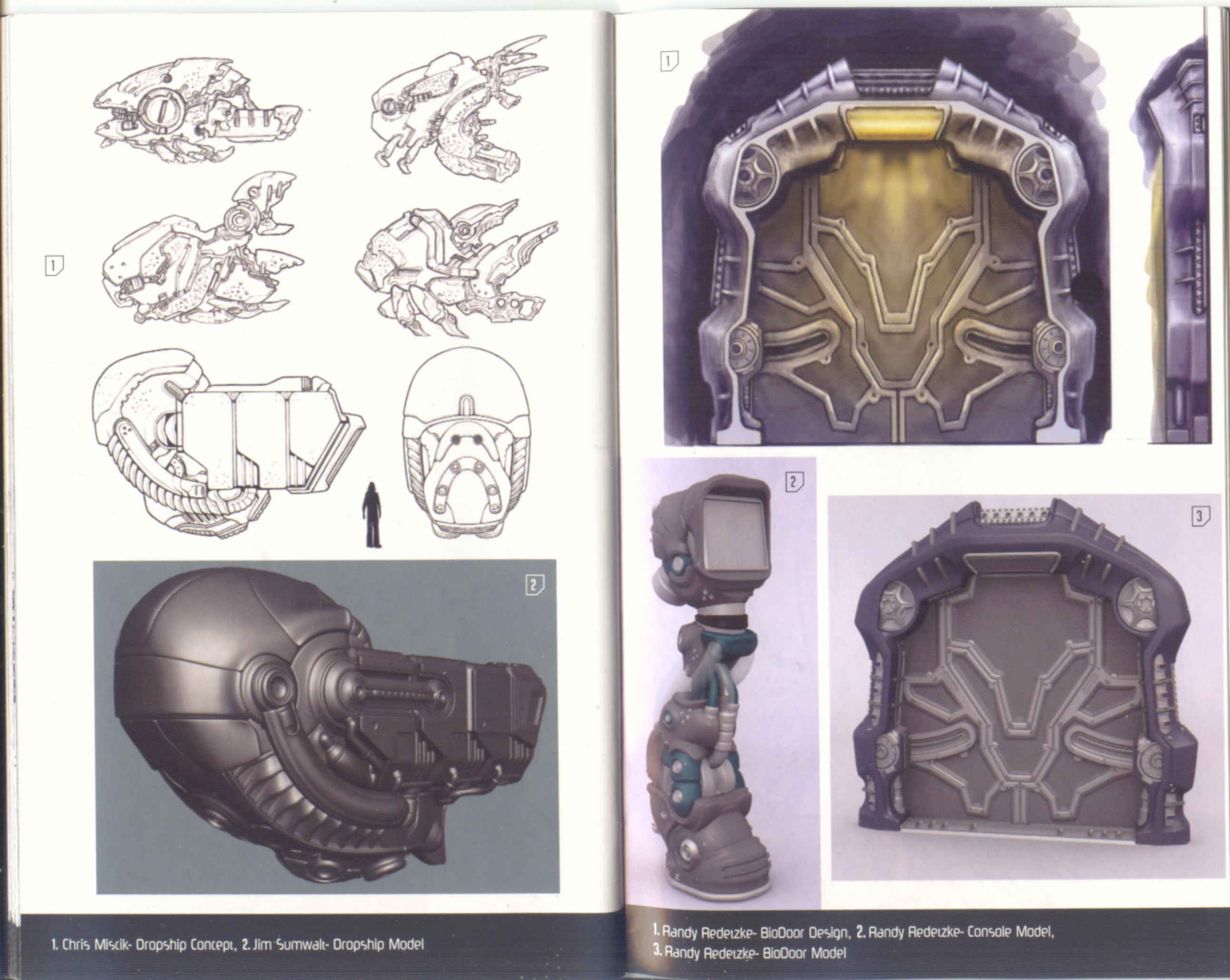

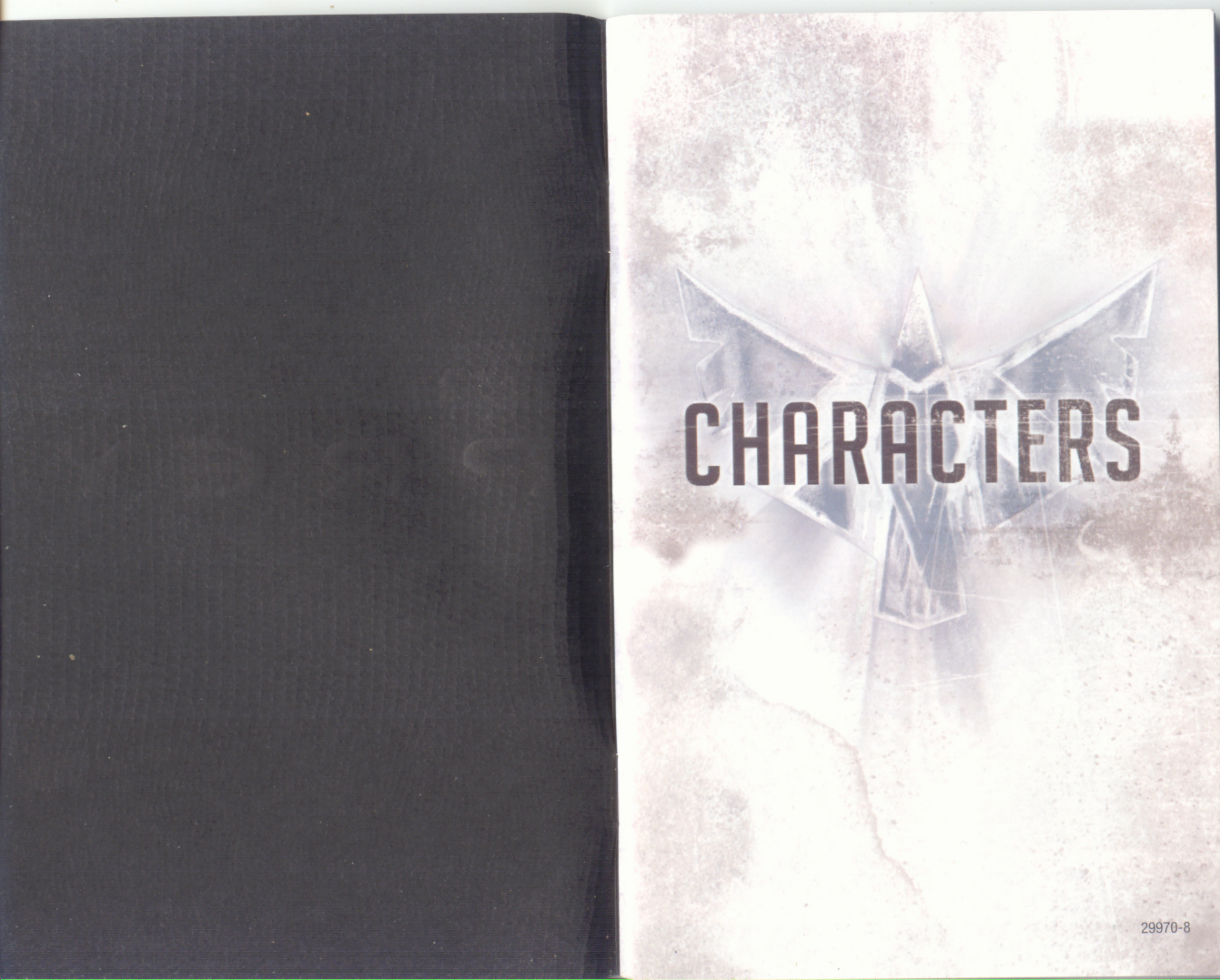

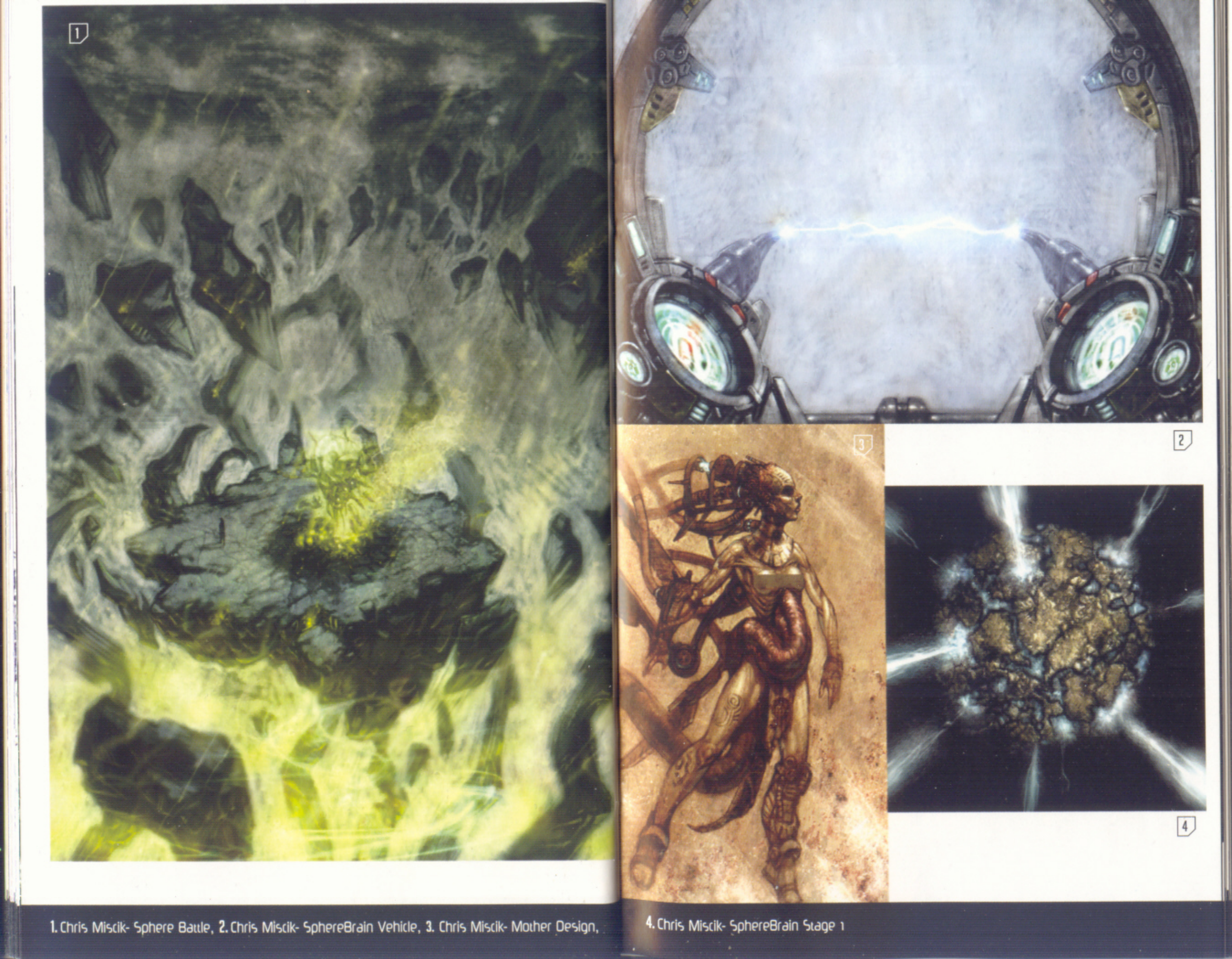

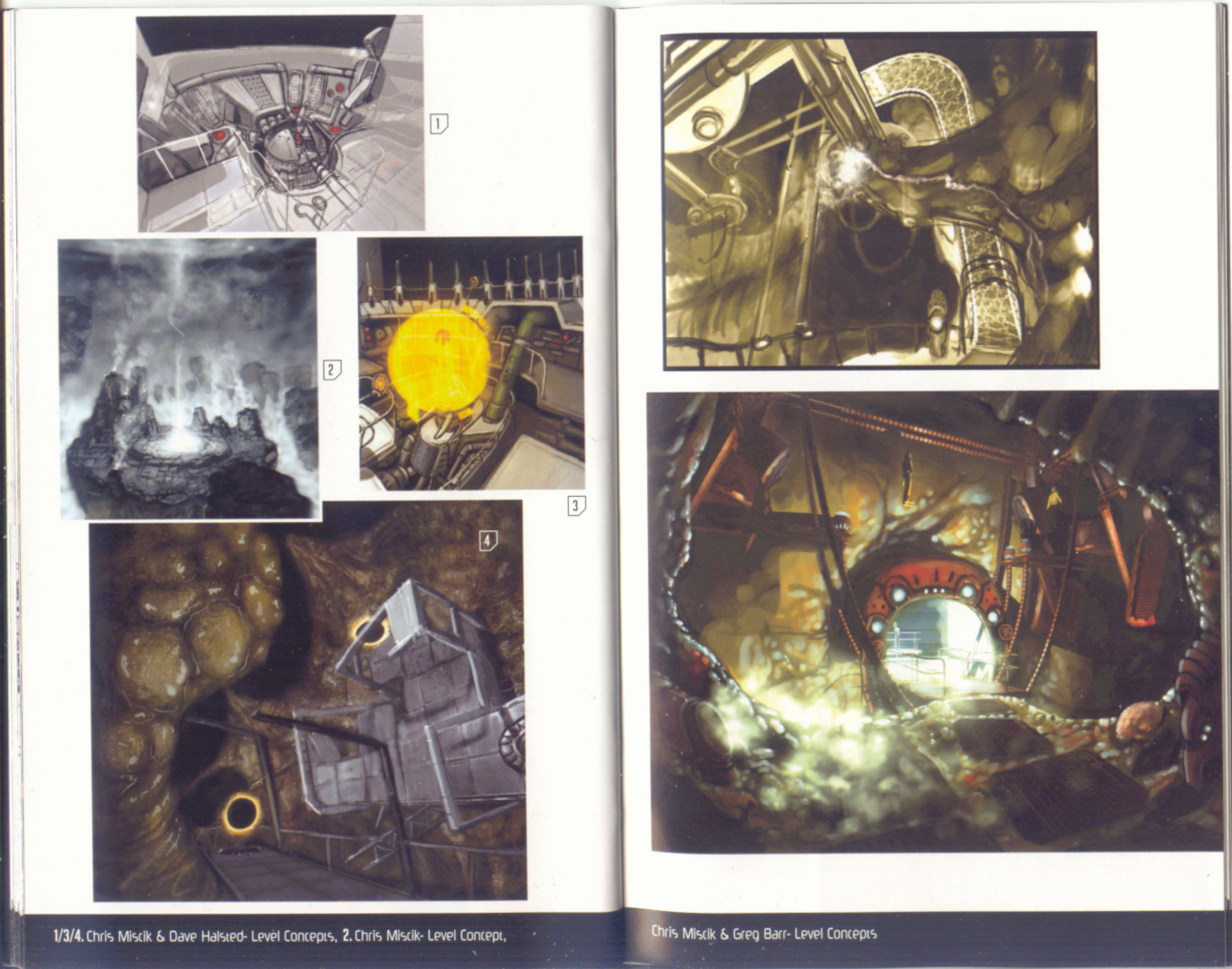

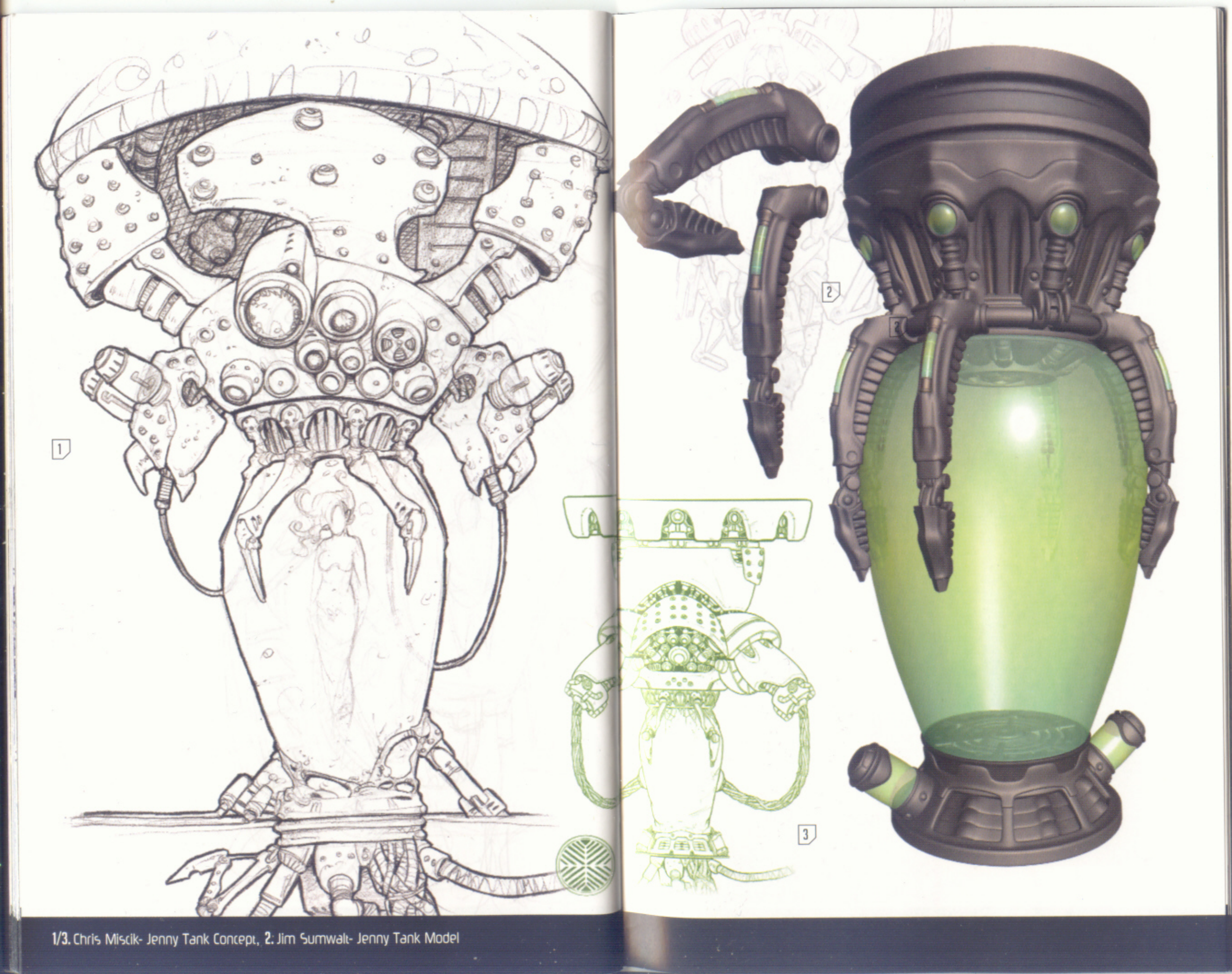

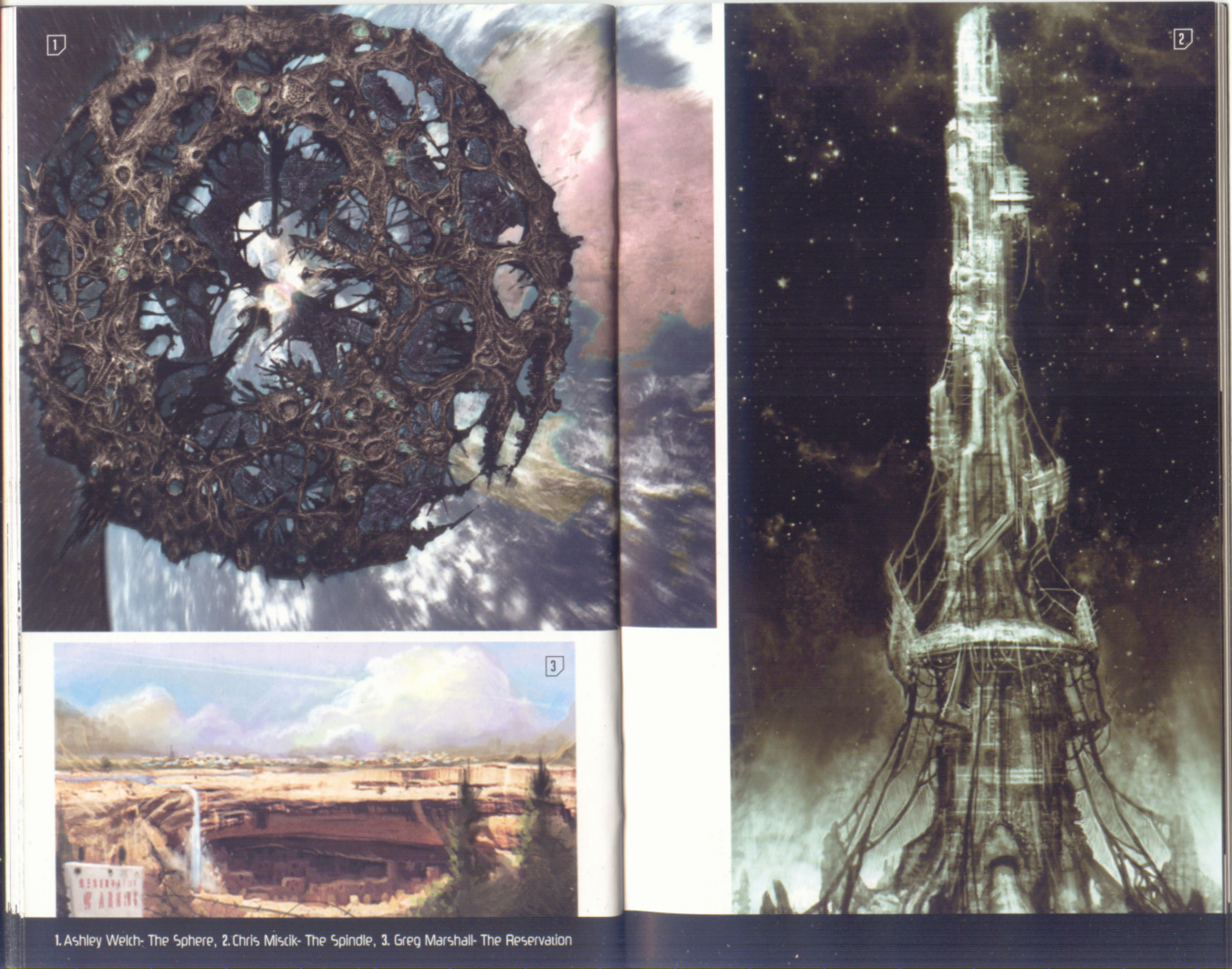

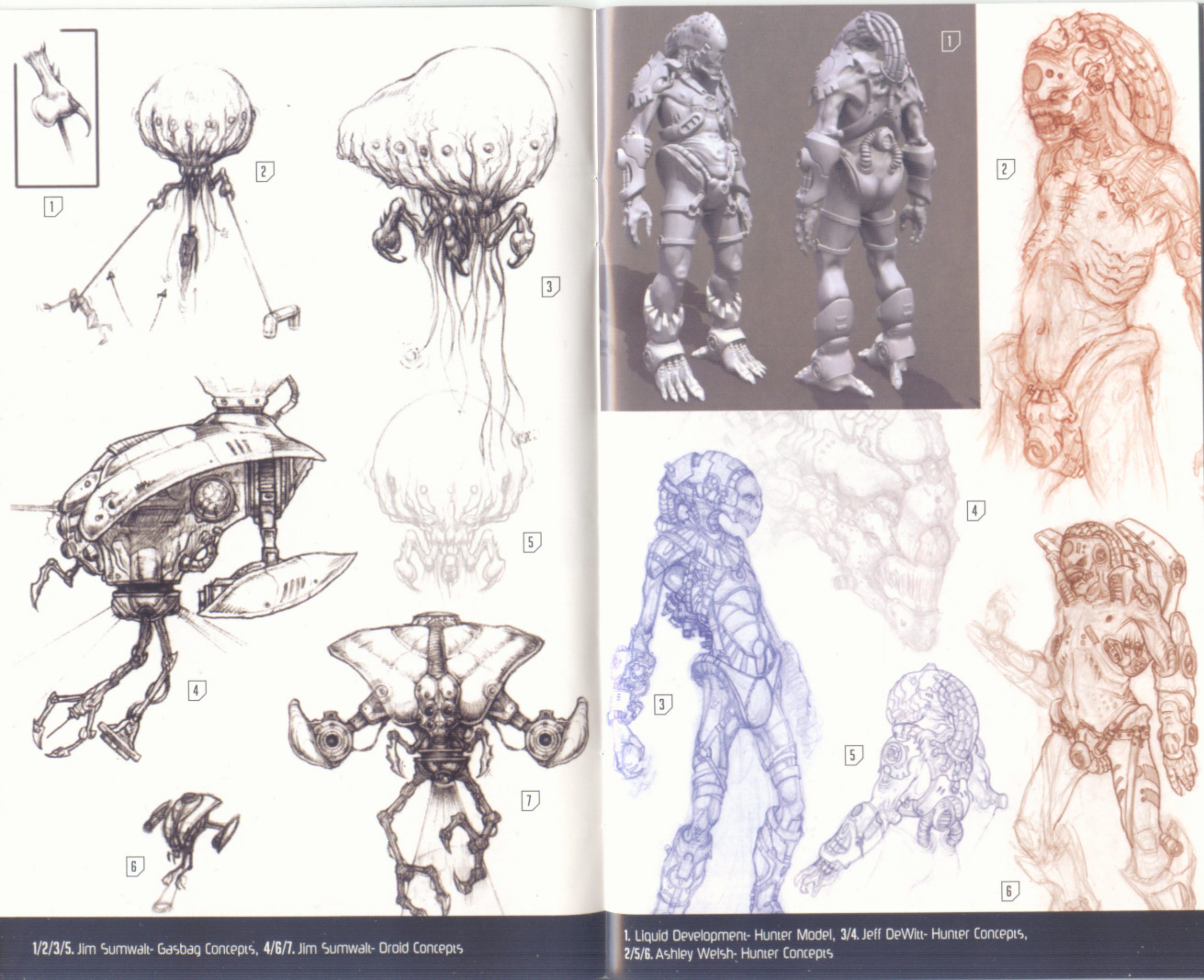

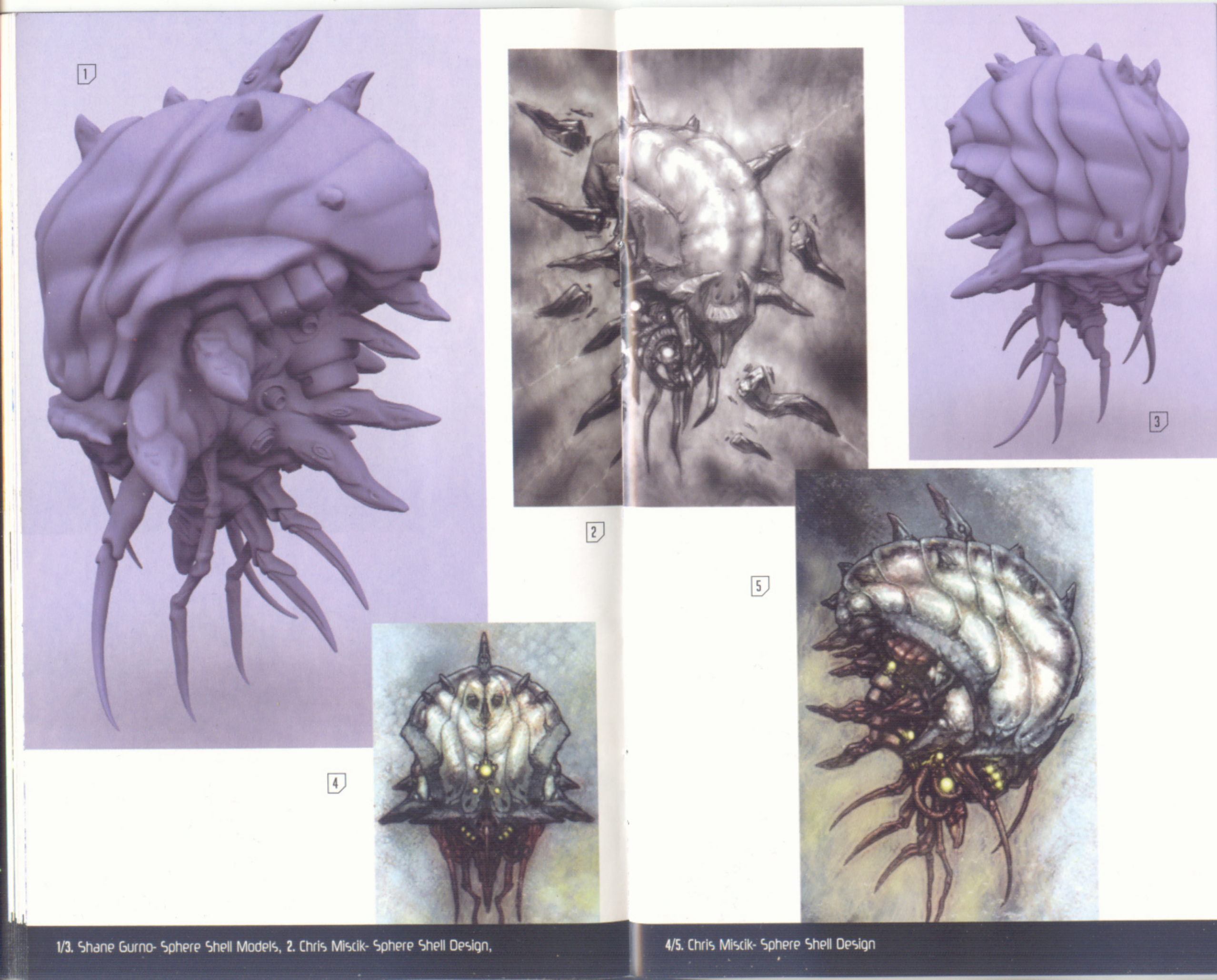

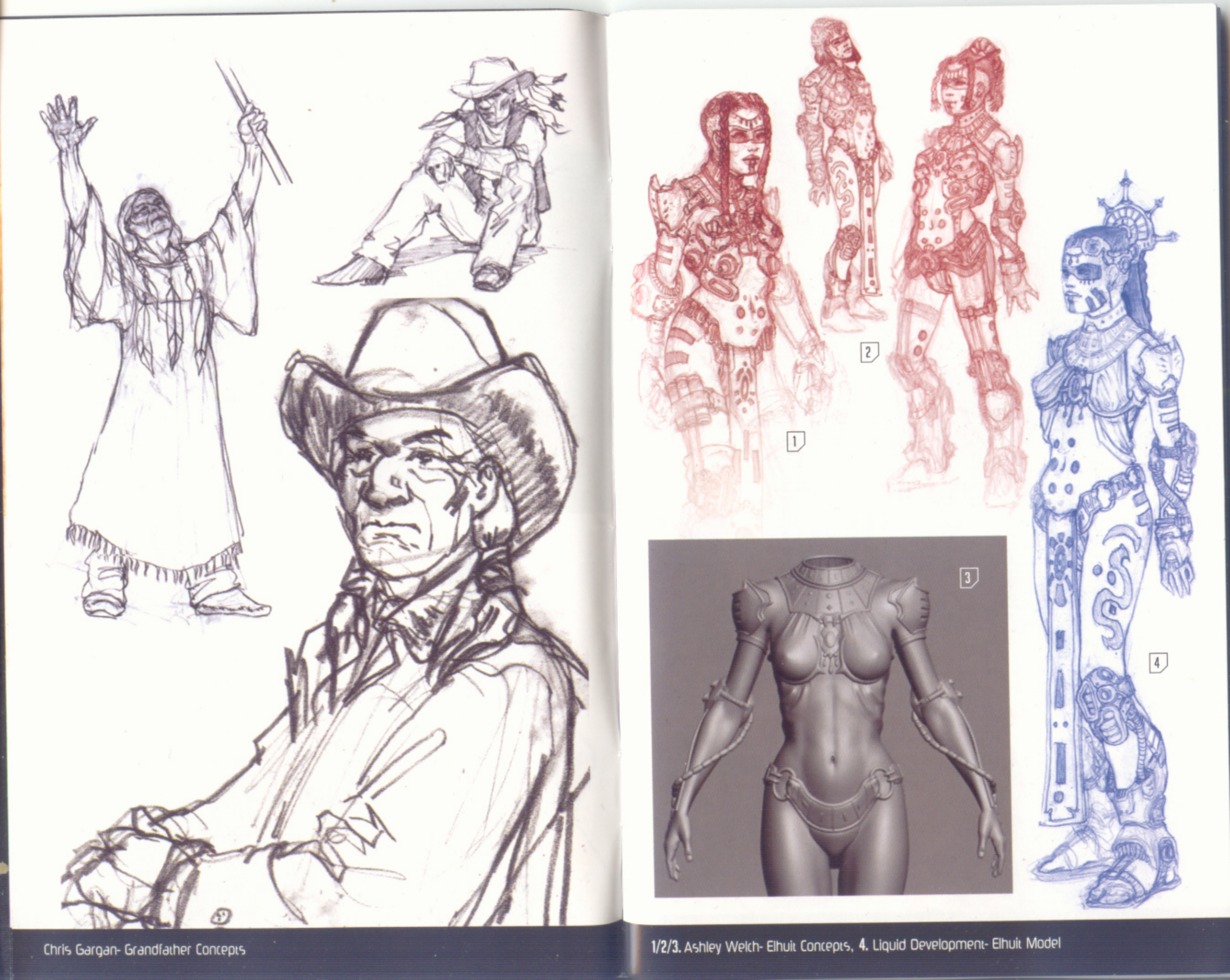

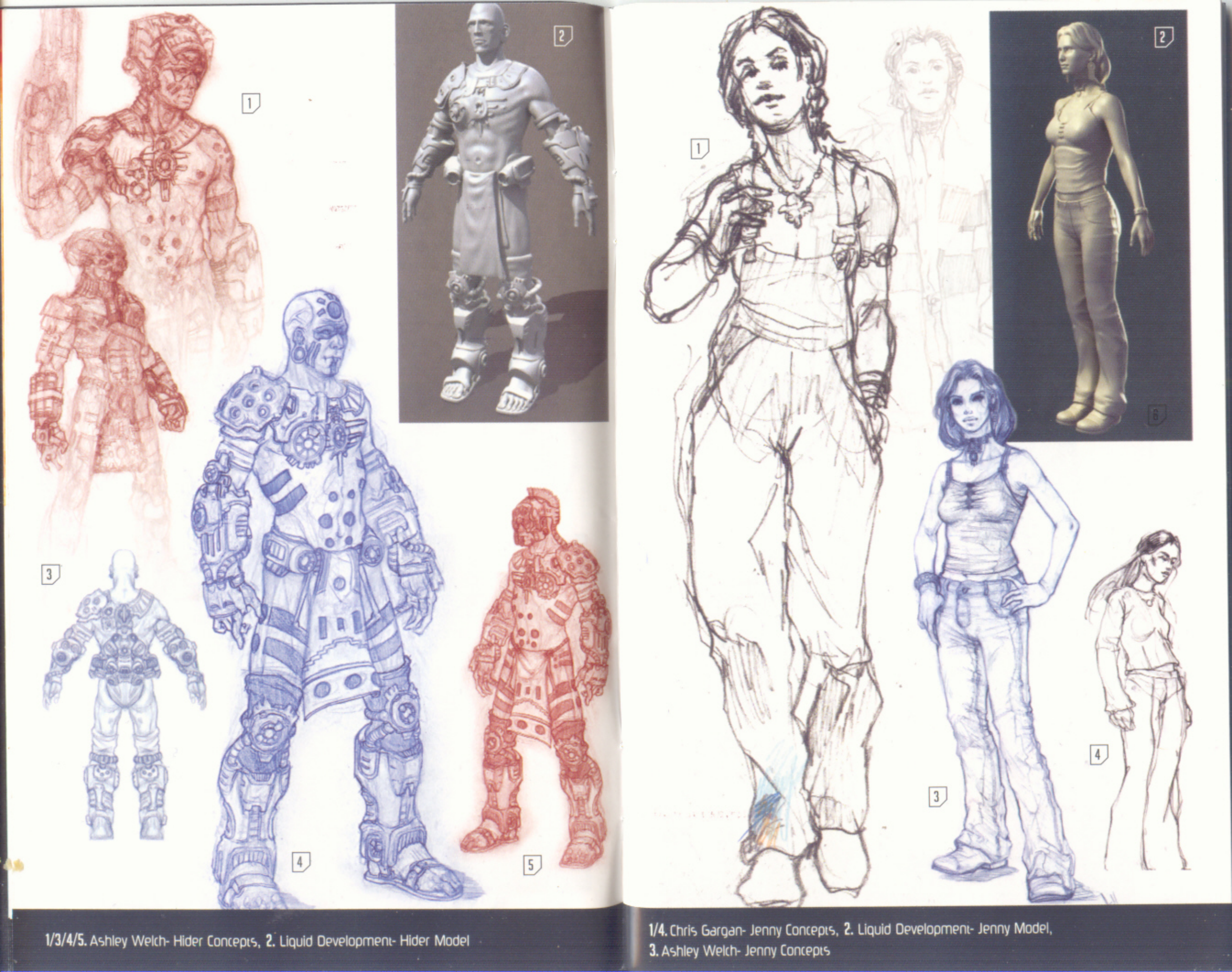

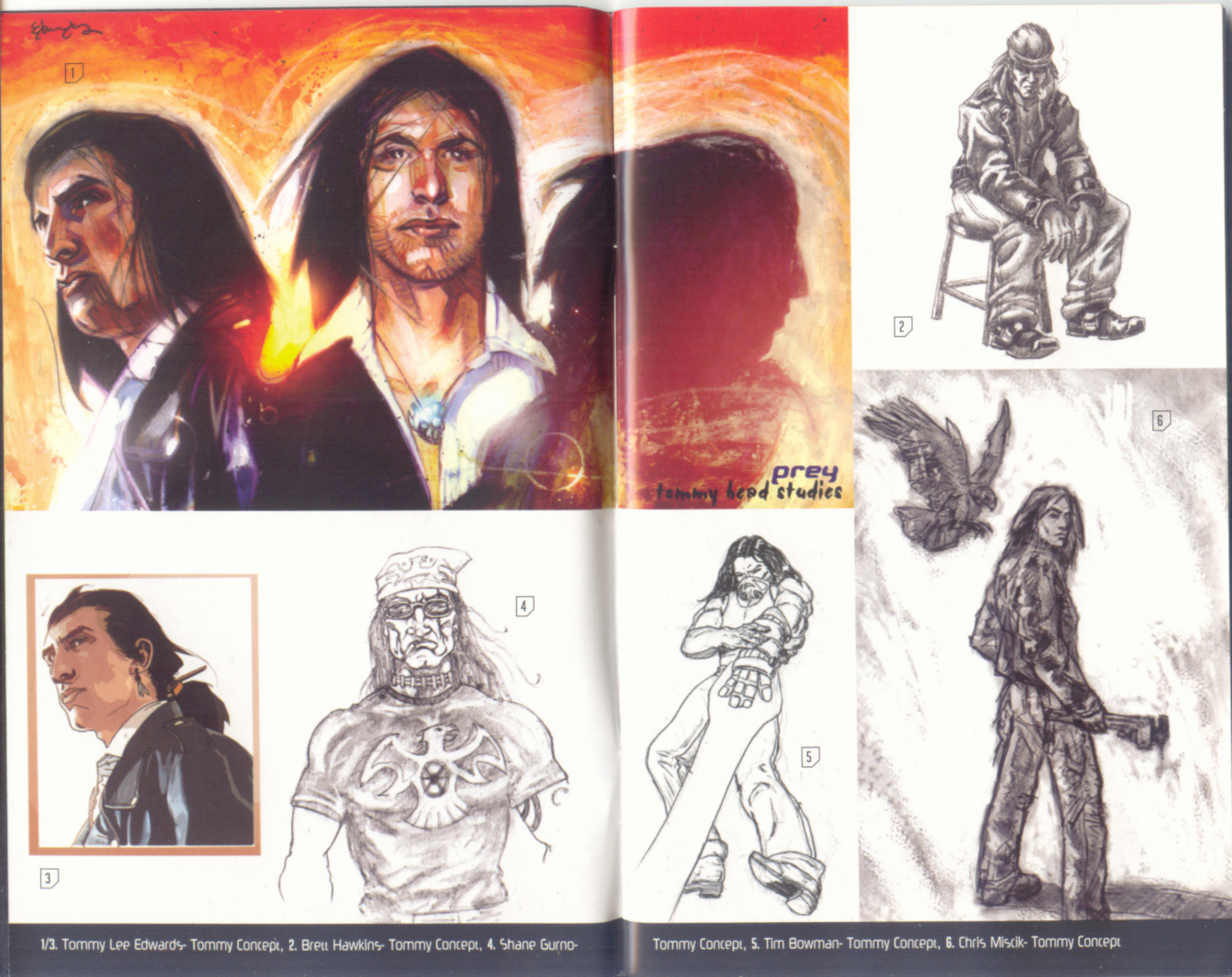

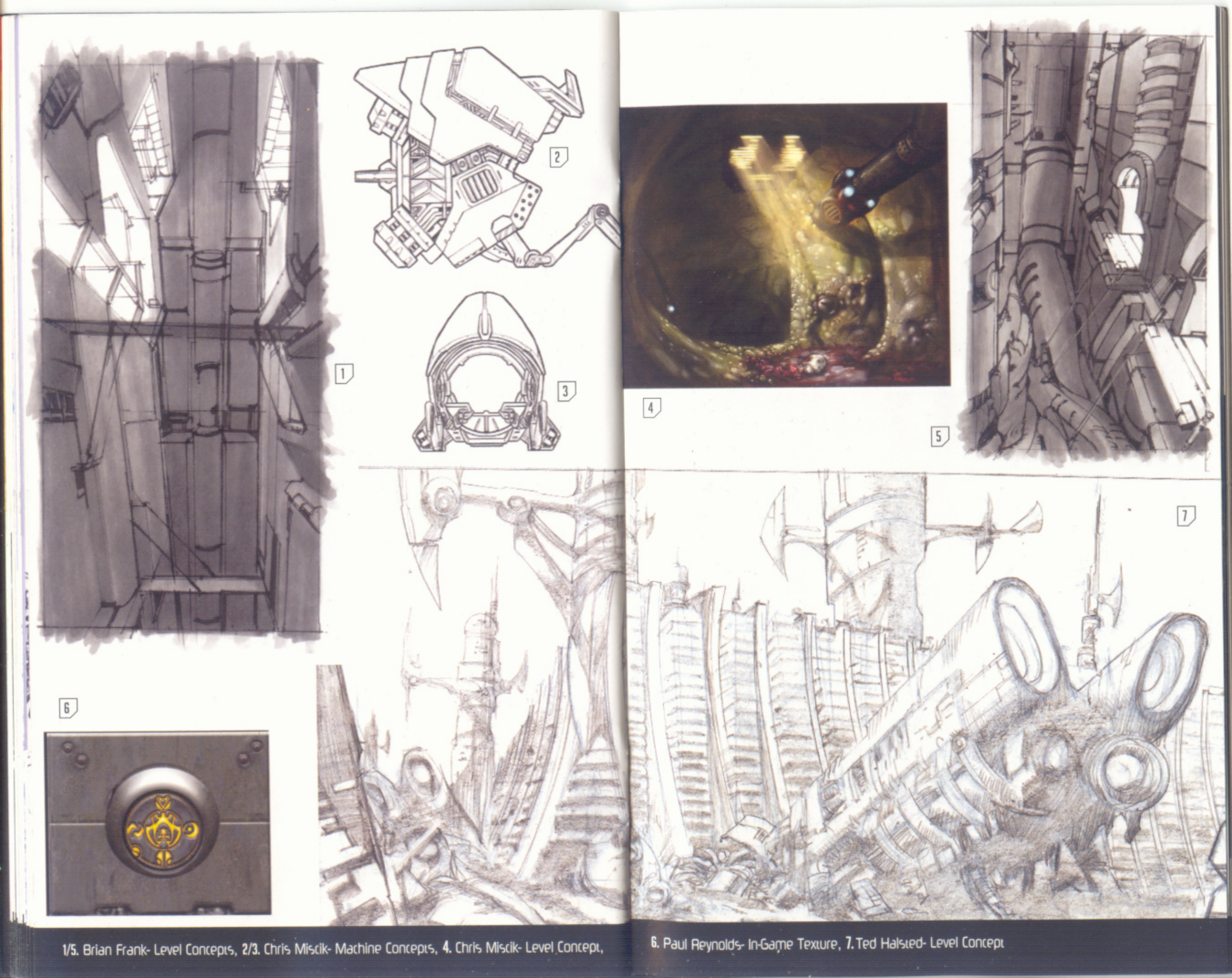

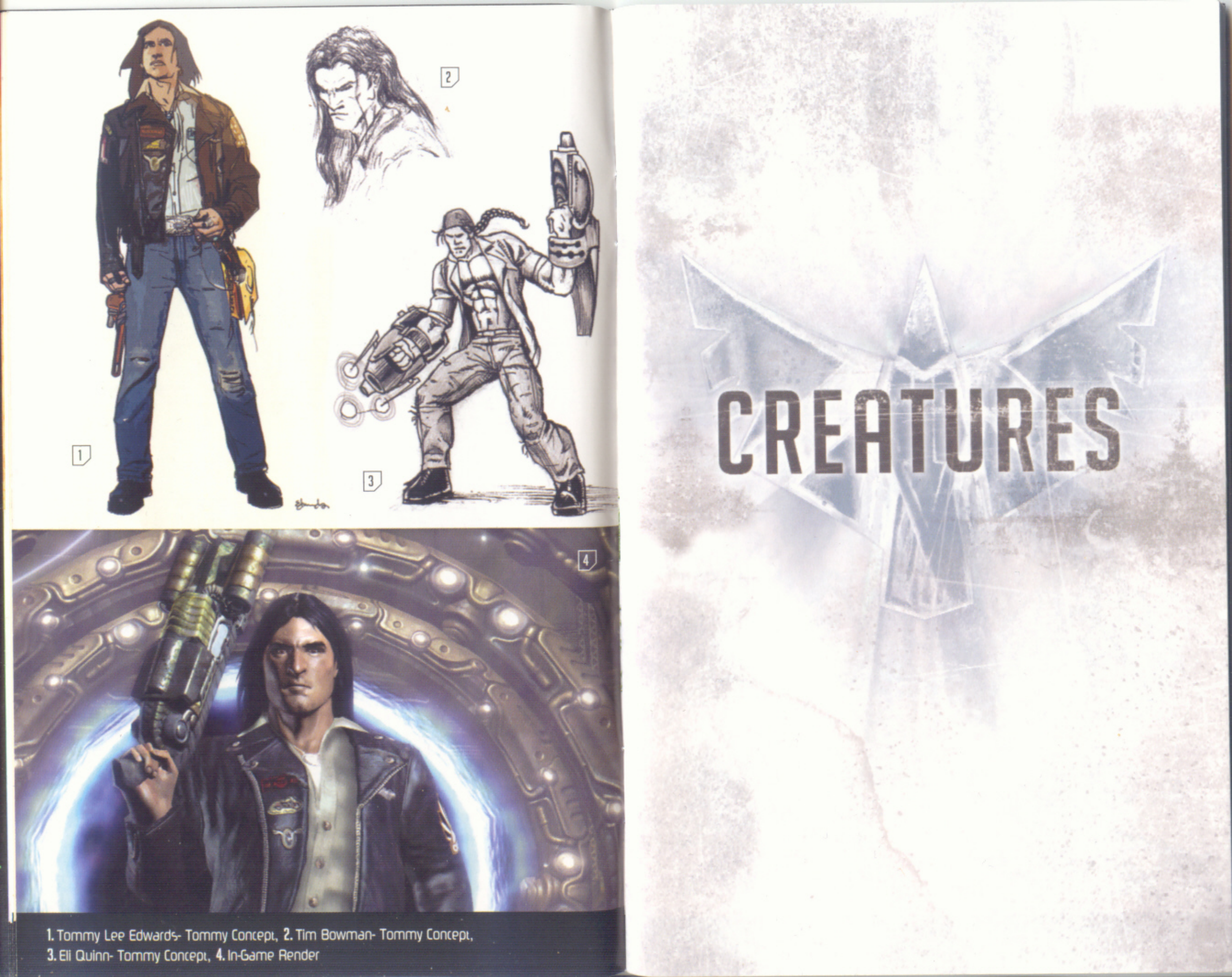

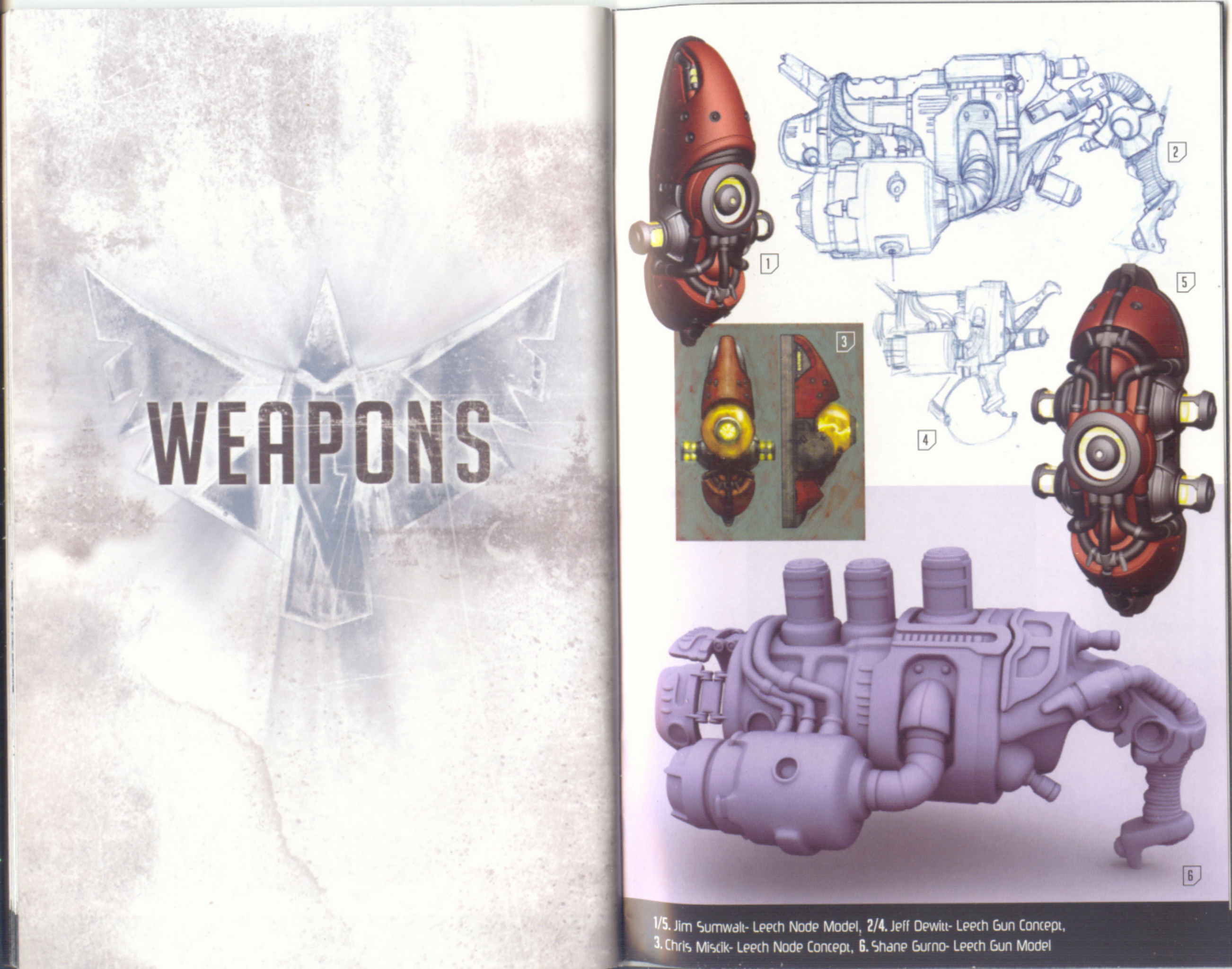

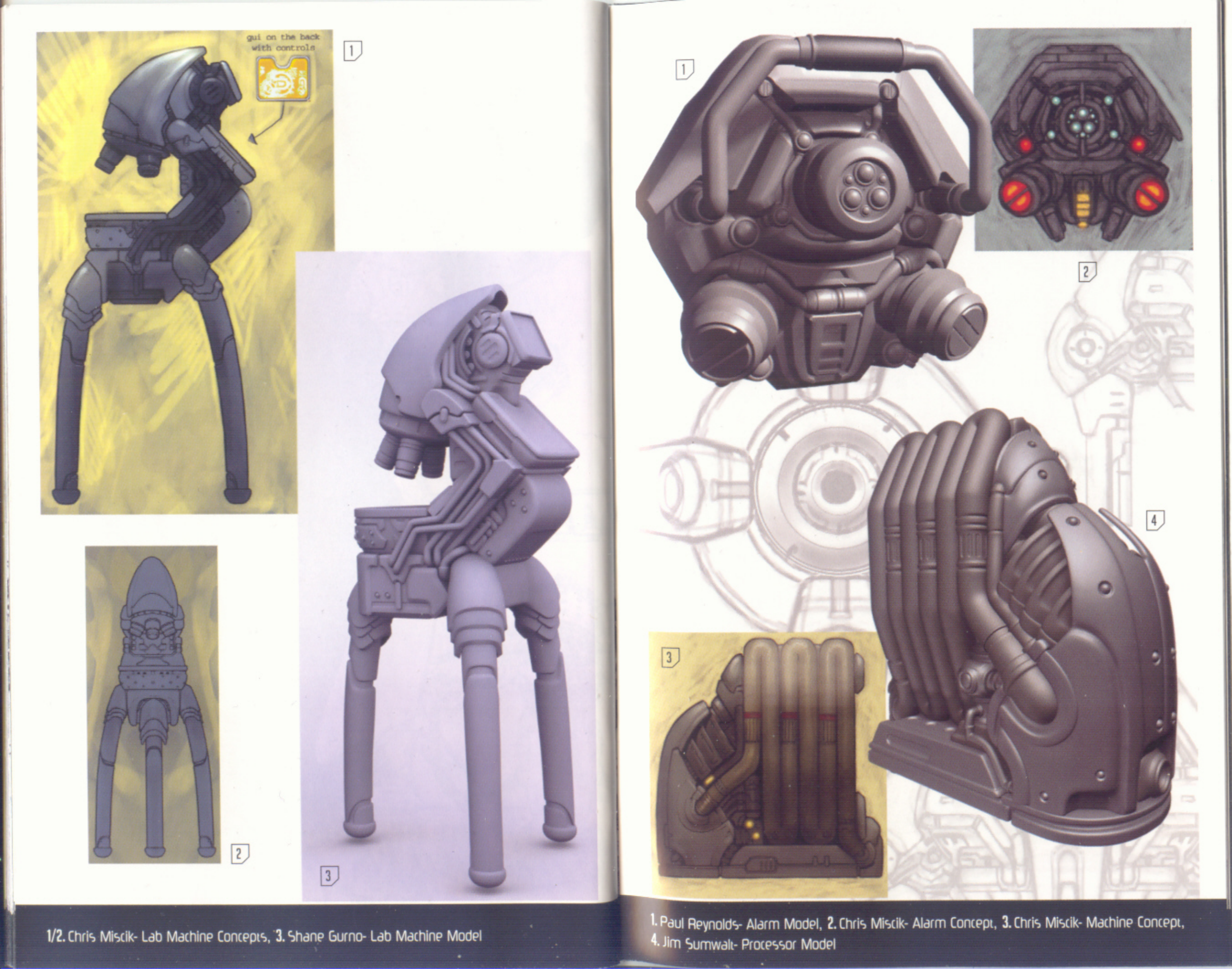

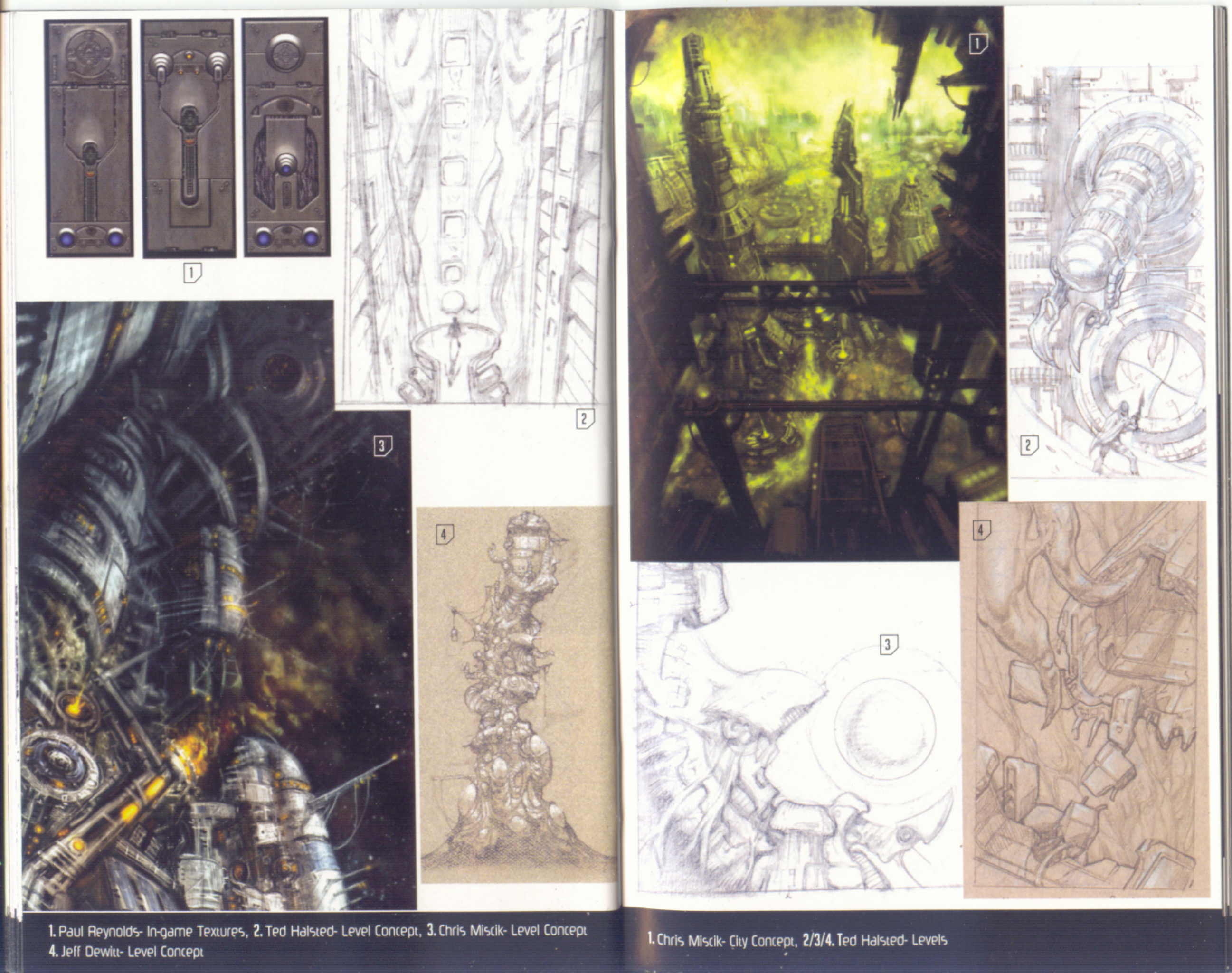

The Art of Prey
Bundled with the collector's edition of the game.
Fig. 32: Page 1
Fig. 33: Pages 2-3
Fig. 34: Pages 4-5
Fig. 35: Pages 6-7
Fig. 36: Pages 8-9
Fig. 37: Pages 10-11
Fig. 38: Pages 12-13
Fig. 39: Pages 14-15
Fig. 40: Pages 16-17
Fig. 41: Pages 18-19
Fig. 42: Pages 20-21
Fig. 43: Pages 22-23
Fig. 44: Pages 24-25
Fig. 45: Pages 26-27
Fig. 46: Pages 28-29
Fig. 47: Pages 30-31
Fig. 48: Pages 32-33
Fig. 49: Pages 34-35
Fig. 50: Pages 36-37
Fig. 51: Pages 38-39
Fig. 52: Pages 40-41
Fig. 53: Pages 42-43
Fig. 54: Pages 44-45
Fig. 55: Pages 46-47
Fig. 56: Pages 48-49
Fig. 57: Pages 50-51
Fig. 58: Pages 52-53
Fig. 59: Pages 54-55
Fig. 60: Pages 56-57
Fig. 61: Pages 58-59
Fig. 62: Page 60
https://archive.org/details/PreyLimitedCollectorsEdition2006HumanHeadStudiosInc.BoxArt
Multiplayer
TO DO
- Client and server commands.
Pre-release content
Leftovers from E3 can be found in all known versions of the game. The following content is from Prey v1.4.119.
Commands
| console command | comment | ||
| displayE3Loading | display demo loading banner | ||
| resetE3Demos | reset e3 demo sequence | ||
| e3_demoIndex | |||
| e3_demoshotrelease | |||
| e3_demofadeoutrate | |||
| e3_demofadeinrate |
Configs
- e3demo.cfg
// Set for demo playback set e3_demofadeoutrate 0.005 set e3_demofadeinrate 0.005 displayE3Loading set con_noprint 1 set com_preloaddemos 0 set com_hideleveltransitions 1 set e3_demomode 1 set e3_demoshotrelease 0 bind f8 "toggle e3_demoshotrelease" // This must be bound to a function key or it gets inhibited resetE3Demos // Precache resources (These must not exceed 64k each) // Generate these with the "writePrecache" command. Split up after-the-fact. exec demos/e3precache1.cfg exec demos/e3precache2.cfg exec demos/e3precache3.cfg // Queue up our demos set e3_numdemos 16 set e3_demo0 shot_hh set e3_demo1 1_roadhouse set e3_demo2 2_ftc_fodder set e3_demo3 3_ftc_hunter set e3_demo4 4_ftc_kids set e3_demo5 5_ftc_combat_deathwalk set e3_demo6 6_ftc_combat_more set e3_demo7 7_ftc_airplane set e3_demo8 8_spindlea set e3_demo9 9_lotaa set e3_demo10 10_biolabs set e3_demo11 11_harv_harvesters set e3_demo12 12_harv_gravity set e3_demo13 13_harv_spincube set e3_demo14 14_superportal_combat set e3_demo15 15_salvageboss // Start playback sequence playdemo $e3_demo0
Misc
def/obsolete.def
Models
models/monsters/hunter/anim/e3_lookdown.md5anim
Sounds
sound/e3_demo
|
grandfatherintro_new_pt1.ogg |
|
grandfatherintro_new_pt2.ogg |
|
rumble2.ogg |
sound/e3_demo.sndshd
- e3_demo.sndshd
e3_loadmenu sound/e3_demo/loadmenu.ogg e3_grandfather_intro sound/E3_demo/GrandfatherIntro.wav sound/E3_demo/GrandfatherIntro_new.wav e3_grandfather_intro_pt1. sound/E3_demo/GrandfatherIntro_new_pt1.wav e3_grandfather_intro_pt2. sound/E3_demo/GrandfatherIntro_new_pt2.wav e3_fta_music_intro sound/e3_demo/feeding_tower_a_intro_music.ogg e3_grandfather_LOTA1a sound/E3_demo/Grandfather_LOTA1a.wav e3_grandfather_LOTA1b sound/E3_demo/Grandfather_LOTA1b.wav e3_grandfather_LOTA2a sound/E3_demo/Grandfather_LOTA2a.wav e3_grandfather_LOTA2b sound/E3_demo/Grandfather_LOTA2b.wav e3_rumble sound/e3_demo/rumble.wav e3_outro sound/e3_demo/outro.wav

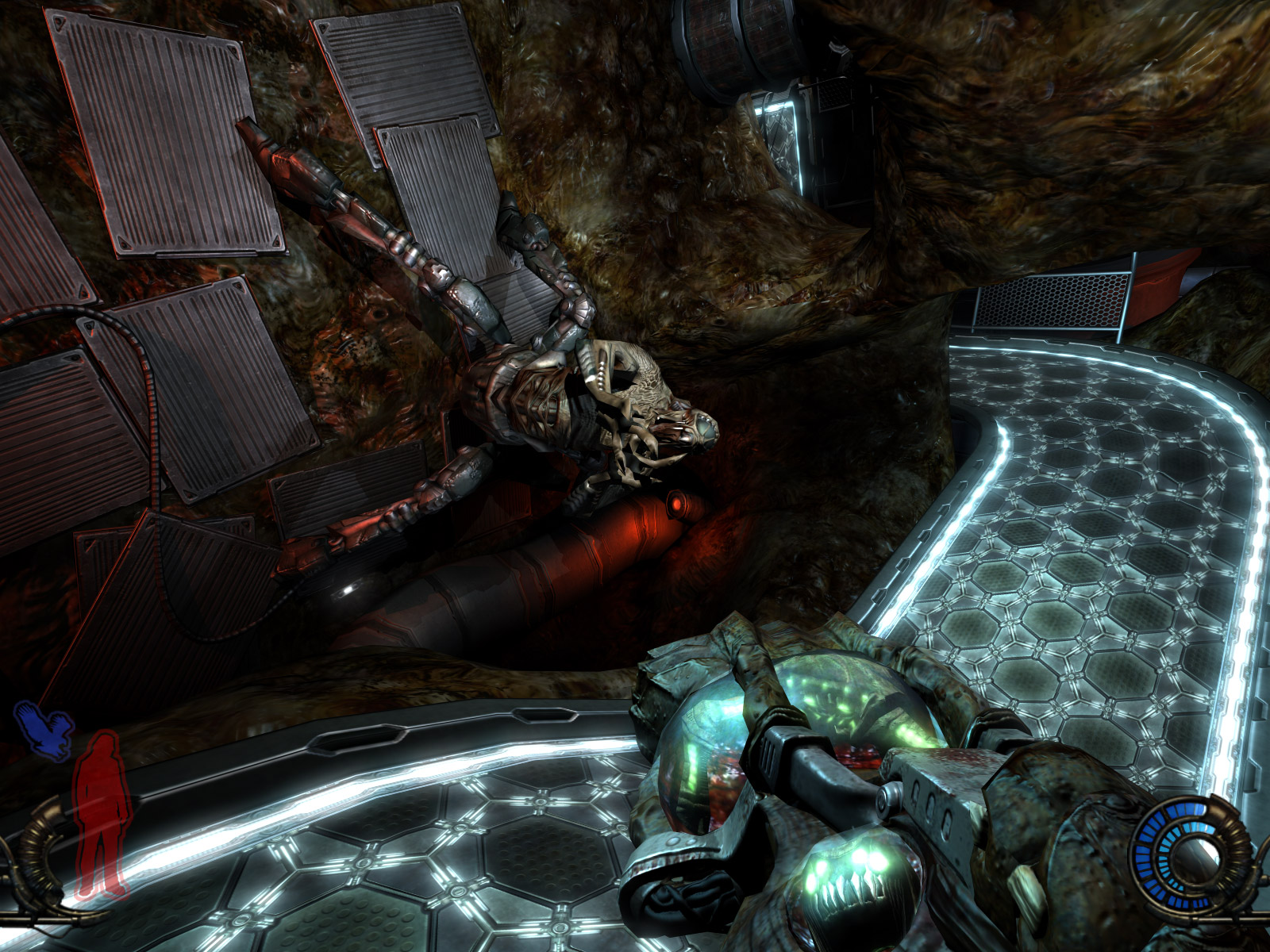

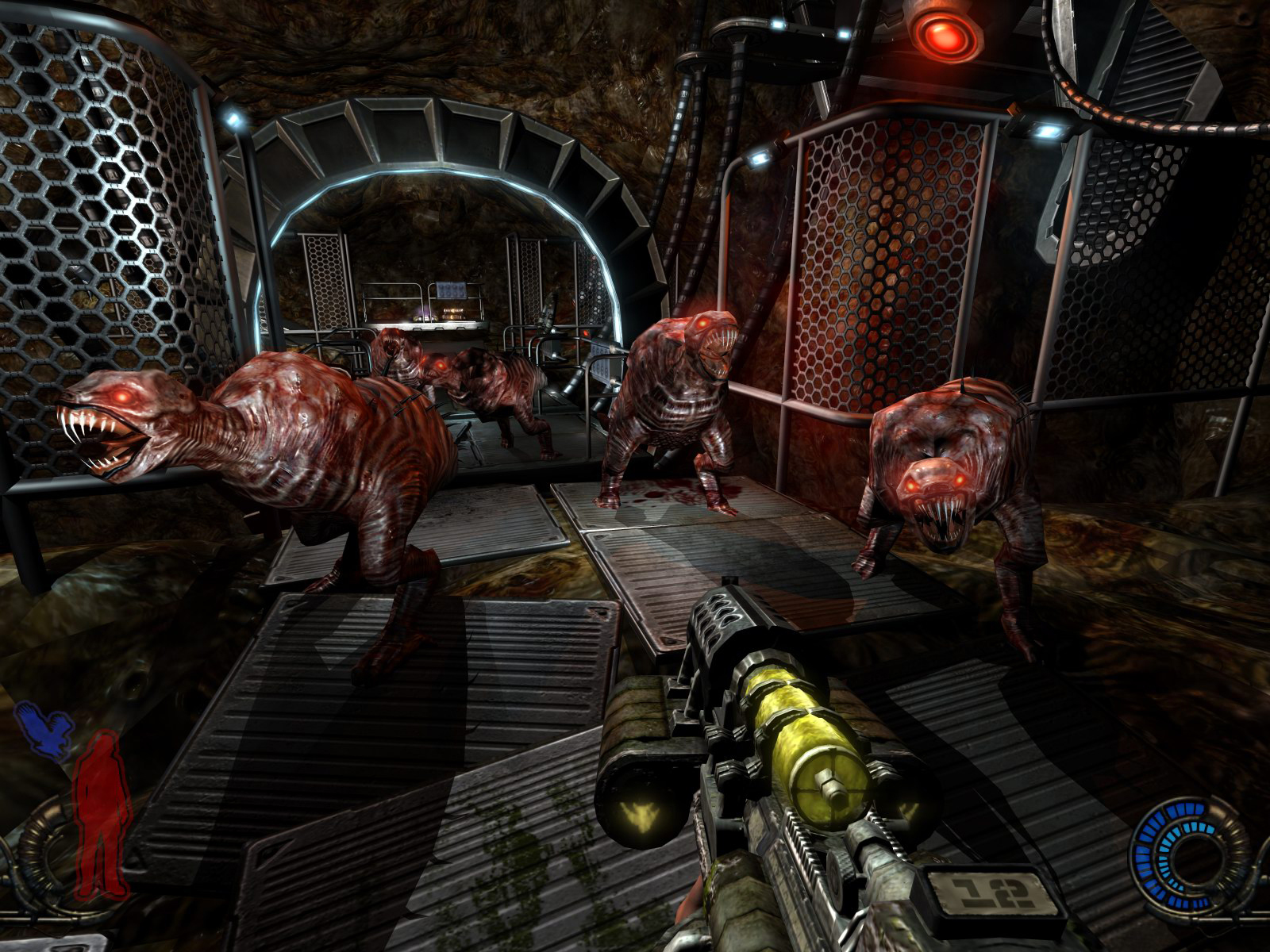

Pre-release versions
Version 1

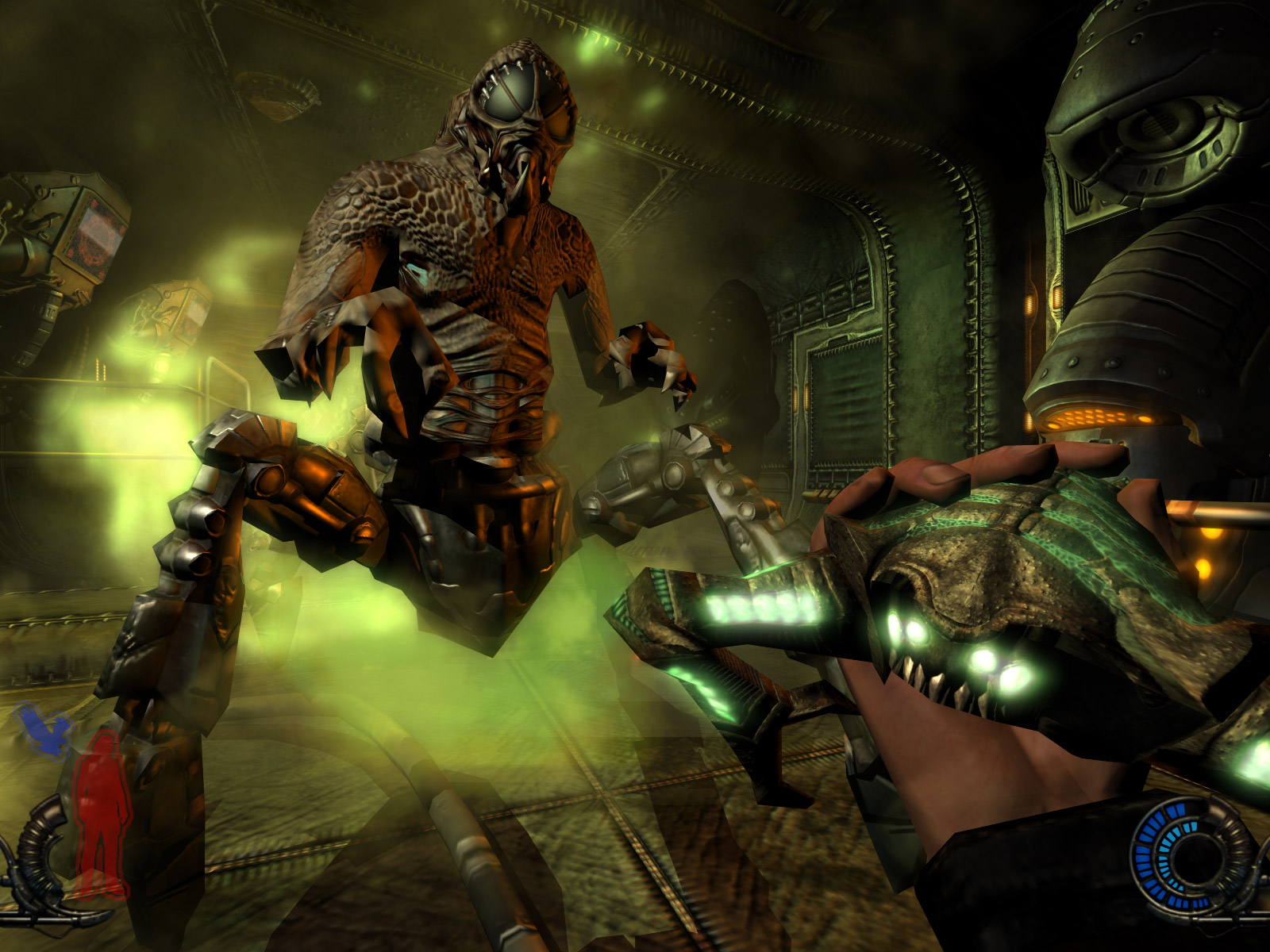

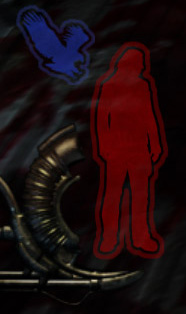

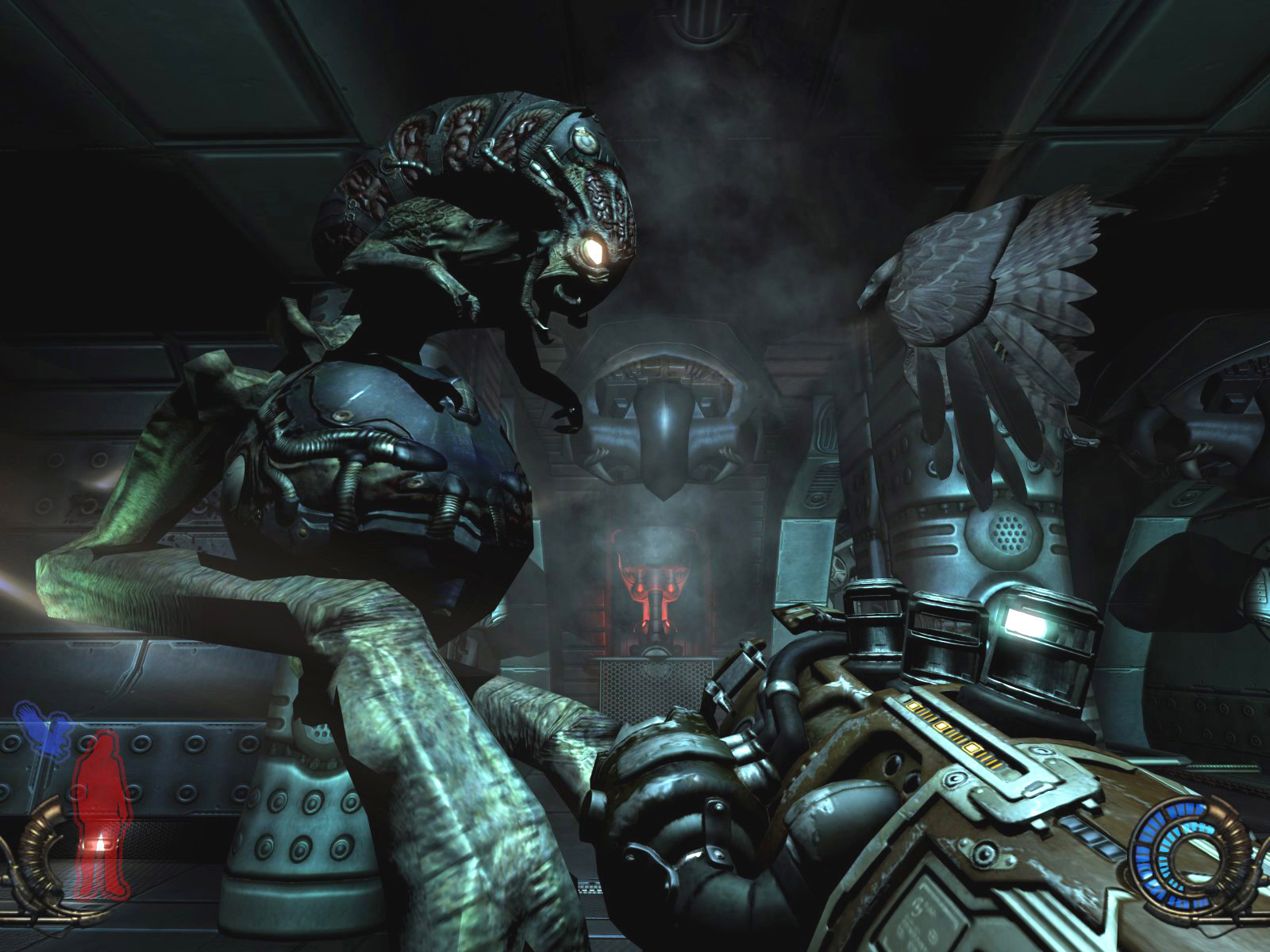

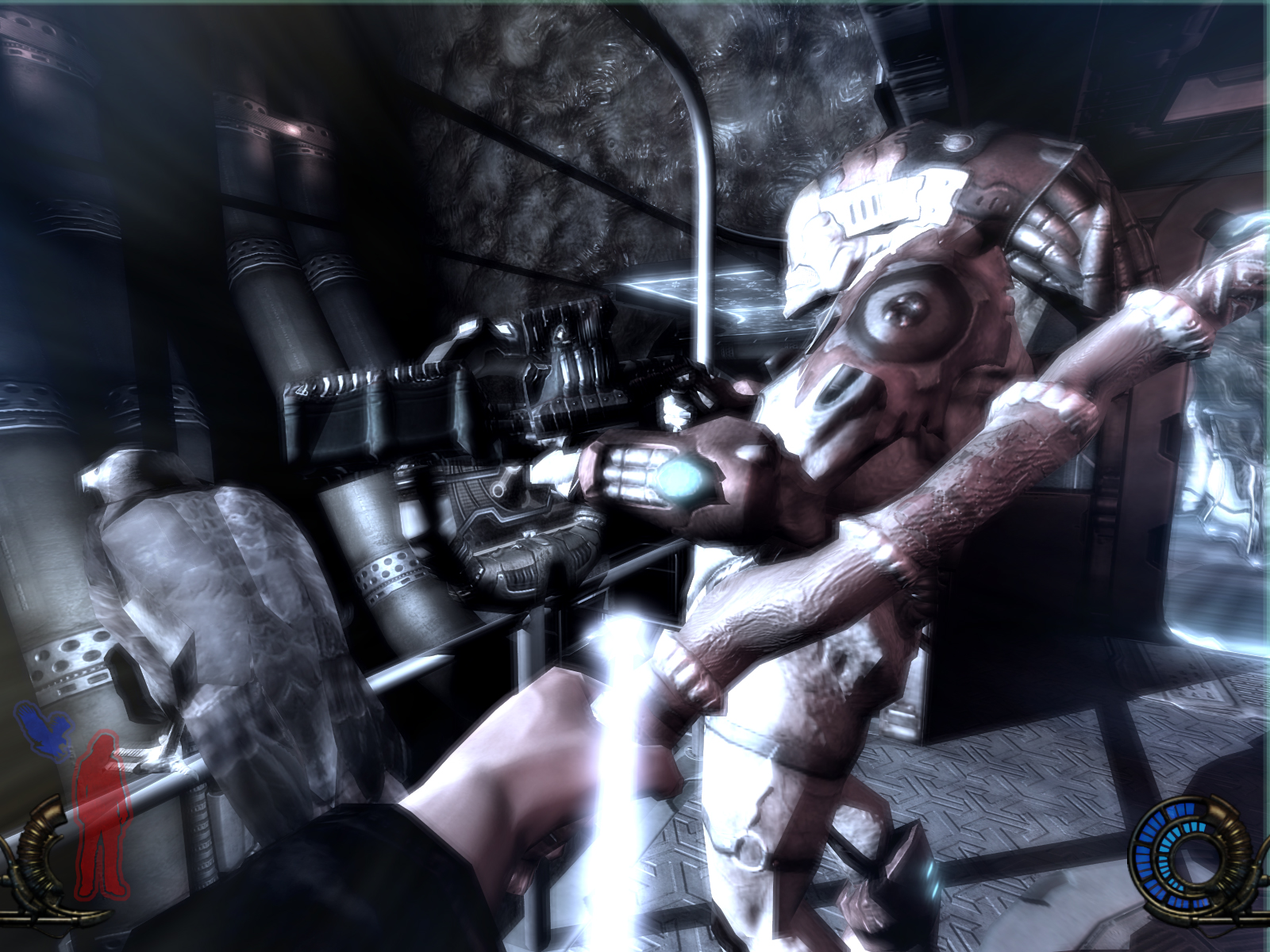

The first screenshots of the game have a different HUD.
Fig. 64: Version 1
Fig. 65: Version 2
Fig. 66: Version 1
Fig. 67: Version 2
Fig. 68: Prey 2005
Fig. 69: Prey 2005
Fig. 70: Prey 2005
Fig. 71: Prey 2005
Fig. 72: Prey 2005
Fig. 73: Prey 2005
Version 2
Videos

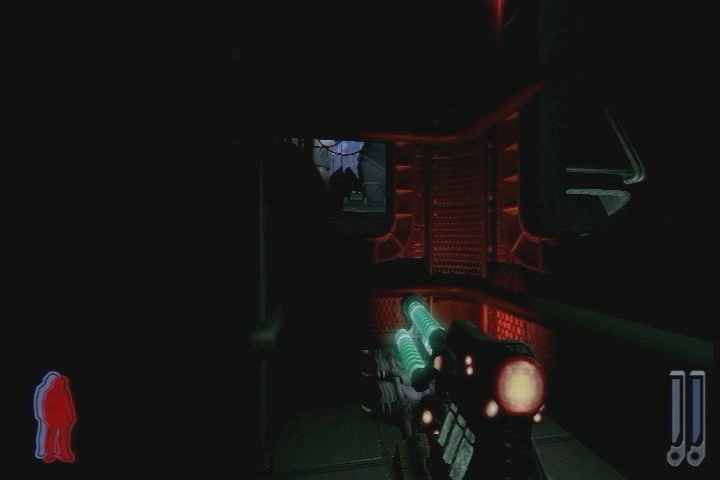

2005-06-03
Download original video: https://drive.google.com/open?id=1UR5VncSxOYJUMxJBBCLpJVsrg3ibmqoN
The assault rifle is different.
credit: optimuswhat
Version 3+
Videos
2005-08-03
Download original video: https://drive.google.com/open?id=1viQpBoAgRw-tvfs4XyROCPx6_oZF-M-4
2005-08-12
Download original video: https://drive.google.com/open?id=1Yq6oGIxeeqVUOzDE8QcKM72-sj8FMa5f
TO DO
- Research pre-release media.
Sounds
sound/ryanred/temp
|
fta_tom_youok.ogg |
sound/test
|
test.ogg |
Tools

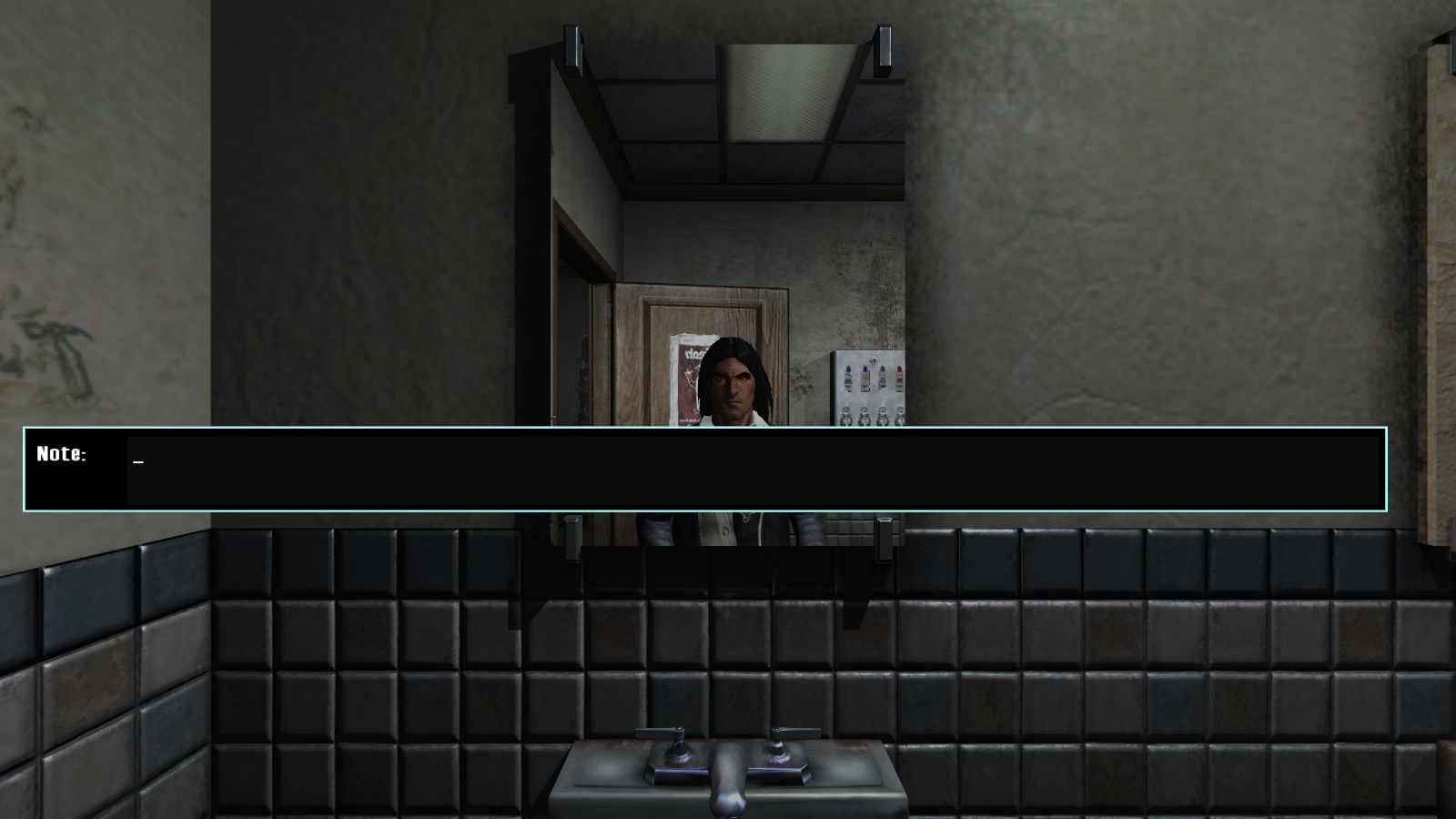

takeViewNotes
takeViewNotes2

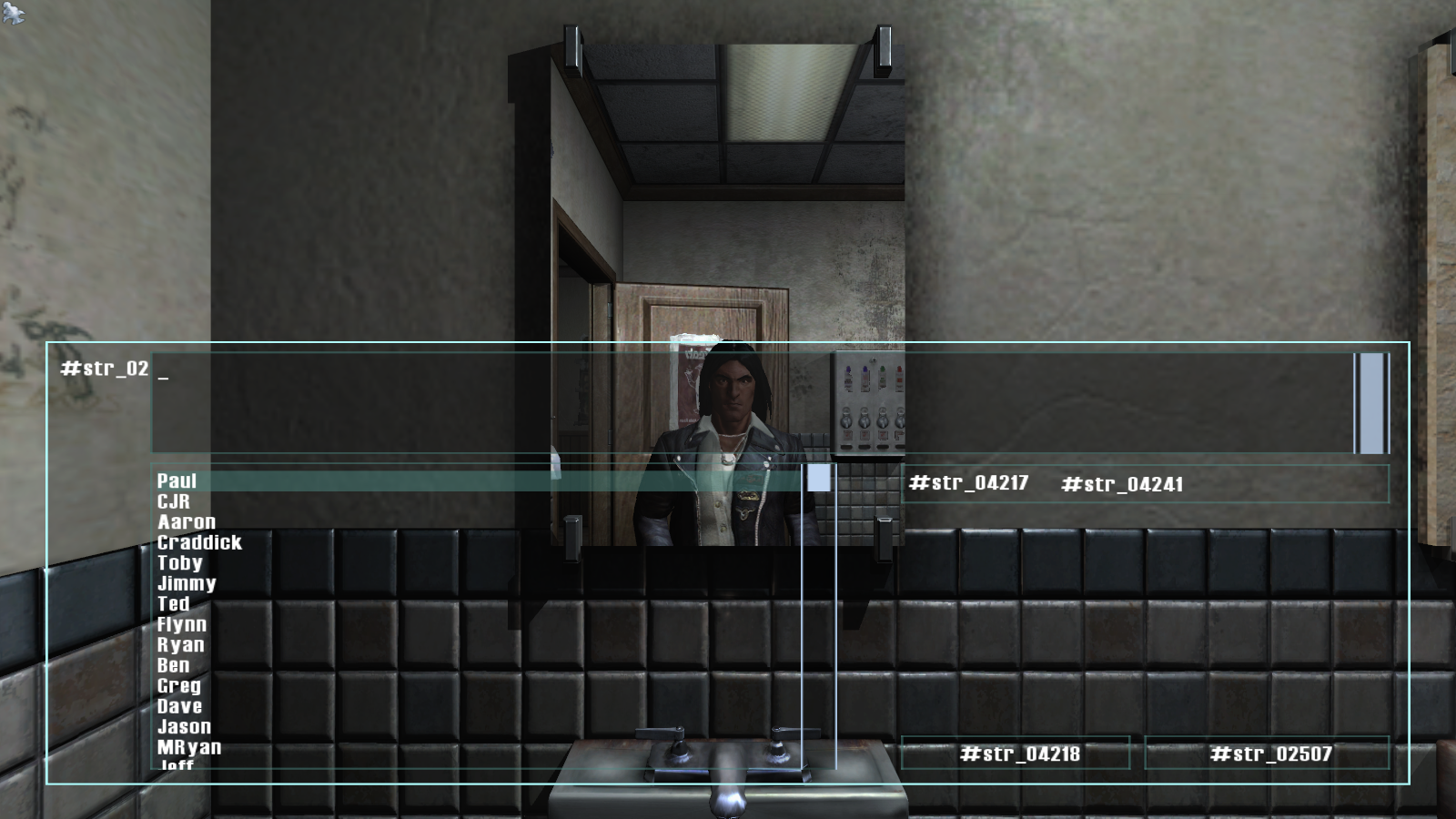

Test GUI
- console command
testgui
Usage: testgui guiname.extension
alarm.gui bsod.gui chat.gui credits.gui cursor.gui debugger.gui dialog_elhuit.gui dirlist.txt elevator.gui elevator2FloorScript.gui elevatorcall.gui eyestalk.gui forcefield.gui forcefield_beams.gui forcefield_off.gui forcefield_offdim.gui forcefield_on.gui generictranslatable.gui generic_1.gui generic_2.gui generic_3.gui generic_unlock_1.gui gravity.gui help.gui hud.gui hunterhand.gui intro.gui itemcabinet.gui keycode.gui keyenter.gui mainmenu.gui mphud.gui mpmain.gui mpmsgmode.gui msg.gui netmenu.gui nia_trans_d.gui nodraw_script1.gui noninteract_a.gui noninteract_art_bell.gui noninteract_autopsyscan.gui noninteract_b.gui noninteract_bless_mother.gui noninteract_c.gui noninteract_caution_mother_grows.gui noninteract_d.gui noninteract_e.gui noninteract_earthmoonscan.gui noninteract_earthpopscan.gui noninteract_earthscan.gui noninteract_f.gui noninteract_feedmother.gui noninteract_fighterplanescan.gui noninteract_gulfcoastscan.gui noninteract_hunters_report.gui noninteract_lascan.gui noninteract_meter.gui noninteract_mother_encroaches.gui noninteract_newyorkscan.gui noninteract_prey_is_protein.gui noninteract_protein_isfor_mother.gui noninteract_scanner.gui noninteract_slabshot.gui noninteract_westcoastscan.gui off1.gui portal_control.gui profiler.gui restart.gui roadhouse save.gui scoreboard.gui spectate.gui static.gui static_2.gui static_transparent.gui subtitles.gui takeNotes.gui wallwalk.gui biolabs\droid_recharge.gui biolabs\hideranalyze.gui biolabs\hideranalyze2.gui biolabs\jennyscan1.gui biolabs\jennyscan2.gui biolabs\mutate1.gui hud\hud_ammobars.guifragment hud\hud_damageindictor.guifragment hud\hud_devtools.guifragment hud\hud_healthbars.guifragment hud\hud_itempickups.guifragment hud\hud_lighter.guifragment hud\hud_mpmisc.guifragment hud\hud_mpreadytip.guifragment hud\hud_mpvotetips.guifragment hud\hud_mpweaponswitch.guifragment hud\hud_playeridentity.guifragment hud\hud_progressbar.guifragment hud\hud_shuttletips.guifragment hud\hud_subtitles.guifragment hud\hud_textdebug.guifragment hud\hud_tips.guifragment hud\hud_weaponswitchicons.guifragment keeperfortress\generator.gui keeperfortress\lota1.gui keeperfortress\lota2.gui keeperfortress\lota3.gui mainmenu\mainmenu_creditcontent.guifragment mainmenu\mainmenu_creditdefines.guifragment mainmenu\mainmenu_credits.guifragment mainmenu\mainmenu_exit.guifragment mainmenu\mainmenu_loadgame.guifragment mainmenu\mainmenu_mods.guifragment mainmenu\mainmenu_multiplayer.guifragment mainmenu\mainmenu_newgame.guifragment mainmenu\mainmenu_options.guifragment mainmenu\mainmenu_overlays.guifragment mainmenu\mainmenu_quitgame.guifragment mainmenu\mainmenu_savegame.guifragment mainmenu\menucolors.guifragment map\loading.gui roadhouse\arcade_teaser.gui roadhouse\blackjack.gui roadhouse\blackjack_teaser.gui roadhouse\clock.gui roadhouse\jukebox.gui roadhouse\jukeboxouter.gui roadhouse\pacman.gui roadhouse\poker.gui roadhouse\poker_teaser.gui roadhouse\slots.gui roadhouse\slots_teaser.gui roadhouse\tv.gui vehicles\railhud.gui vehicles\shuttle1.gui vehicles\shuttlehud.gui weapons\auto_cannon.gui weapons\hider.gui weapons\sniperoverlay.gui weapons\soulstripper.gui
List of console commands
gamex86.dll
| offset | command | comment | |||
| 0031DC14 | no_kill_monsters | ||||
| 0031DC28 | damage_instantdeath | ||||
| 0031DC48 | playTime | prints current playtime | |||
| 0031DC6C | testid | output the string for the specified id | |||
| 0031DC9C | nextGUI | teleport the player to the next func_static with a gui | |||
| 0031DCDC | serverNextMap | change to the next map | |||
| 0031DD04 | serverForceReady | force all players ready | |||
| 0031DD30 | serverMapRestart | restart the current game | |||
| 0031DD60 | clientVoiceChatTeam | team voice chats: clientVoiceChat <sound shader> | |||
| 0031DDA8 | clientVoiceChat | voice chats: clientVoiceChat <sound shader> | |||
| 0031DDE4 | clientMessageMode | ingame gui message mode | |||
| 0031DE10 | clientDropWeapon | drop current weapon | |||
| 0031DE38 | eraseViewNote | erase the currently displayed note | |||
| 0031DE6C | exportmodels | exports models | |||
| 0031DE8C | closeViewNotes | close the view showing any notes for this map | |||
| 0031DECC | showViewNotes | show any view notes for the current map, successive calls will cycle to the next note | |||
| 0031DF38 | recordViewNotes | record the current view position with notes | |||
| 0031DF74 | disasmScript | disassembles script | |||
| 0031DF98 | gameError | causes a game error | |||
| 0031DFB8 | clearLights | clears all lights | |||
| 0031DFD8 | saveParticles | ||||
| 0031DFE8 | saveLights | saves all lights to the .map file | |||
| 0031E018 | unbindRagdoll | unbinds the selected ragdoll | |||
| 0031E048 | bindRagdoll | binds ragdoll at the current drag position | |||
| 0031E080 | saveRagdolls | save all ragdoll poses to the .map file | |||
| 0031E0B8 | saveMoveables | save all moveables to the .map file | |||
| 0031E0EC | deleteSelected | deletes selected entity | |||
| 0031E114 | saveSelected | saves the selected entity to the .map file | |||
| 0031E150 | weaponSplat | projects a blood splat on the player weapon | |||
| 0031E188 | testDamage | tests a damage def | |||
| 0031E1A8 | aasStats | shows AAS stats | |||
| 0031E1C4 | listAnims | lists all animations | |||
| 0031E1E8 | reloadanims | reloads animations | |||
| 0031E208 | reexportmodels | reexports models | |||
| 0031E22C | collisionModelInfo | shows collision model info | |||
| 0031E25C | listCollisionModels | lists collision models | |||
| 0031E288 | script | executes a line of script | |||
| 0031E2AC | reloadScript | reloads scripts | |||
| 0031E2CC | testBlend | tests animation blending | |||
| 0031E2F4 | prevFrame | shows previous animation frame on test model | |||
| 0031E330 | nextFrame | shows next animation frame on test model | |||
| 0031E368 | prevAnim | shows previous animation on test model | |||
| 0031E39C | nextAnim | shows next animation on test model | |||
| 0031E3CC | testParticleStopTime | tests particle stop time on a test model | |||
| 0031E410 | testAnim | tests an animation | |||
| 0031E430 | keepTestModel | keeps the last test model in the game | |||
| 0031E468 | testShaderParm | sets a shaderParm on an existing testModel | |||
| 0031E4A4 | testSkin | tests a skin on an existing testModel | |||
| 0031E4D8 | testModel | tests a model | |||
| 0031E4F4 | testSave | writes out a test savegame | |||
| 0031E51C | testDeath | tests death | |||
| 0031E534 | popLight | removes the last created light | |||
| 0031E560 | testPointLight | tests a point light | |||
| 0031E584 | testLight | tests a light | |||
| 0031E5A0 | testBoneFx | tests an FX system bound to a joint | |||
| 0031E5D0 | testFx | tests an FX system | |||
| 0031E610 | listLines | lists all debug lines | |||
| 0031E634 | blinkline | blinks a debug line | |||
| 0031E654 | removeline | removes a debug line | |||
| 0031E68C | addline | adds a debug line | |||
| 0031E6A8 | killRagdolls | removes all ragdolls | |||
| 0031A6E8 | killMoveables | removes all moveables | |||
| 0031E6F8 | killMonsters | removes all monsters | |||
| 0031E73C | spawnArtificialPlayer | spawns an artificial player entity | |||
| 0031E778 | spawn | spawns a game entity | |||
| 0031E7C4 | setviewpos | sets the current view position | |||
| 0031E7F0 | getviewpos | where - prints the current view position | |||
| 0031E83C | noclip | disables collision detection for the player | |||
| 0031E870 | notarget | disables the player as a target | |||
| 0031E89C | god | enables god mode | |||
| 0031E8B4 | centerview | centers the view | |||
| 0031E8D4 | give | gives one or more items | |||
| 0031E8F4 | gameKick | same as kick, but recognizes player names | |||
| 0031E92C | addChatLine | internal use - core to game chat lines.. | |||
| 0031E97C | listSpawnArgs | list the spawn args of an entity | |||
| 0031E9B0 | listMonsters | lists monsters | |||
| 0031E9D0 | listActiveEntities | lists active game entities | |||
| 0031EA00 | listEntities | lists game entities | |||
| 0031EA24 | listThreads | lists script threads | |||
| 0031EA48 | listClasses | lists game classes | |||
| 0031EA68 | game_memory | displays game class info | |||
| 0031EA90 | testSaveGame | test a save game for a level | |||
| 0031EAC0 | writeGameState | write game state | |||
| 0031EAE4 | listTypeInfo | list type info %s 1.0 %d%s%s %s %s %s -release win-x86.00:46:41 | |||
| 0031AB54 | g_tips | allow hud tips to display | |||
| 0031AB78 | g_jawflap | controls jawflapping | |||
| 0031AB9C | g_wicked | if wicked mode is active | |||
| 0031ABC4 | g_casino | if casino mode is active | |||
| 0031ABEC | g_roadhouseCompleted | if roadhouse map has been completed once | |||
| 0031EC3C | g_debugProjections | Shows projection windings | |||
| 0031EC6C | g_showProjectileLaunchPoint | Shows position of projectile origin | |||
| 0031ECAC | p_tripwireDebug | Show tripwire trace | |||
| 0031ECD0 | p_playerPhysicsDebug | Show player physics gravity alignment info | |||
| 0031ED14 | p_camRotRateScale | 1.3 Used to scale delta time thats passed into camera interpolator | |||
| 0031ED6C | p_camInterpDebug | 1: Shows lerp info, 2: Shows slerp info | |||
| 0031EDA8 | p_iterRotMoveNumIterations | Per frame, the number of attempts to align the players bbox if unaligned to gravity | |||
| 0031EE1C | p_iterRotMoveTransDist | Distance to translate per player bbox alignment attempt | |||
| 0031EE6C | p_disableCamInterp | Disable camera interpolator | |||
| 0031EE9C | p_mountedGunDebug | Shows debug info for mountedgun | |||
| 0031EED0 | g_mbNumBlurs | Number of images used in motion blur effect | |||
| 0031EF0C | g_mbFrameSpan | Motion blur: time each image spans | |||
| 0031EF40 | g_postEventsDebug | for showing all posted events | |||
| 0031EF74 | g_debugger | In-game debugger (1=on, 2=interactive) | |||
| 0031EFA8 | g_nodormant | Disallow any dormant logic | |||
| 0031EFD0 | g_robustDormantAll | All dormant checks check all areas | |||
| 0031F008 | g_dormanttests | ||||
| 0031F018 | pm_wallwalkstepsize | Step size while wallwalking | |||
| 0031F048 | g_vehicleDebug | print out vehicle physics debug info | |||
| 0031F080 | sys_savedPosition | saved position used by getpos/putpos | |||
| 0031B0D4 | g_crosshair | Which crosshair to use (0=off) | |||
| 0031F0E8 | g_springConstant | 200000 - Modify factor for bind controller tension | |||
| 0031F130 | ai_debugBrain | ||||
| 0031F140 | ai_debugAction | ||||
| 0031F150 | ai_talonAttack | Enable Talon's attacks | |||
| 0031F178 | ai_debugPath | Draw general-purpose pathfinding debug info | |||
| 0031F1B4 | ai_hideSkipThink | Hidden monsters don't think at all | |||
| 0031F1EC | g_debugAFs | print out info on what the ragdolls are doing | |||
| 0031F228 | g_debugFX | ||||
| 0031F234 | g_showDormant | 1= Prints out msgs when an entity goes dormant | |||
| 0031B28C | ai_showNoAAS | ||||
| 0031B2D8 | ai_printSpeech | 1= Draw hunter speech sounds | |||
| 0031F2F0 | ai_skipSpeech | 1= Do not use the AI speech system | |||
| 0031F324 | ai_skipThink | 1= Do not execute hhAI::Think() fxn | |||
| 0031F358 | g_useDDA | Whether to use dda system | |||
| 0031F380 | g_debugmatter | turns on matter based debugging, 2=include wallwalk traces | |||
| 0031F3CC | g_debugimpulse | turns on impulse debugging | |||
| 0031F3F8 | sys_forceCache | force resource caching even when developer is on | |||
| 0031F43C | g_showGamePortals | draw game portal connections | |||
| 0031F470 | g_showValidSoundAreas | draw valid sound areas | |||
| 0031F4A0 | g_testModelPitch | pitch of angle of test model | |||
| 0031F4D4 | g_printDDA | Prints DDA information to the console | |||
| 0031F508 | g_trackDDA | Whether to track detailed statistics as the player goes through a level | |||
| 0031F560 | g_dumpDDA | Whether to automatically dump DDA tracking statistics on level change | |||
| 0031F5B8 | g_maxEntitiesWarning | max number of entities before warning is displayed | |||
| 0031F604 | g_showEntityCount | 1=show entity count | |||
| 0031F62C | g_expensiveMS | ms of think to be considered expensive by debugger | |||
| 0031B688 | g_runMapCycle | whether to run the map cycling script (g_mapcycle) | |||
| 0031B6CC | g_forceSingleSmokeView | ||||
| 0031B714 | g_nogore | Disables gore | |||
| 0031F718 | g_version | game version | |||
| 0031F734 | gamename | ||||
| 0031F740 | gamedate | ||||
| 0031B764 | si_name | name of the server | |||
| 0031B864 | si_usePass | enable client password checking | |||
| 0031B958 | ui_autoSwitch | auto switch weapon | |||
| 0031F9E0 | developer | ||||
| 0031BA04 | r_aspectRatio | aspect ratio of view:.0 = 4:3.1 = 16:9.2 = 16:10 | |||
| 0031FA30 | g_cinematic | skips updating entities that aren't marked 'cinematic' '1' during cinematics | |||
| 0031FA90 | g_cinematicMaxSkipTime | 600 - # of seconds to allow game to run when skipping cinematic. prevents lock-up when cinematic doesn't end | |||
| 0031BB34 | g_muzzleFlash | show muzzle flashes | |||
| 0031BB58 | g_projectileLights | show dynamic lights on projectiles | |||
| 0031BB90 | g_bloodEffects | show blood splats, sprays and gibs | |||
| 0031BBC4 | g_doubleVision | show double vision when taking damage | |||
| 0031FBE4 | g_monsters | ||||
| 0031BC08 | g_decals | show decals such as bullet holes | |||
| 0031FC20 | g_knockback | if nightmare mode is allowed | |||
| 0031FC4C | g_gravity | 1066 | |||
| 0031FC60 | g_skipFX | ||||
| 0031FC6C | g_skipParticles | ||||
| 0031BC94 | g_ragdollDecals | ragdolls leave blood splats | |||
| 0031FCA8 | g_disasm | disassemble script into base/script/disasm.txt on the local drive when script is compiled | |||
| 0031FD14 | g_debugBounds | checks for models with bounds > 2048 | |||
| 0031FD4C | g_debugAnim | displays information on which animations are playing on the specified entity number. set to -1 to disable | |||
| 0031FDC4 | g_debugMove | ||||
| 0031FDD0 | g_debugDamage | ||||
| 0031FDE0 | g_debugWeapon | ||||
| 0031FDF0 | g_debugScript | ||||
| 0031FE00 | g_debugMover | ||||
| 0031FE10 | g_debugTriggers | ||||
| 0031FE20 | g_debugCinematic | ||||
| 0031FE34 | g_stopTime | ||||
| 0031FE40 | g_showPVS | ||||
| 0031FE4C | g_showTargets | draws entities and thier targets. hidden entities are drawn grey | |||
| 0031FEA4 | g_showTriggers | draws trigger entities (orange) and thier targets (green). disabled triggers are drawn grey | |||
| 0031FF18 | g_showCollisionWorld | ||||
| 0031FF30 | g_showCollisionModels | ||||
| 0031FF48 | g_showCollisionTraces | ||||
| 0031FF60 | g_maxShowDistance | ||||
| 0031FF74 | g_showEntityInfo | ||||
| 0031FF88 | g_showviewpos | ||||
| 0031BFB0 | g_showcamerainfo | displays the current frame # for the camera when playing cinematics | |||
| 0031FFF4 | g_showTestModelFrame | displays the current animation and frame # for testmodels | |||
| 0031D798 | g_showPlayerShadow | enables shadow of player model | |||
| 0031D7CC | g_showHud | ||||
| 0031D7D8 | g_showProjectilePct | enables display of player hit percentage | |||
| 0031D818 | g_showBrass | enables ejected shells from weapon | |||
| 0031DB08 | g_exportMask | ||||
| 0031DD3C | g_voteFlags | vote flags | |||
| 00320048 | g_showActiveEntities | draws boxes around thinking entities. dormant entities (outside of pvs) are drawn yellow. non-dormant are green | |||
| 003200D4 | g_showEnemies | draws boxes around monsters that have targeted the the player | |||
| 00320124 | g_artificialPlayerCount | spawns artificial players | |||
| 00320158 | g_frametime | displays timing information for each game frame | |||
| 00320194 | g_timeEntities | when non-zero, shows entities whose think functions exceeded the # of milliseconds specified | |||
| 00320208 | ai_debugScript | displays script calls for the specified monster entity number | |||
| 00320258 | ai_debugMove | draws movement information for monsters | |||
| 00320290 | ai_debugTrajectory | draws trajectory tests for monsters | |||
| 003202C8 | ai_testPredictPath | ||||
| 003202DC | ai_showCombatNodes | draws attack cones for monsters | |||
| 00320310 | ai_showPaths | draws path_* entities | |||
| 00320338 | ai_showObstacleAvoidance | draws obstacle avoidance information for monsters. if 2, draws obstacles for player, as well | |||
| 003203B8 | ai_blockedFailSafe | enable blocked fail safe handling | |||
| 003203F0 | g_dvTime | ||||
| 003203FC | g_dvAmplitude | 0.001 | |||
| 00320414 | g_dvFrequency | ||||
| 00320424 | g_kickTime | ||||
| 00320430 | g_kickAmplitude | 0.0001 | |||
| 00320448 | g_blobTime | ||||
| 00320454 | g_blobSize | ||||
| 00320460 | g_testHealthVision | ||||
| 00320474 | g_editEntityMode | 0 = off.1 = lights.2 = sounds.3 = articulated figures.4 = particle systems.5 = monsters.6 = entity names.7 = entity models | |||
| 00320504 | g_dragEntity | allows dragging physics objects around by placing the crosshair over them and holding the fire button | |||
| 00320580 | g_dragDamping | ||||
| 00320590 | g_dragShowSelection | ||||
| 003205A4 | g_dropItemRotation | ||||
| 003205B8 | g_vehicleVelocity | ||||
| 003205CC | g_vehicleForce | 50000 | |||
| 003205E4 | g_vehicleSuspensionUp | ||||
| 003205FC | g_vehicleSuspensionDown | ||||
| 00320614 | g_vehicleSuspensionKCompress | ||||
| 00320634 | g_vehicleSuspensionDamping | ||||
| 00320650 | g_vehicleTireFriction | ||||
| 00320668 | ik_enable | enable IK | |||
| 00320680 | ik_debug | show IK debug lines | |||
| 003206A0 | af_useLinearTime | use linear time algorithm for tree-like structures | |||
| 003206E8 | af_useImpulseFriction | use impulse based contact friction | |||
| 00320724 | af_useJointImpulseFriction | use impulse based joint friction | |||
| 00320764 | af_useSymmetry | use constraint matrix symmetry | |||
| 00320794 | af_skipSelfCollision | skip self collision detection | |||
| 003207CC | af_skipLimits | skip joint limits | |||
| 003207F0 | af_skipFriction | skip friction | |||
| 00320810 | af_forceFriction | force the given friction value | |||
| 00320844 | af_maxLinearVelocity | maximum linear velocity | |||
| 00320874 | af_maxAngularVelocity | 1.57 - maximum angular velocity | |||
| 003208B0 | af_timeScale | scales the time | |||
| 003208D0 | af_jointFrictionScale | scales the joint friction | |||
| 00320904 | af_contactFrictionScale | scales the contact friction | |||
| 00320938 | af_highlightBody | name of the body to highlight | |||
| 0032096C | af_highlightConstraint | name of the constraint to highlight | |||
| 003209A8 | af_showTimings | show articulated figure cpu usage | |||
| 003209DC | af_showConstraints | show constraints | |||
| 00320A04 | af_showConstraintNames | show constraint names | |||
| 00320A34 | af_showConstrainedBodies | show the two bodies contrained by the highlighted constraint | |||
| 00320A90 | af_showPrimaryOnly | show primary constraints only | |||
| 00320AC4 | af_showTrees | show tree-like structures | |||
| 00320AF0 | af_showLimits | show joint limits | |||
| 00320B14 | af_showBodies | show bodies | |||
| 00320B30 | af_showBodyNames | show body names | |||
| 00320B54 | af_showMass | show the mass of each body | |||
| 00320B7C | af_showTotalMass | show the total mass of each articulated figure | |||
| 00320BC0 | af_showInertia | show the inertia tensor of each body | |||
| 00320BF8 | af_showVelocity | show the velocity of each body | |||
| 00320C28 | af_showActive | show tree-like structures of articulated figures not at rest | |||
| 00320C78 | af_testSolid | test for bodies initially stuck in solid | |||
| 00320CB4 | rb_showTimings | show rigid body cpu usage | |||
| 00320CE0 | rb_showBodies | show rigid bodies | |||
| 00320D04 | rb_showMass | show the mass of each rigid body | |||
| 00320D34 | rb_showInertia | show the inertia tensor of each rigid body | |||
| 00320D70 | rb_showVelocity | show the velocity of each rigid body | |||
| 00320DA8 | rb_showActive | show rigid bodies that are not at rest | |||
| 00320DE0 | pm_jumpheight | 48 - approximate hieght the player can jump | |||
| 00320E1C | pm_stepsize | maximum height the player can step up without jumping | |||
| 00320E60 | pm_crouchspeed | 80 - speed the player can move while crouched | |||
| 00320EA0 | pm_walkspeed | 140 - speed the player can move while walking | |||
| 00320EDC | pm_runspeed | 220 - speed the player can move while running | |||
| 00320F14 | pm_noclipspeed | speed the player can move while in noclip | |||
| 00320F50 | pm_spectatespeed | 450 - speed the player can move while spectating | |||
| 00320F94 | pm_spectatebbox | size of the spectator bounding box | |||
| 00320FC8 | pm_usecylinder | use a cylinder approximation instead of a bounding box for player collision detection | |||
| 00321030 | pm_minviewpitch | -89 - amount player's view can look up (negative values are up | |||
| 00321080 | pm_maxviewpitch | 89 - amount player's view can look down 24 - length of time player can run | |||
| 003210DC | pm_staminathreshold | when stamina drops below this value, player gradually slows to a walk | |||
| 00321138 | pm_staminarate | rate that player regains stamina. divide pm_stamina by this value to determine how long it takes to fully recharge | |||
| 003211BC | pm_crouchheight | 38 - height of player's bounding box while crouched | |||
| 00321200 | pm_crouchviewheight | height of player's view while crouched | |||
| 0032123C | pm_normalheight | 74 - height of player's bounding box while standing | |||
| 00321280 | pm_normalviewheight | 68 - height of player's view while standing | |||
| 003212C0 | pm_deadheight | height of player's bounding box while dead | |||
| 003212FC | pm_deadviewheight | height of player's view while dead | |||
| 00321334 | pm_crouchrate | 0.87 - time it takes for player's view to change from standing to crouching | |||
| 00321398 | pm_bboxwidth | x/y size of player's bounding box | |||
| 003213CC | pm_crouchbob | bob much faster when crouched | |||
| 003213FC | pm_walkbob | bob slowly when walking | |||
| 00321420 | pm_runbob | bob faster when running | |||
| 00321444 | pm_runpitch | 0.002 | |||
| 00321458 | pm_runroll | ||||
| 00321464 | pm_bobup | ||||
| 00321470 | pm_bobpitch | ||||
| 0032147C | pm_bobroll | ||||
| 00321488 | pm_thirdPersonRange | camera distance from player in 3rd person | |||
| 003214C8 | pm_thirdPersonHeight | height of camera from normal view height in 3rd person | |||
| 00321518 | pm_thirdPersonAngle | direction of camera from player in 3rd person in degrees (0 = behind player, 180 = in front | |||
| 00321590 | pm_thirdPersonClip | clip third person view into world space. | |||
| 003215CC | pm_thirdPerson | enables third person view | |||
| 003215F8 | pm_thirdPersonDeath | enables third person view when player dies | |||
| 00321638 | pm_modelView | draws camera from POV of player model (1 = always, 2 = when dead) | |||
| 0032168C | pm_air | 1800 - how long in milliseconds the player can go without air before he starts taking damage | |||
| 003216F8 | pm_thirdPersonDeathMP | enables third person view when player dies in mp | |||
| 00321744 | g_showAimHealth | health display of target (gameplay testing) | |||
| 00321830 | g_gunX | ||||
| 00321838 | g_gunY | ||||
| 00321840 | g_gunZ | ||||
| 00321848 | g_viewNodalX | ||||
| 00321858 | g_viewNodalZ | ||||
| 00321868 | g_fov | ||||
| 00321870 | g_skipViewEffects | skip damage and other view effects | |||
| 003218A8 | g_mpWeaponAngleScale | Control the weapon sway in MP | |||
| 003218E0 | g_testParticle | test particle visualation, set by the particle editor | |||
| 00321928 | g_testParticleName | name of the particle being tested by the particle editor | |||
| 00321978 | g_testModelRotate | test model rotation speed | |||
| 003219A8 | g_testPostProcess | name of material to draw over screen | |||
| 003219E4 | g_testModelAnimate | test model animation,.0 = cycle anim with origin reset.1 = cycle anim with fixed origin.2 = cycle anim with continuous origin.3 = frame by frame with continuous origin.4 = play anim once | |||
| 00321AB4 | g_testModelBlend | number of frames to blend | |||
| 00321AE4 | g_testDeath | ||||
| 00321B00 | g_flushSave | 1 = don't buffer file writing for save games | |||
| 00321B3C | aas_test | ||||
| 00321B48 | aas_showAreas | ||||
| 00321B58 | aas_showPath | ||||
| 00321B68 | aas_showFlyPath | ||||
| 00321B78 | aas_showWallEdges | ||||
| 00321B8C | aas_showHideArea | ||||
| 00321BA0 | aas_pullPlayer | ||||
| 00321BB0 | aas_randomPullPlayer | ||||
| 00321BC8 | aas_goalArea | ||||
| 00321BD8 | aas_showPushIntoArea | ||||
| 00321C00 | password | client password used when connecting | |||
| 00321C80 | g_TDMArrows | draw arrows over teammates in team deathmatch | |||
| 00321CBC | g_balanceTDM | maintain even teams | |||
| 00321CE0 | net_clientPredictGUI | test guis in networking without prediction | |||
PREY.exe
| offset | command | comment | |||
| 003AD9F0 | memstatsprocess | prints out process memory usage | |||
| 003ADA20 | memstats | prints out system memory usage | |||
| 003ADA4C | finishBuild | finishes the build process | |||
| 003ADA74 | startBuild | prepares to make a build | |||
| 003ADA9C | localizeMapsTest | Create test files that shows which strings will be localized | |||
| 003ADAF0 | localizeGuiParmsTest | Create test files that show gui parms localized and ignored | |||
| 003ADB48 | localizeSubs | localize subtitles | |||
| 003ADB6C | reloadLanguage | reload language dict | |||
| 003ADB94 | localizeMaps | localize maps | |||
| 003ADBB4 | localizeGuis | localize guis | |||
| 003ADBD4 | testSIMD | test SIMD code | |||
| 003ADBF0 | listDictValues | lists all values used by dictionaries | |||
| 003ADC28 | listDictKeys | lists all keys used by dictionaries | |||
| 003ADC5C | showDictMemory | shows memory used by dictionaries | |||
| 003ADC90 | showStringMemory | shows memory used by strings | |||
| 003ADCC4 | memoryDumpCompressed | creates a compressed memory dump | |||
| 003ADCC4 | memoryDump | creates a memory dump | |||
| 003ADD24 | printMemInfo | prints memory debugging data | |||
| 003ADD54 | materialeditor | launches the Material Editor | |||
| 003ADD74 | debugger | launches the Script Debugger | |||
| 003ADD94 | editPDAs | launches the in-game PDA Editor | |||
| 003ADDC0 | editGUIs | launches the GUI Editor | |||
| 003ADDE4 | editScripts | launches the in-game Script Editor | |||
| 003ADE14 | editParticles | launches the in-game Particle Editor | |||
| 003ADE4C | editAFs | launches the in-game Articulated Figure Editor | |||
| 003ADE84 | editDecls | launches the in-game Declaration Editor | |||
| 003ADEB8 | editSounds | launches the in-game Sound Editor | |||
| 003ADEE8 | editLights | launches the in-game Light Editor | |||
| 003ADF18 | editor | launches the level editor Radiant | |||
| 003ADF3C | roq | encodes a roq file | |||
| 003ADF54 | runReach | calculates reachability for an AAS file | |||
| 003ADF88 | runAASDir | compiles AAS files for all maps in a folder | |||
| 003ADFC0 | runAAS | compiles an AAS file for a map | |||
| 003ADFE8 | renderbumpFlat | renders a flat bump map | |||
| 003AE034 | writeBindings | writes a bindings file | |||
| 003AE05C | execImageQuality | sets cvars based on com_imageQuality | |||
| 003AE098 | setMachineSpec | detects system capabilities and sets com_machineSpec to appropriate value | |||
| 003AE0F4 | reloadEngine | reloads the engine down to including the file system | |||
| 003AE13C | writeConfig | writes a config file | |||
| 003AE160 | exit | exits the game | |||
| 003AE178 | quit | quits the game | |||
| 003AE190 | freeze | freezes the game for a number of seconds | |||
| 003AE1C4 | crash | causes a crash | |||
| 003AE1DC | error | causes an error | |||
| 003AE21C | win_outputDebugString | Prey initialization | |||
| 003AE248 | si_version | engine version | |||
| 003AE264 | com_skipRenderer | skip the renderer completely | |||
| 003AE32C | com_memoryMarker | used as a marker for memory stats | |||
| 003AE364 | com_preciseTic | run one game tick every async thread update | |||
| 003AE3A0 | com_asyncInput | sample input from the async thread | |||
| 003AE3D4 | com_asyncSound | 0: mix sound inline, 1: memory mapped async mix, 2: callback mixing, 3: write async mix | |||
| 003AE440 | com_forceGenericSIMD | force generic platform independent SIMD | |||
| 003AE480 | developer | developer mode | |||
| 003AE49C | com_allowConsole | allow toggling console with the tilde key | |||
| 003AE4DC | com_speeds | show engine timings | |||
| 003AE4FC | com_showFPS | show frames rendered per second | |||
| 003AE528 | com_showMemoryUsage | show total and per frame memory usage | |||
| 003AE564 | com_showAsyncStats | show async network stats | |||
| 003AE594 | com_showSoundDecoders | show sound decoders | |||
| 003AE5C0 | com_timestampPrints | print time with each console print, 1 = msec, 2 = sec | |||
| 003AE60C | timescale | scales the time | |||
| 003AE628 | logFile | 1 = buffer log, 2 = flush after each print | |||
| 003AE65C | logFileName | name of log file, if empty, qconsole.log will be used | |||
| 003AE6A0 | com_makingBuild | 1 when making a build | |||
| 003AE6C8 | com_updateLoadSize | update the load size after loading a map | |||
| 003AE708 | com_videoRam | holds the last amount of detected video ram | |||
| 003AE744 | com_precache | if on, precaches needed resources | |||
| 003AE778 | com_profanity | if off, blocks profanity | |||
| 003AE7A4 | cl_punkbuster | is client side PunkBuster enabled? | |||
| 003AE7D8 | sv_punkbuster | is server side PunkBuster enabled? | |||
| 003AE80C | com_product_lang_ext | Extension to use when creating language files | |||
| 003AE854 | com_showErrors | 0 to turn off spawning of notepad and console after exit | |||
| 003C2DE4 | forceBuildImage | Forces the specified image to be included in makedds.bat | |||
| 003C2E30 | reloadSurface | reloads the decl and images for selected surface | |||
| 003C2E74 | listModes | lists all video modes | |||
| 003C2E98 | listRenderLightDefs | lists the light defs | |||
| 003C2EC4 | listRenderEntityDefs | lists the entity defs | |||
| 003C2EF4 | vid_restart | restarts renderSystem | |||
| 003C2F18 | showTriSurfMemory | shows memory used by triangle surfaces | |||
| 003C2F54 | showInteractionMemory | shows memory used by interactions | |||
| 003C2F90 | regenerateWorld | regenerates all interactions | |||
| 003C2FC0 | reportImageDuplication | checks all referenced images for duplications | |||
| 003C3008 | reportSurfaceAreas | lists all used materials sorted by surface area | |||
| 003C304C | testMaterial | tests a material | |||
| 003C3070 | testVideo | displays the given cinematic | |||
| 003C309C | testImage | displays the given image centered on screen | |||
| 003C30D4 | modulateLights | modifies shader parms on all lights | |||
| 003C3108 | gfxInfo | show graphics info | |||
| 003C3124 | benchmark | ||||
| 003C3130 | makeAmbientMap | makes an ambient map | |||
| 003C3158 | envshot | takes an environment shot | |||
| 003C317C | pbufferinit | circumvent a driver bug by pre-initializing the pbuffer | |||
| 003C31C0 | pbuffershot | takes a screenshot using the pbuffer | |||
| 003C31F4 | screenshot | takes a screenshot | |||
| 003C3214 | touchGui | touches a gui | |||
| 003C3230 | listGuis | lists guis | |||
| 003C3248 | reloadGuis | reloads guis | |||
| 003C3264 | sizeDown | makes the rendered view smaller | |||
| 003C3290 | sizeUp | makes the rendered view larger | |||
| 003C32B8 | MakeMegaTexture | processes giant images | |||
| 003C33C0 | r_useLightPortalFlow | use a more precise area reference determination.number of antialiasing samples..video mode number | |||
| 003C343C | r_displayRefresh | optional display refresh rate option for vid mode | |||
| 003C34A4 | r_customWidth | 720 - custom screen width. set r_mode to -1 to activate | |||
| 003C34EC | r_customHeight | 486 - custom screen height. set r_mode to -1 to activate | |||
| 003C3534 | r_singleTriangle | only draw a single triangle per primitive | |||
| 003C3574 | r_checkBounds | compare all surface bounds with precalculated ones | |||
| 003C35B8 | r_noBufferDword | disable screenshot dword alignment | |||
| 003C35EC | r_useNV20MonoLights | use pass optimization for mono lights | |||
| 003C3628 | r_useConstantMaterials | use pre-calculated material registers if possible | |||
| 003C3674 | r_useTripleTextureARB | cards with 3+ texture units do a two pass instead of three pass | |||
| 003C36D0 | r_useSilRemap | consider verts with the same XYZ, but different ST the same for shadows | |||
| 003C3728 | r_useNodeCommonChildren | stop pushing reference bounds early when possible | |||
| 003C3774 | r_useShadowProjectedCull | discard triangles outside light volume before shadowing | |||
| 003C37C8 | r_useShadowVertexProgram | do the shadow projection in the vertex program on capable cards | |||
| 003C3828 | r_useShadowSurfaceScissor | scissor shadows by the scissor rect of the interaction surfaces | |||
| 003C3888 | r_useInteractionTable | create a full entityDefs * lightDefs table to make finding interactions faster | |||
| 003C38F0 | r_useTurboShadow | use the infinite projection with W technique for dynamic shadows | |||
| 003C394C | r_useTwoSidedStencil | do stencil shadows in one pass with different ops on each side | |||
| 003C39A4 | r_useDeferredTangents | defer tangents calculations after deform | |||
| 003C39E8 | r_useCachedDynamicModels | cache snapshots of dynamic models | |||
| 003C3A28 | r_useVertexBuffers | use ARB_vertex_buffer_object for vertexes | |||
| 003C3A68 | r_useIndexBuffers | use ARB_vertex_buffer_object for indexes | |||
| 003C3AA8 | r_useStateCaching | avoid redundant state changes in GL_*() calls | |||
| 003C3AEC | r_useInfiniteFarZ | use the no-far-clip-plane trick | |||
| 003C3B20 | r_znear | near Z clip plane distance | |||
| 003C3B44 | r_ignoreGLErrors | ignore GL errors | |||
| 003C3B6C | r_finish | force a call to glFinish() every frame | |||
| 003C3BA0 | r_swapInterval | changes wglSwapIntarval | |||
| 003C3BC8 | r_gamma | changes gamma tables | |||
| 003C3BE8 | r_renderer | hardware specific renderer path to use | |||
| 003C3C1C | r_jitter | randomly subpixel jitter the projection matrix | |||
| 003C3C58 | r_skipSuppress | ignore the per-view suppressions | |||
| 003C3C8C | r_skipPostProcess | skip all post-process renderings | |||
| 003C3CC4 | r_skipLightScale | don't do any post-interaction light scaling, makes things dim on low-dynamic range cards | |||
| 003C3D34 | r_skipInteractions | skip all light/surface interaction drawing | |||
| 003C3D74 | r_skipDynamicTextures | don't dynamically create textures | |||
| 003C3DB0 | r_skipCopyTexture | do all rendering, but don't actually copyTexSubImage2D | |||
| 003C3DFC | r_skipBackEnd | don't draw anything | |||
| 003C3E20 | r_skipRender | skip 3D rendering, but pass 2D | |||
| 003C3E50 | r_skipRenderContext | NULL the rendering context during backend 3D rendering | |||
| 003C3E9C | r_skipTranslucent | skip the translucent interaction rendering | |||
| 003C3EDC | r_skipAmbient | bypasses all non-interaction drawing | |||
| 003C3F4C | r_skipBlendLights | skip all blend lights | |||
| 003C3F78 | r_skipFogLights | skip all fog lights | |||
| 003C3F9C | r_skipDeforms | leave all deform materials in their original state | |||
| 003C3FE0 | r_skipFrontEnd | bypasses all front end work, but 2D gui rendering still draws | |||
| 003C4030 | r_skipUpdates | 1 = don't accept any entity or light updates, making everything static | |||
| 003C4088 | r_skipOverlays | skip overlay surfaces | |||
| 003C40B0 | r_skipSpecular | use black for specular1 | |||
| 003C40D8 | r_skipBump | uses a flat surface instead of the bump map | |||
| 003C4110 | r_skipDiffuse | use black for diffuse | |||
| 003C4138 | r_skipROQ | skip ROQ decoding | |||
| 003C4158 | r_ignore | used for random debugging without defining new vars | |||
| 003C4198 | r_ignore2 | ||||
| 003C41A4 | r_usePreciseTriangleInteractions | 1 = do winding clipping to determine if each ambiguous tri should be lit | |||
| 003C4214 | r_useCulling | 0 = none, 1 = sphere, 2 = sphere + box | |||
| 003C424C | r_useLightCulling | 0 = none, 1 = box, 2 = exact clip of polyhedron faces, 3 = also areas | |||
| 003C42A8 | r_useLightScissors | 1 = use custom scissor rectangle for each light | |||
| 003C42EC | r_useClippedLightScissors | 0 = full screen when near clipped, 1 = exact when near clipped, 2 = exact always | |||
| 003C435C | r_useEntityCulling | 0 = none, 1 = box | |||
| 003C4384 | r_useEntityScissors | 1 = use custom scissor rectangle for each entity | |||
| 003C43CC | r_useInteractionCulling | 1 = cull interactions | |||
| 003C43FC | r_useInteractionScissors | 1 = use a custom scissor rectangle for each shadow interaction, 2 = also crop using portal scissors | |||
| 003C447C | r_useShadowCulling | try to cull shadows from partially visible lights | |||
| 003C44C4 | r_useFrustumFarDistance | if != 0 force the view frustum far distance to this distance | |||
| 003C451C | r_logFile | of frames to emit GL logs | |||
| 003C454C | r_clear | force screen clear every frame, 1 = purple, 2 = black, 'r g b' = custom | |||
| 003C45A0 | r_offsetfactor | polygon offset parameter | |||
| 003C45CC | r_offsetunits | -600 | |||
| 003C45E4 | r_shadowPolygonOffset | bias value added to depth test for stencil shadow drawing | |||
| 003C4638 | r_shadowPolygonFactor | scale value for stencil shadow drawingv | |||
| 003C4678 | r_frontBuffer | draw to front buffer for debugging | |||
| 003C46AC | r_skipSubviews | 1 = don't render any gui elements on surfaces | |||
| 003C46EC | r_skipGuiShaders | 1 = skip all gui elements on surfaces, 2 = skip drawing but still handle events, 3 = draw but skip events | |||
| 003C476C | r_skipParticles | 1 = skip all particle systems | |||
| 003C479C | r_subviewOnly | 1 = don't render main view, allowing subviews to be debugged | |||
| 003C47FC | r_testGamma | if > 0 draw a grid pattern to test gamma levels | |||
| 003C4838 | r_testGammaBias | ||||
| 003C4848 | r_testStepGamma | ||||
| 003C4858 | r_lightScale | all light intensities are multiplied by this | |||
| 003C4898 | r_lightSourceRadius | for soft-shadow sampling | |||
| 003C48C8 | r_flareSize | scale the flare deforms from the material def | |||
| 003C4904 | r_useExternalShadows | 1 = skip drawing caps when outside the light volume, 2 = force to no caps for testing | |||
| 003C4978 | r_useOptimizedShadows | use the dmap generated static shadow volumes | |||
| 003C49C0 | r_useScissor | scissor clip as portals and lights are processed | |||
| 003C4A04 | r_useCombinerDisplayLists | put all nvidia register combiner programming in display lists | |||
| 003C4A60 | r_useDepthBoundsTest | use depth bounds test to reduce shadow fill | |||
| 003C4AA4 | r_screenFraction | 100 - for testing fill rate, the resolution of the entire screen can be changed | |||
| 003C4B0C | r_demonstrateBug | used during development to show IHV's their problems | |||
| 003C4B58 | r_usePortals | 1 = use portals to perform area culling, otherwise draw everything | |||
| 003C4BAC | r_singleLight | suppress all but one light | |||
| 003C4BD8 | r_singleEntity | suppress all but one entity | |||
| 003C4C04 | r_singleSurface | suppress all but one surface on each entity | |||
| 003C4C40 | r_singleArea | only draw the portal area the view is actually in | |||
| 003C4CB4 | r_orderIndexes | perform index reorganization to optimize vertex use | |||
| 003C4CF8 | r_lightAllBackFaces | light all the back faces, even when they would be shadowed | |||
| 003C4D48 | r_lightWholeMesh | send full index list | |||
| 003C4D74 | r_showPortals | draw portal outlines in color based on passed / not passed | |||
| 003C4DC0 | r_showUnsmoothedTangents | if 1, put all nvidia register combiner programming in display lists | |||
| 003C4E24 | r_showSilhouette | highlight edges that are casting shadow planes | |||
| 003C4E68 | r_showVertexColor | draws all triangles with the solid vertex color | |||
| 003C4EAC | r_showUpdates | report entity and light updates and ref counts | |||
| 003C4EEC | r_showDemo | report reads and writes to the demo file | |||
| 003C4F24 | r_showDynamic | report stats on dynamic surface generation | |||
| 003C4F60 | r_showLightScale | report the scale factor applied to drawing for overbrights | |||
| 003C4FB0 | r_showDefs | report the number of modeDefs and lightDefs in view | |||
| 003C4FF0 | r_showTrace | show the intersection of an eye trace with the world | |||
| 003C5034 | r_showIntensity | draw the screen colors based on intensity, red = 0, green = 128, blue = 255 | |||
| 003C5094 | r_showImages | 1 = show all images instead of rendering, 2 = show in proportional size | |||
| 003C50F0 | r_showSmp | show which end (front or back) is blocking | |||
| 003C5128 | r_showLights | 1 = just print volumes numbers, highlighting ones covering the view, 2 = also draw planes of each volume, 3 = also draw edges of each volume | |||
| 003C51C8 | r_showShadows | 1 = visualize the stencil shadow volumes, 2 = draw filled in | |||
| 003C5218 | r_showShadowCount | colors screen based on shadow volume depth complexity, >= 2 = print overdraw count based on stencil index values, 3 = only show turboshadows, 4 = only show static shadows | |||
| 003C52DC | r_showLightScissors | show light scissor rectangles | |||
| 003C5310 | r_showEntityScissors | show entity scissor rectangles | |||
| 003C5348 | r_showInteractionFrustums | 1 = show a frustum for each interaction, 2 = also draw lines to light origin, 3 = also draw entity bbox | |||
| 003C53D0 | r_showInteractionScissors | 1 = show screen rectangle which contains the interaction frustum, 2 = also draw construction lines | |||
| 003C5454 | r_showLightCount | ||||
| 003C54D4 | r_showViewEntitys | 1 = displays the bounding boxes of all view models, 2 = print index numbers | |||
| 003C5534 | r_showTris | enables wireframe rendering of the world, 1 = only draw visible ones, 2 = draw all front facing, 3 = draw all | |||
| 003C55B0 | r_showSurfaceInfo | show surface material name under crosshair | |||
| 003C55F0 | r_showNormals | draws wireframe normals | |||
| 003C5618 | r_showMemory | print frame memory utilization | |||
| 003C5648 | r_showCull | report sphere and box culling stats | |||
| 003C5678 | r_showInteractions | report interaction generation activity | |||
| 003C56B4 | r_showDepth | display the contents of the depth buffer and the depth range | |||
| 003C5700 | r_showSurfaces | report surface/light/shadow counts | |||
| 003C5734 | r_showPrimitives | report drawsurf/index/vertex counts | |||
| 003C576C | r_showEdges | draw the sil edges | |||
| 003C578C | r_showTexturePolarity | shade triangles by texture area polarity | |||
| 003C57D0 | r_showTangentSpace | shade triangles by tangent space, 1 = use 1st tangent vector, 2 = use 2nd tangent vector, 3 = use normal vector | |||
| 003C5858 | r_showDominantTri | draw lines from vertexes to center of dominant triangles | |||
| 003C58A8 | r_showAlloc | report alloc/free counts | |||
| 003C58D0 | r_showTextureVectors | if > 0 draw each triangles texture (tangent) vectors | |||
| 003C5920 | r_showOverDraw | 1 = geometry overdraw, 2 = light interaction overdraw, 3 = geometry and light interaction overdraw | |||
| 003C5994 | r_lockSurfaces | allow moving the view point without changing the composition of the scene, including culling | |||
| 003C5A08 | r_useEntityCallbacks | if 0, issue the callback immediately at update time, rather than defering | |||
| 003C5A6C | r_showSkel | draw the skeleton when model animates, 1 = draw model with skeleton, 2 = draw skeleton only | |||
| 003C5AD4 | r_jointNameScale | size of joint names when r_showskel is set to 1 | |||
| 003C5B18 | r_jointNameOffset | 0.5.offset of joint names when r_showskel is set to 1 | |||
| 003C5B64 | r_cgVertexProfile | arbvp1, vp20, vp30 | |||
| 003C5B8C | r_cgFragmentProfile | arbfp1, fp30 | |||
| 003C5BB0 | r_debugLineDepthTest | perform depth test on debug lines | |||
| 003C5BEC | r_debugLineWidth | width of debug lines | |||
| 003C5C18 | r_debugArrowStep | 120.step size of arrow cone line rotation in degrees | |||
| 003C5C64 | r_debugPolygonFilled | draw a filled polygon | |||
| 003C5C94 | r_materialOverride | overrides all materials | |||
| 003C5CC0 | r_debugRenderToTexture | ||||
| 003C5CD8 | r_showTextureSize | colors the texture to show the size | |||
| 003C5D10 | r_skipLights | skips lights, to give the designers an accurate poly count without lights | |||
| 003C5D6C | r_skipBeams | 1 = skip all beam systems | |||
| 003C5D94 | r_glowAlpha | 0.55 - start alpha used when blurring the glow texture | |||
| 003C5DD8 | r_glowAlphaChange | 0.85 - alpha change used when blurring the glow texture | |||
| 003C5E28 | r_glowSteps | 8 - steps used when blurring the glow texture | |||
| 003C5E64 | r_glowStrength | strength when drawing the final glow texture on screen if true, skip drawing the glow overlay | |||
| 003C5ED4 | r_normalizeBumpmap | per pixel renormalization of bumpmaps | |||
| 003C5F10 | r_cubemapNormalize | use cubemaps to normalize | |||
| 003C5F40 | r_correctSpecular | per pixel half angle calculation | |||
| 003C5F78 | r_alphaToCoverage | alpha to coverage transparency | |||
| 003C5FAC | r_shaderLevel | level of shaders to use | |||
| 003C5FD4 | r_showBatchSize | color tris based on batch size - 0 = normal, 1 = faster with tangents transformed, 2 = use single weight simple skinning | |||
| 003C60BC | r_pbufferRender | render to a pbuffer for hi-res screenshots | |||
| 003C60F8 | r_pbufferRenderW | 3200 - pbuffer width | |||
| 003C6124 | r_pbufferRenderH | 2400 - pbuffer height | |||
| 003B6164 | stoprecording | ||||
| 003B6174 | disconnect | died | |||
| 003B6188 | devmap | loads a map in developer mode | |||
| 003B6220 | si_map | ||||
| 003B6229 | serverMapRestart | ||||
| 003B6261 | cdemo | %i seconds of game, replayed in %5.1f seconds…minute %i took %3.1f seconds | |||
| 003B6420 | hitch | hitches the game | |||
| 003B643C | promptKey | prompt and sets the CD Key | |||
| 003B6464 | rescanSI | internal - rescan serverinfo cvars and tell game | |||
| 003B64A4 | takeViewNotes2 | extended take view notes | |||
| 003B64D0 | takeViewNotes | take notes about the current map from the current view | |||
| 003B6518 | loadGame | loads a game | |||
| 003B6534 | saveGame | saves a game | |||
| 003B6550 | testGUI | tests a gui | |||
| 003B6564 | demoShot | writes a screenshot for a demo | |||
| 003B6590 | togglehelp | display in-game help | |||
| 003B65B4 | displayE3Loading | display demo loading banner | |||
| 003B65E4 | resetE3Demos | reset e3 demo sequence | |||
| 003B6624 | compressDemo | compresses a demo file | |||
| 003B664C | aviDemo | writes AVIs for a demo | |||
| 003B666C | timeDemoQuit | times a demo and quits | |||
| 003B6694 | timeDemo | times a demo | |||
| 003B66B0 | playDemo | plays back a demo | |||
| 003B66D0 | stopRecording | stops demo recording | |||
| 003B66F8 | recordDemo | records a demo | |||
| 003B6714 | aviGame | writes AVIs for the current game | |||
| 003B6740 | aviCmdDemo | writes AVIs for a command demo | |||
| 003B676C | exitCmdDemo | exits a command demo | |||
| 003B6790 | timeCmdDemo | times a command demo | |||
| 003B67B4 | playCmdDemo | plays back a command demo | |||
| 003B67DC | writeCmdDemo | writes a command demo | |||
| 003B6804 | testmap | tests a map | |||
| 003B6844 | writePrecache | writes precache commands | |||
| 003B6898 | com_showAngles | ||||
| 003B68A8 | com_minTics | ||||
| 003B68B4 | com_showTics | ||||
| 003B68C4 | com_fixedTic | ||||
| 003B68D4 | com_showDemo | ||||
| 003B68E4 | com_skipGameDraw | ||||
| 003B68F8 | com_aviDemoSamples | 16 | |||
| 003B6910 | com_aviDemoWidth | 256 | |||
| 003B6928 | com_aviDemoHeight | ||||
| 003B693C | com_aviDemoTics | ||||
| 003B694C | com_wipeSeconds | ||||
| 003B695C | com_guid | ||||
| 003B6968 | g_subtitles | Display subtitles | |||
| 003B6988 | com_demoPaused | ||||
| 003B6998 | g_levelLoadMusic | play music during level loads | |||
| 003B69CC | g_deathwalk | Allow deathwalk map appending | |||
| 003B69F8 | e3_demoIndex | ||||
| 003B6A08 | game_list | ||||
| 003B6A2C | noIntro | ||||
| 003B6A34 | playIntro | ||||
| 003B6A40 | guisounds_menu_music | ||||
| 003B6A58 | gui_sv_punkbuster | ||||
| 003B6A6C | gui_cl_punkbuster | ||||
| 003B5180 | e3_demoshotrelease | ||||
| 003B5194 | e3_demofadeoutrate | ||||
| 003B51A8 | e3_demofadeinrate | ||||
| 003B56D0 | e3_numdemos | Bad render demo token | |||
| 003B5710 | e3_demomode | AdvanceDemo | |||
TO DO
- Clean up/add/remove console commands.
developers/human_head_studios/prey.txt · Last modified: 2023/03/26 11:10 by eezzzz
Page Tools
Except where otherwise noted, content on this wiki is licensed under the following license: CC Attribution-Share Alike 4.0 International
